Briggs & Stratton · Portable generator
5500 Watt
CARB Compliant
Visual spec gallery
Core specifications, simplified.
6,250 starting watts
Starting wattage is the short surge available for motor-driven loads. Size the generator around running load plus the largest expected startup surge.
Manufacturer runtime
Up to 12 hrs at 50% load
Engine
Briggs & Stratton 389cc
Fuel tank
7.5 gal
190.0 lbs
Unit weight
28.4 × 27.2 × 28.0 in
L × W × H
- Consumer warranty
- 2 Year Limited
- Commercial warranty
- 1 Year Limited
- Price
- See current dealer offers
Starting
Recoil
Power system
Automatic voltage regulation
CO protection
CO Guard automatic shutdown
Low-oil protection
Automatic shutdown
Electrical output: 120 / 240V.
Official product gallery
Product views and feature graphics.
These Briggs & Stratton images show product angles, controls, safety systems, mobility features, engine details, and manufacturer feature callouts.
Complete specifications
Every official field, organized.
Specifications and feature descriptions come directly from the current Briggs & Stratton U.S. model page. Some pages group multiple catalog variants, so differing values are shown together.
Manufacturer overview
Keep your family connected and home essentials running during a power outage with this Briggs & Stratton® 5500W Home Series generator. You can power household essentials with a transfer switch through the 120C/240V, 30A outlet or outdoor tools with the four 120V GFCI outlets. Its easy-maneuvering design also makes it great for home improvement projects and recreational activities.
Official specifications
- Start Type
- Recoil
- Length (in)
- 28.4
- Width (in)
- 27.2
- Height (in)
- 28.0
- Weight (lbs)
- 190.0
- Muffler
- Super Lo-Tone
- Engine Brand
- Briggs & Stratton
- Consumer Warranty
- 2 Year Limited
- Commercial Warranty
- 1 Year Limited
- Engine Displacement
- 389.0
- Fuel Tank Capacity
- 7.5
- Running Watts
- 5500.0
- Starting Watts
- 6875.0
- Volts
- 120 / 240
- Run Time
- Up to 12 hrs at 50% load
- Alternator
- Power Surge
- Low Oil Shutdown
- Yes
- Fuel Gauge
- Yes
- Hour Meter
- Yes
- Automatic Voltage Regulation
- Yes
- Spark Arrestor
- Yes
- Wheel Type
- Never-Go-Flat
Official feature details
CO Guard ® Carbon Monoxide Shutdown Technology
Advanced detection. Added protection. This patent-pending technology shuts down your generator when harmful levels of carbon monoxide accumulate in the generator's operating area.

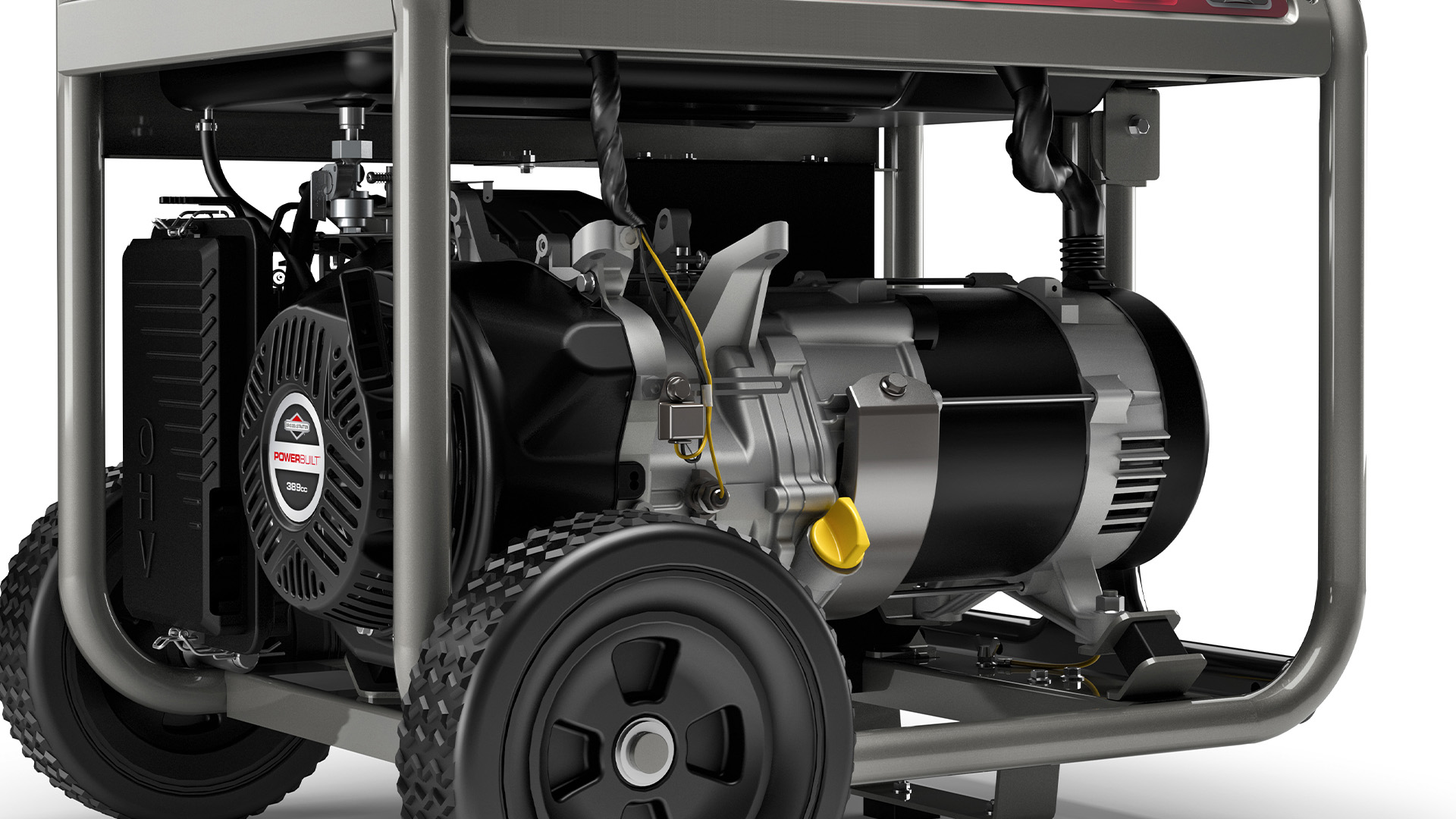

Briggs & Stratton PowerBuilt™ 389cc OHV Engine
Durable, easy starting engine features Overhead Valve (OHV) technology to run cooler and last longer; ideal for portable generators.
12 Hour Run Time (at 50% load)
Long run time and less refueling of the 7.5 gallon metal fuel tank.

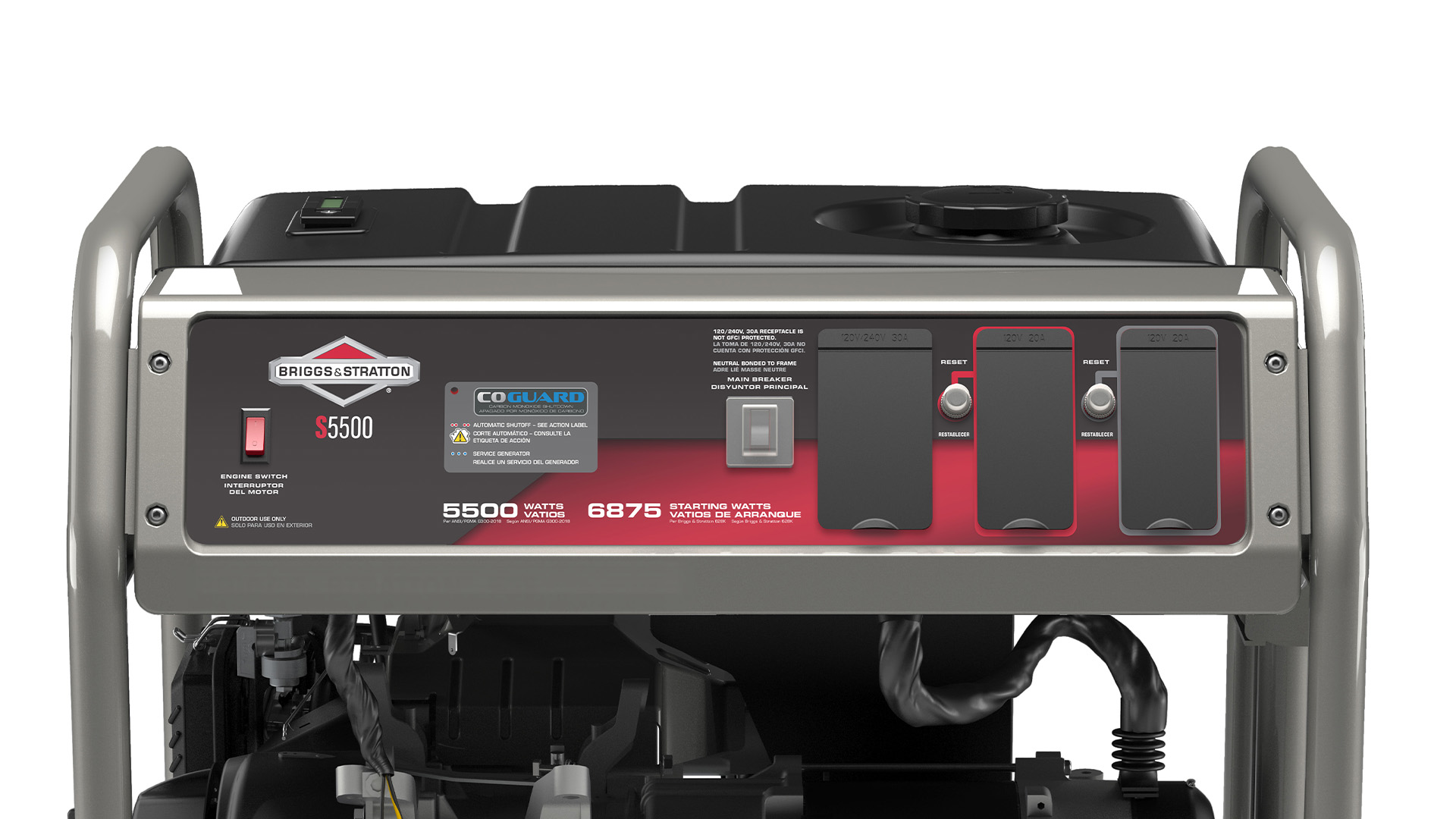

(4) GFCI outlets, (2) Household outlets and (1) 120V/240V, 30A Locking Outlet
Includes rubber outlet covers to protect against the elements.

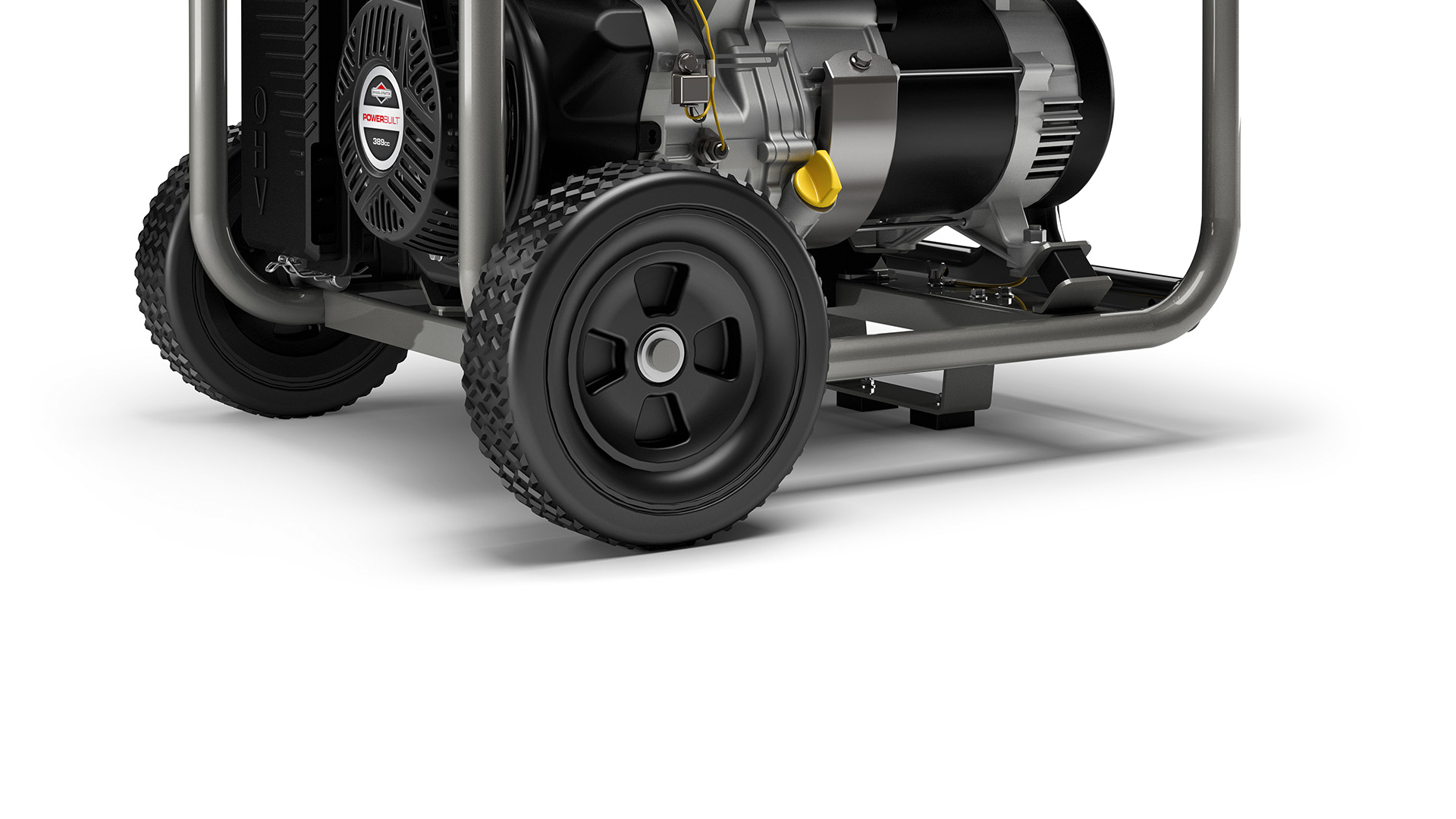

Never-Go-Flat Wheels & Fold-Up Handle
Allow for easy transportation and mobility.

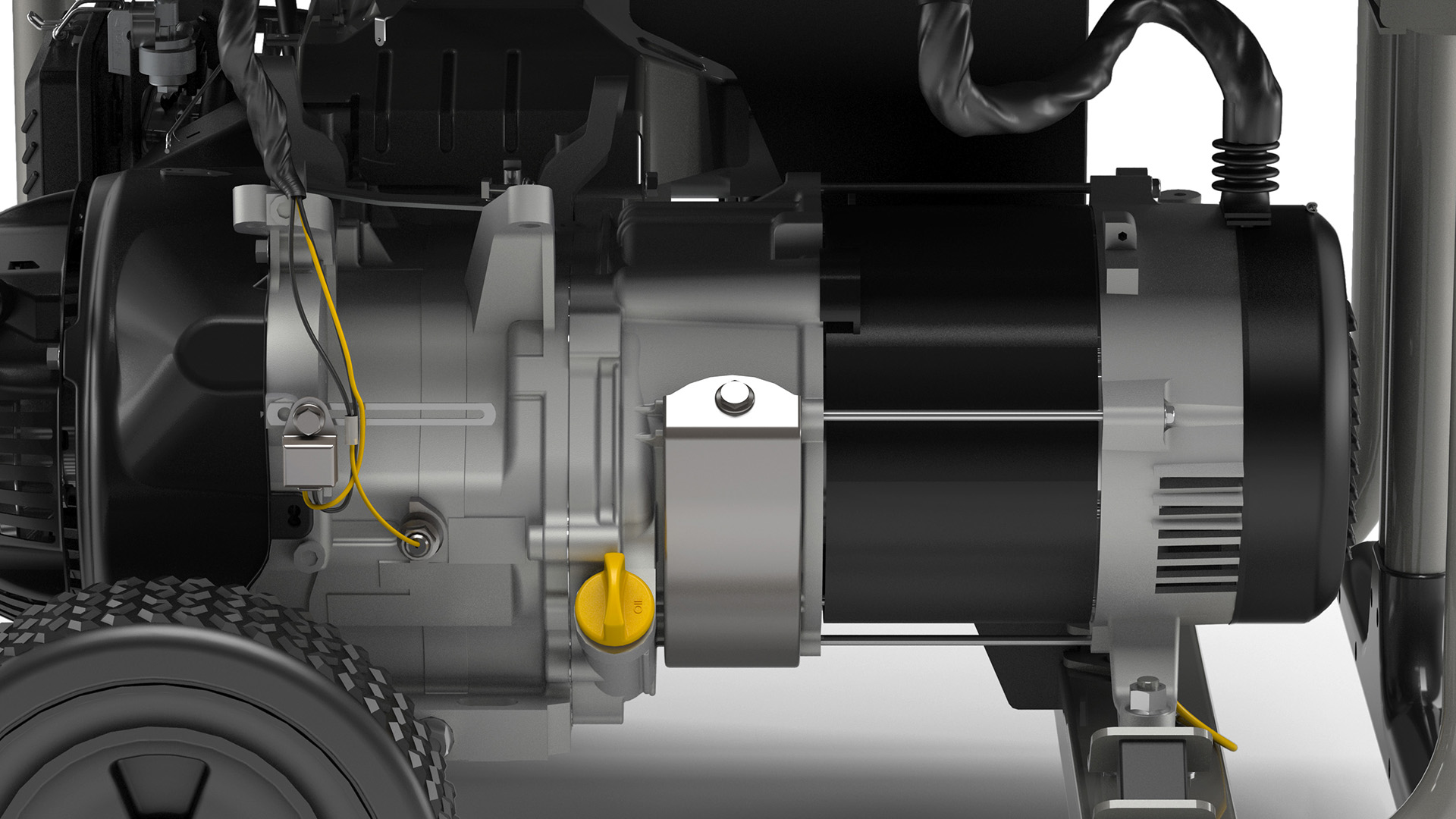

Power Surge™ Alternator
Produces a short surge of power needed to start large motor-driven appliances and tools simultaneously.
Best-fit uses
- Home backup
- Camping & recreation
Standout features
- Power Surge alternator
- CO Guard shutdown protection
