Briggs & Stratton · Portable generator
5750 Watt
Ideal for home improvement projects and recreational activities
Visual spec gallery
Core specifications, simplified.
7,185 starting watts
Starting wattage is the short surge available for motor-driven loads. Size the generator around running load plus the largest expected startup surge.
Manufacturer runtime
12 hrs at 50% load
Engine
Briggs & Stratton 389cc
Fuel tank
7.5 gal
190.0 lbs
Unit weight
28.4 × 27.2 × 28.0 in
L × W × H
- Consumer warranty
- 2 Year Limited
- Commercial warranty
- 1 Year Limited
- Price
- See current dealer offers
Starting
Recoil
Power system
Automatic voltage regulation
CO protection
CO Guard automatic shutdown
Low-oil protection
Automatic shutdown
Electrical output: 120 / 240V.
Official product gallery
Product views and feature graphics.
These Briggs & Stratton images show product angles, controls, safety systems, mobility features, engine details, and manufacturer feature callouts.
Complete specifications
Every official field, organized.
Specifications and feature descriptions come directly from the current Briggs & Stratton U.S. model page. Some pages group multiple catalog variants, so differing values are shown together.
Manufacturer overview
Keep your lights on, your food cold, your family connected and more during a power outage with this Briggs & Stratton 5750 watt portable generator. It's easy-maneuvering design also makes it great for home improvement projects and recreational activities. Its Briggs & Stratton engine is rugged and reliable to keep delivering power even if a power outage lasts several days. For added protection, CO Guard® technology shuts down the generator when harmful levels of CO are detected around the generator's operating area.
Official specifications
- Start Type
- Recoil
- Length (in)
- 28.4
- Width (in)
- 27.2
- Height (in)
- 28.0
- Weight (lbs)
- 190.0
- Muffler
- Super Lo-Tone
- Engine Brand
- Briggs & Stratton
- Consumer Warranty
- 2 Year Limited
- Commercial Warranty
- 1 Year Limited
- Engine Displacement
- 389.0
- Fuel Tank Capacity
- 7.5
- Running Watts
- 5750.0
- Starting Watts
- 7185.0
- Volts
- 120 / 240
- Run Time
- 12 hrs at 50% load
- Alternator
- Power Surge
- Low Oil Shutdown
- Yes
- Fuel Gauge
- Yes
- Hour Meter
- Yes
- Automatic Voltage Regulation
- Yes
- Spark Arrestor
- Yes
- Wheel Diameter (in)
- 10.0
- Wheel Type
- Never-Go-Flat
Official feature details
CO Guard ® Carbon Monoxide Shutdown Technology
Advanced detection. Added protection. This patent-pending technology shuts down your generator when harmful levels of carbon monoxide accumulate in the generator's operating area.

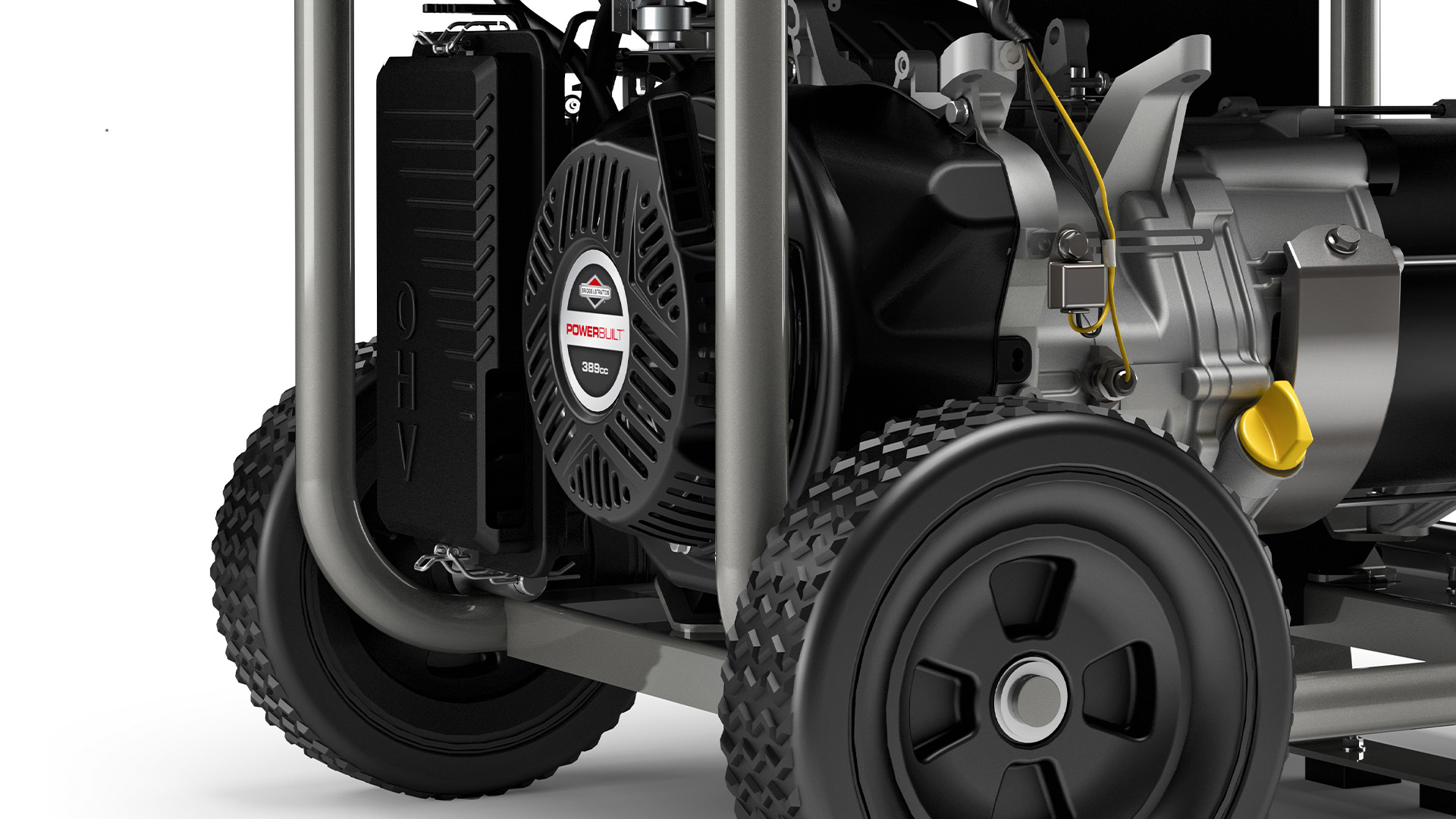

Briggs & Stratton OHV Engine, 389cc
Provides reliable power whenever you need it most.

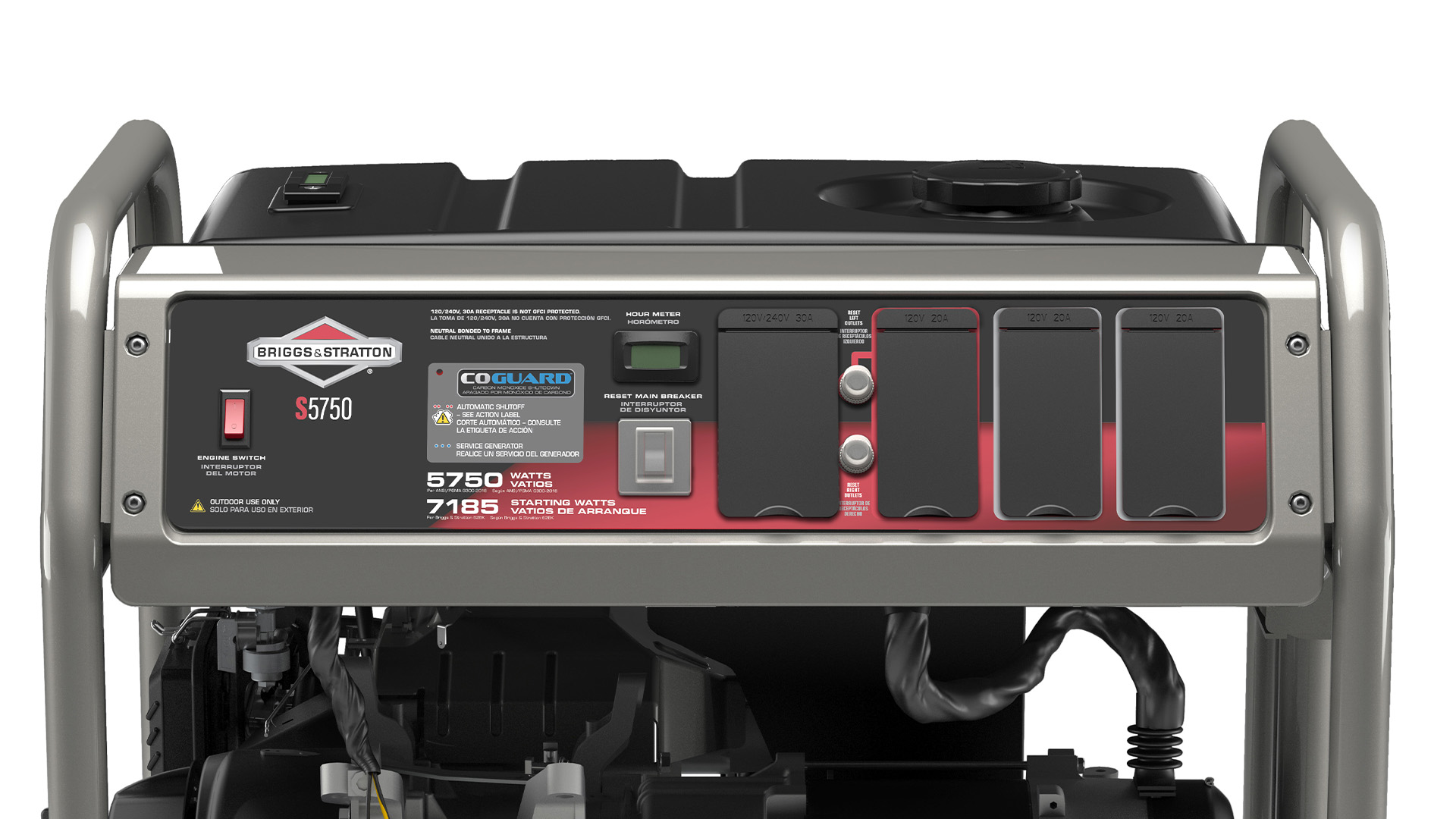

Multi-Featured Control panel with Circuit Breaker Protection
Has (4) GFCI outlets, (2) household outlets and (1) 120/240V, 30A locking outlet for your portable power needs. Includes rubber outlet covers to protect against the elements.
Up to 12 Hours of Run Time at 50% Load
A metal 7.5 gallon tank for more durability and less refueling.

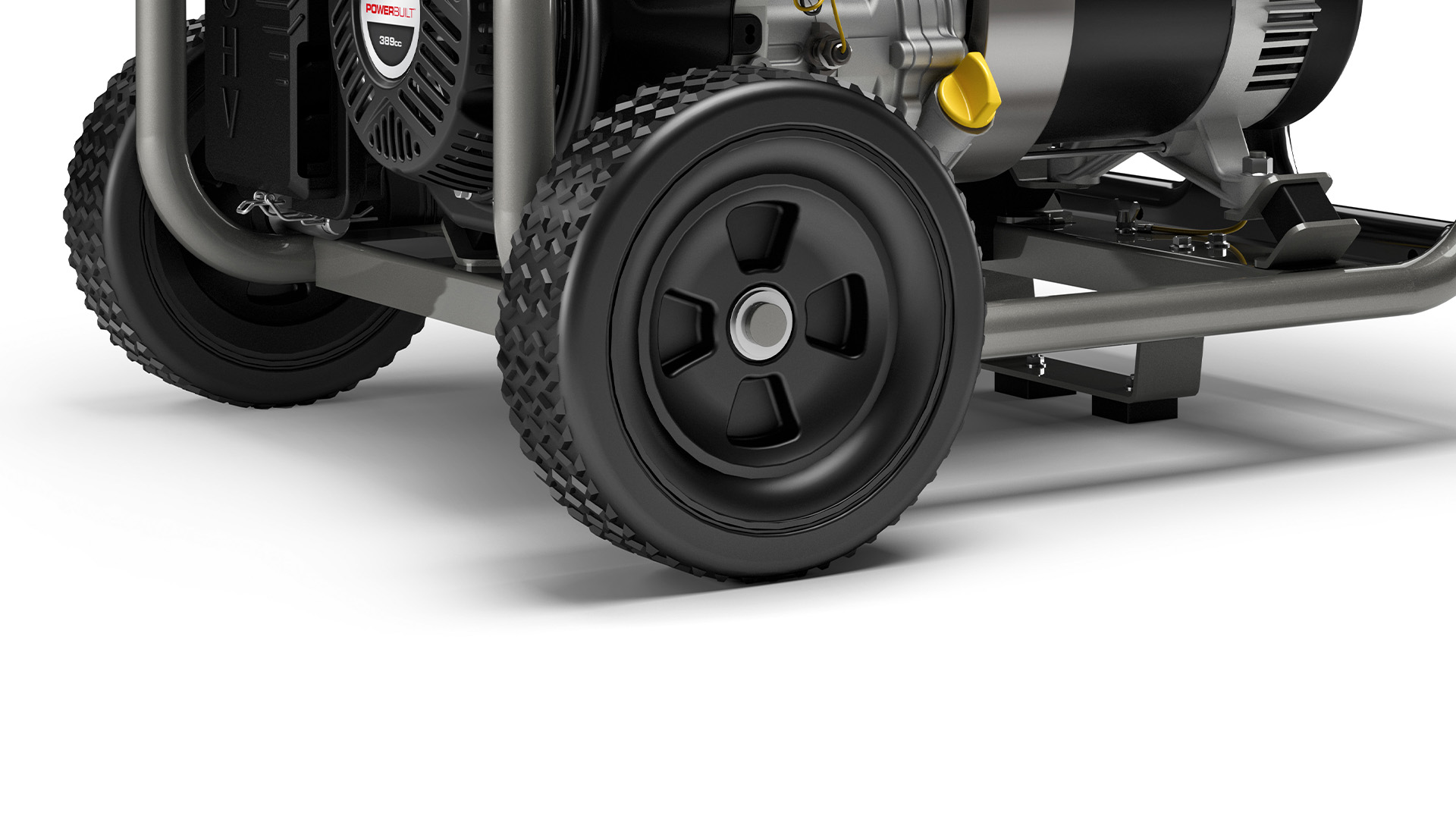

Easy, All-Terrain Maneuverability
Featuring 10" Never-Go-Flat wheels and a fold-up handle.
Best-fit uses
- Home backup
- Camping & recreation
Standout features
- Power Surge alternator
- CO Guard shutdown protection
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
