Champion · Inverter generator
100809
4,000 starting watts and 3,000 running watts with gasoline operation · 10 h. · 64 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 4,000 starting watts
4,000W starting
Manufacturer runtime
10 h.
Operating volume
64 dB(A)
Energy source
Gasoline
1.54 gal. fuel capacity
48.1 lb.
Unit weight
17.9 in. × 11.7 in. × 19.7 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Inverter output
Protection

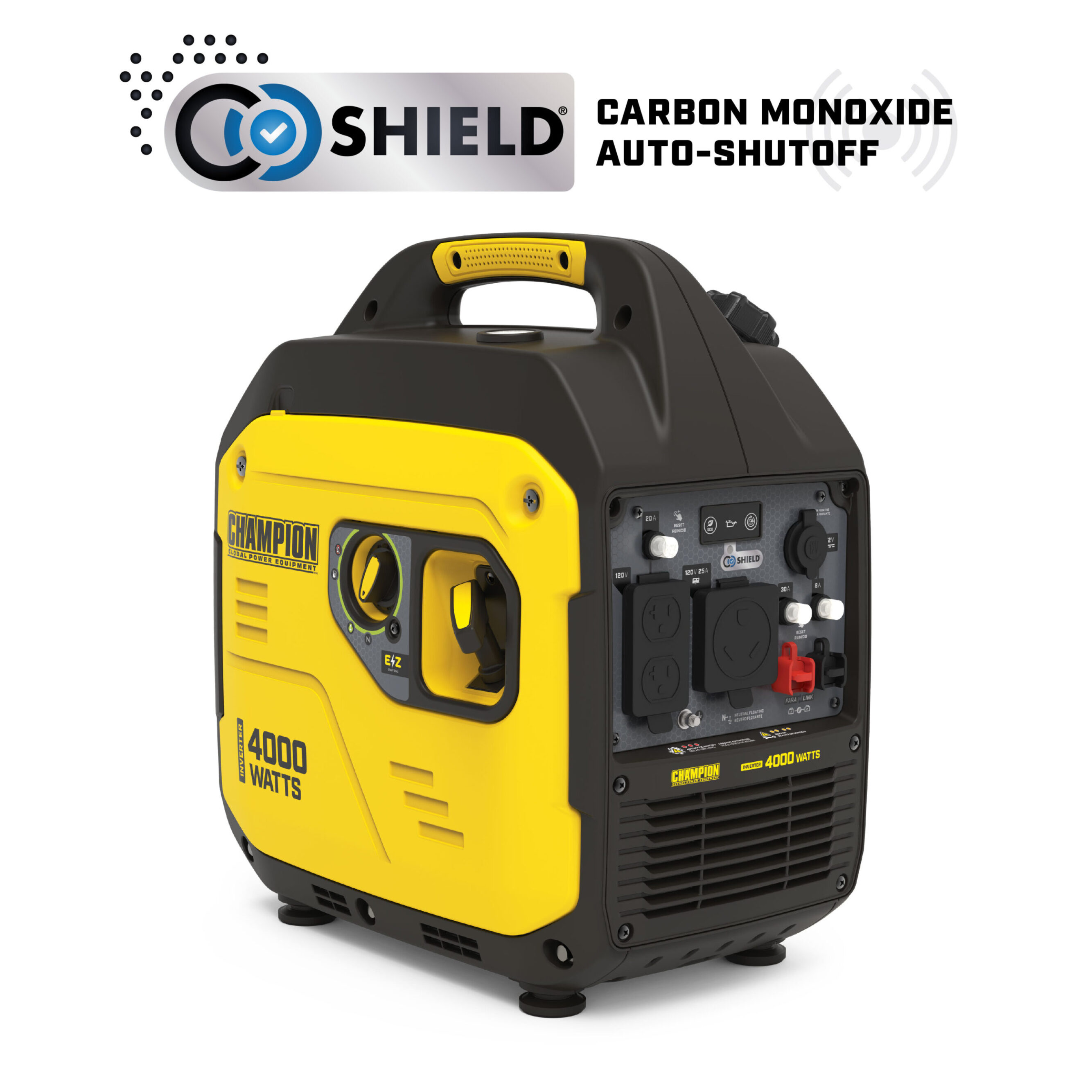

CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Lightweight At less than 49 pounds, this inverter is one of the lightest 4000-watt inverters in the industry Quiet Operation 64 dBA from 23 feet is perfect for camping, tailgating or to backup a few home essentials, with 4000 starting watts, 3000 running watts and up to 10 hours run time, plus features CO Shield® carbon monoxide auto shutoff system Parallel Ready The optional parallel kit enables this inverter to connect with another 4000-watt Champion inverter to double your output power Clean Power for Sensitive Electronics Includes a 120V 25A TT-30R outlet, a 120V 20 A household duplex outlet (5-20R) with clean electricity (less than 3% THD), plus a 12V automotive-style outlet, and Parallel outlets Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 100809 4000-Watt Portable Inverter Generator with CO Shield® is ideal for camping, tailgating, powering items around the RV or providing backup for a few basics. This unit is not recommended for emergency home backup. Weighing less than 49 pounds, this light model is one of the lightest 4000-watt inverters in the industry. Than
Specifications
- Portable Generator Technology
- CO Shield®, ParaLINK®
- Gasoline Starting Watts
- 4000W
- Gasoline Running Watts
- 3000W
- Gasoline Starting Amps at 120V
- 33.3A
- Gasoline Running Amps at 120V
- 25A
- Volts
- 120
- Frequency
- 60Hz
- AC Receptacles

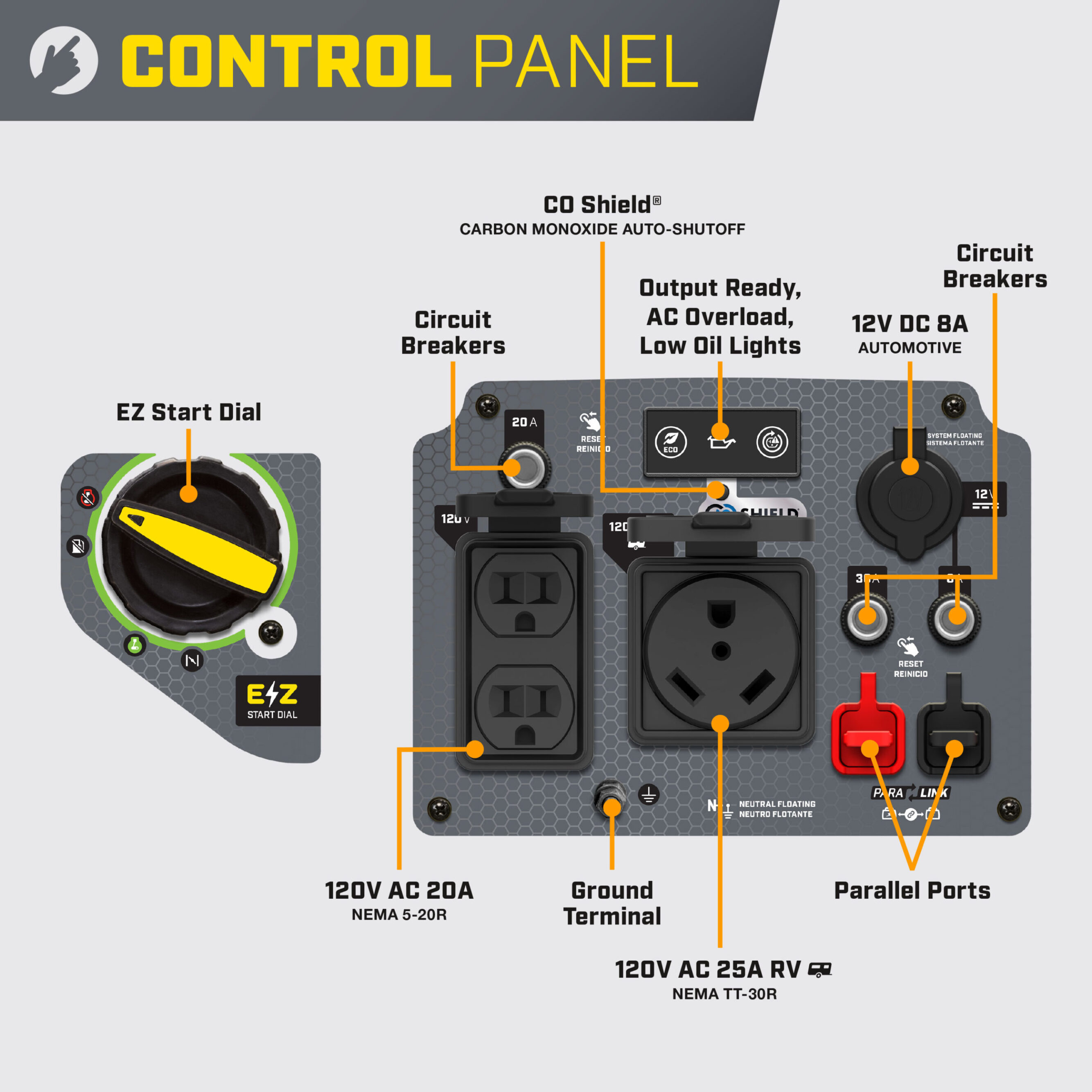

- (1) 120V 20A Duplex (5-20R), (1) 120V 25A (TT-30R), Parallel
- DC Operation
- Yes
- DC Receptacles
- (1) 12V DC Automotive
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 10 h.
- Noise Level
- 64 dB(A)
- Inverter
- Enclosed
- Parallel Capability
- Yes
- Voltmeter
- No
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 149cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 1.54 gal.
- Gasoline Tank Material
- Plastic
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.5 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- No
- PGMA Compliant
- G300-2018
- EPA Certified
- Yes
Measurements
- Length
- 17.9 in.
- Width
- 11.7 in.
- Height
- 19.7 in.
- Weight
- 48.1 lb.
Best-fit uses
- Camping and tailgating
- Electronics and small appliances
- Light emergency power
Standout features
- Clean inverter power
- CO Shield®, ParaLINK®
- Recoil start
- Parallel capable
- 3 Year Warranty
