Champion · Portable generator
200970
4,550 starting watts and 3,650 running watts with gasoline, propane operation · 14 h. · 68 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 4,550 starting watts
4,550W starting
4,100W starting
Manufacturer runtime
14 h.
Operating volume
68 dB(A)
Energy source
Gasoline, Propane (LPG)
4.7 gal. fuel capacity
110 lb.
Unit weight
23.4 in. × 19.7 in. × 19.8 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Conventional alternator
Protection
CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz

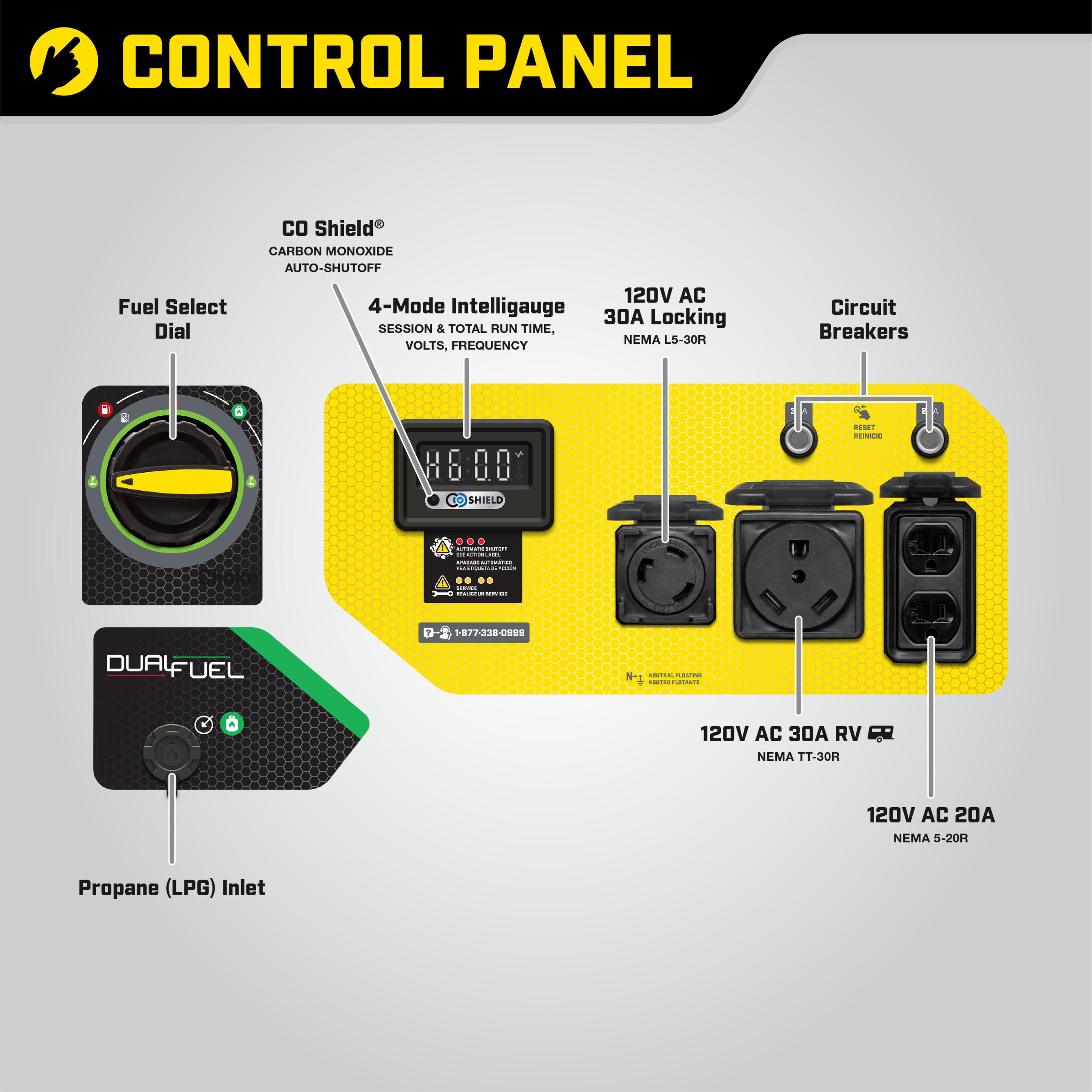

120V 20A Duplex (5-20R), 120V 30A (TT-30R), 120V 30A Locking (L5-30R)
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

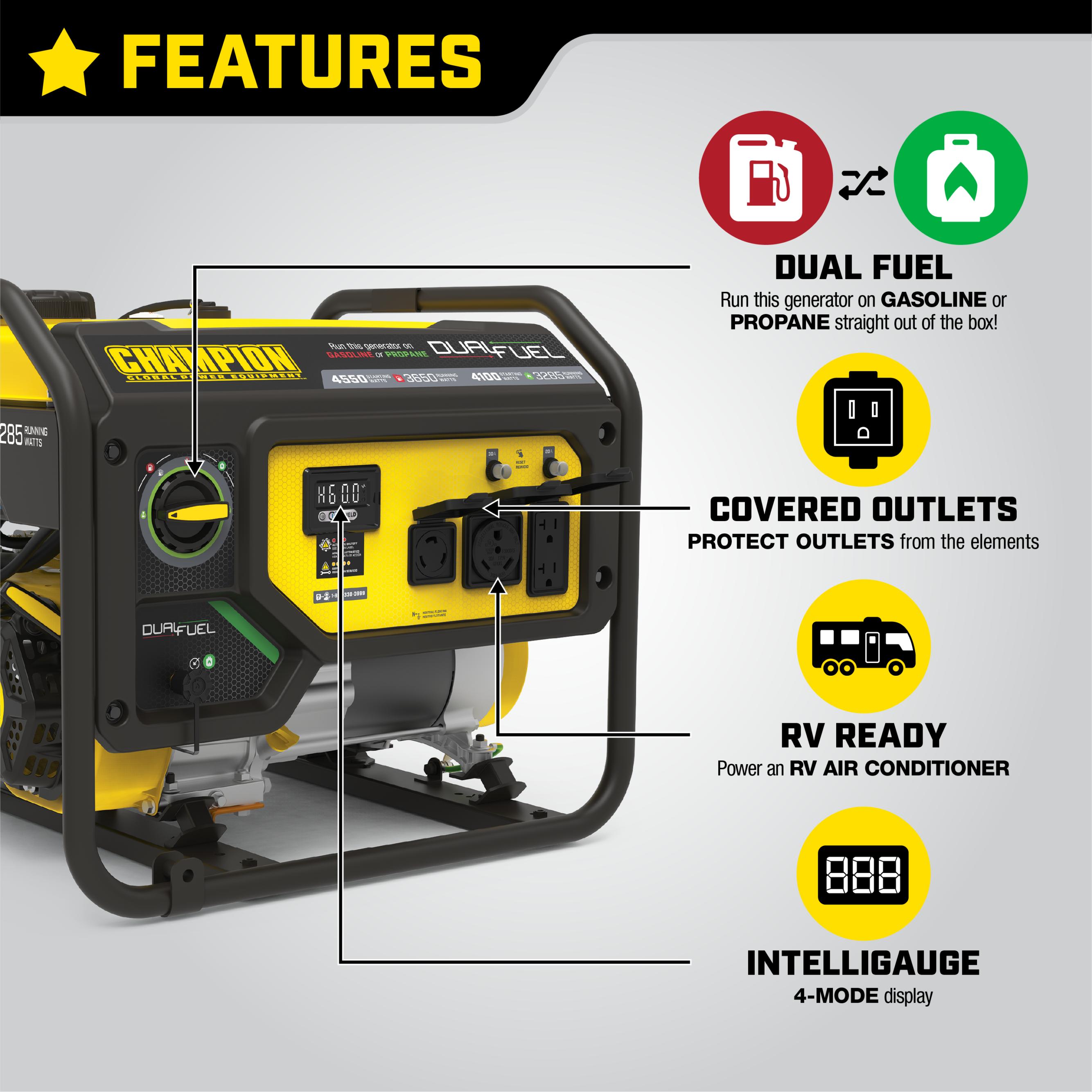

Features Dual Fuel Operate your 3650-watt portable generator right out of the box on either gasoline or propane, plus the unit holds 0.6-quarts of oil (included) and has a low oil shut-off switch Covered outlets 120V 30A (TT-30R) RV outlet, a 120V 30A outlet (L5-30R), and a 120V 20A household duplex outlet (5-20R). Intelligauge Keep track of voltage, frequency, session run time, and total runtime hours to easily monitor output and track maintenance intervals, plus features CO Shield® carbon monoxide auto shutoff system Powerful At 4550 starting watts and 3650 running watts on gasoline and 4100 starting watts and 3285 running watts on propane, trust Volt Guard™ built-in surge protector prevents overloads and keeps your appliances and equipment safe. Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 4650-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials. Champion’s EZ Start Dial makes getting started quick and easy. This unit features Cold Start Technology, Extended Run Time, a
Specifications
- Portable Generator Technology
- Dual Fuel, CO Shield®
- Gasoline Starting Watts
- 4550W
- Gasoline Running Watts
- 3650W
- Propane Starting Watts
- 4100W
- Propane Running Watts
- 3285W
- Gasoline Starting Amps at 120V
- 37.9A
- Gasoline Running Amps at 120V
- 30.4A
- Propane Starting Amps at 120V
- 34.2A
- Propane Running Amps at 120V
- 27.4A
- Volts
- 120
- Frequency
- 60Hz
- Receptacles
- 120V 20A Duplex (5-20R), 120V 30A (TT-30R), 120V 30A Locking (L5-30R)
- DC Operation
- No
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 14 h.
- Propane Run Time at 1/2 Load
- 10.5 h.
- Noise Level
- 68 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 224cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline, Propane (LPG)
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.6 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- No
- PGMA Compliant
- G300-2018
- EPA Certified
- Yes
- CARB Compliant
- Yes
Measurements
- Length
- 23.4 in.
- Width
- 19.7 in.
- Height
- 19.8 in.
- Weight
- 110 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Dual-fuel flexibility
- Dual Fuel, CO Shield®
- Recoil start
- 3 Year Warranty
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
