Champion · Inverter generator
201066
6,500 starting watts and 5,250 running watts with gasoline operation · 13.5 h. · 69 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 6,500 starting watts
6,500W starting
Manufacturer runtime
13.5 h.
Operating volume
69 dB(A)
Energy source
Gasoline
4.3 gal. fuel capacity
123 lb.
Unit weight
26.6 in. × 25.5 in. × 24.6 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Inverter output
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.

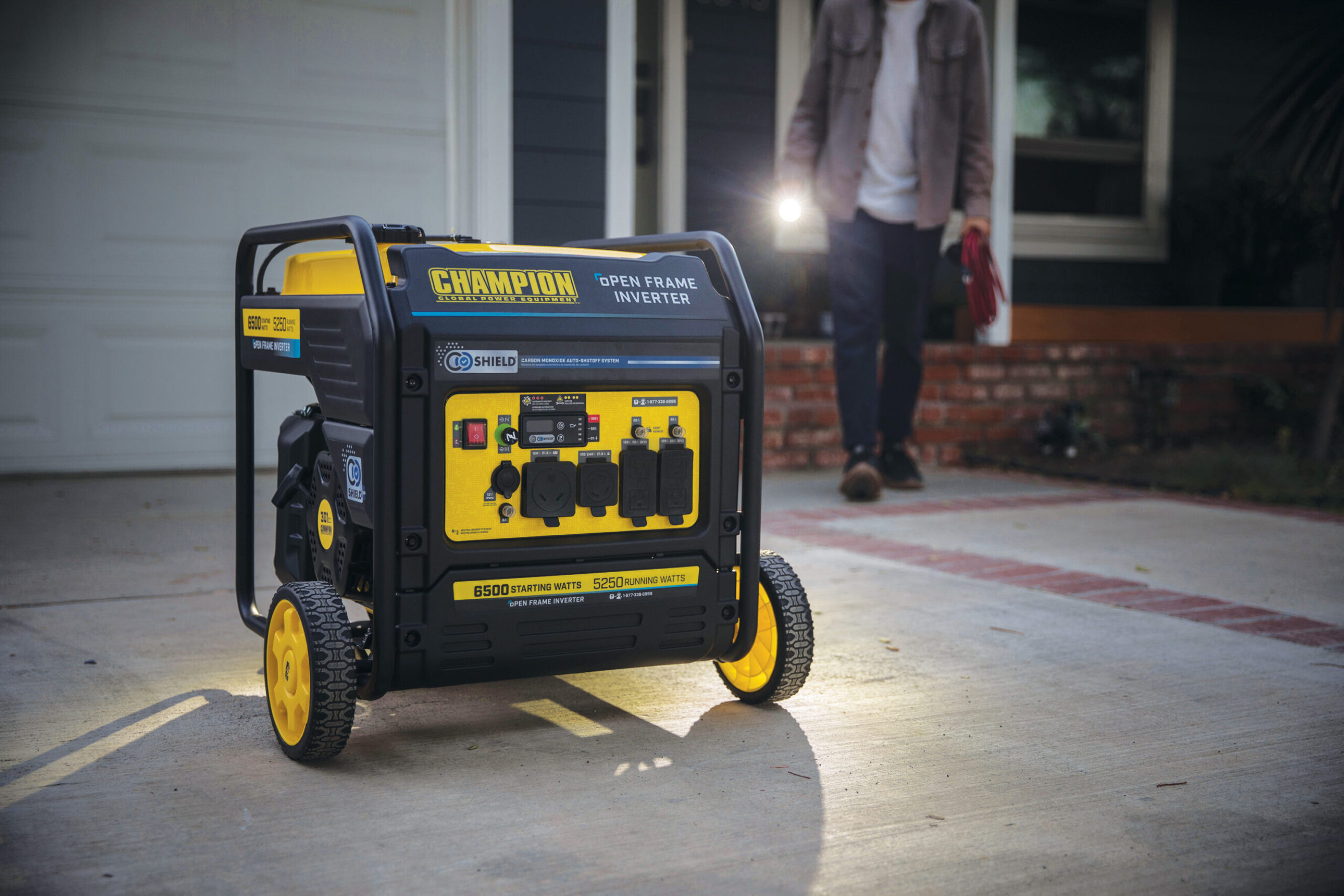

Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

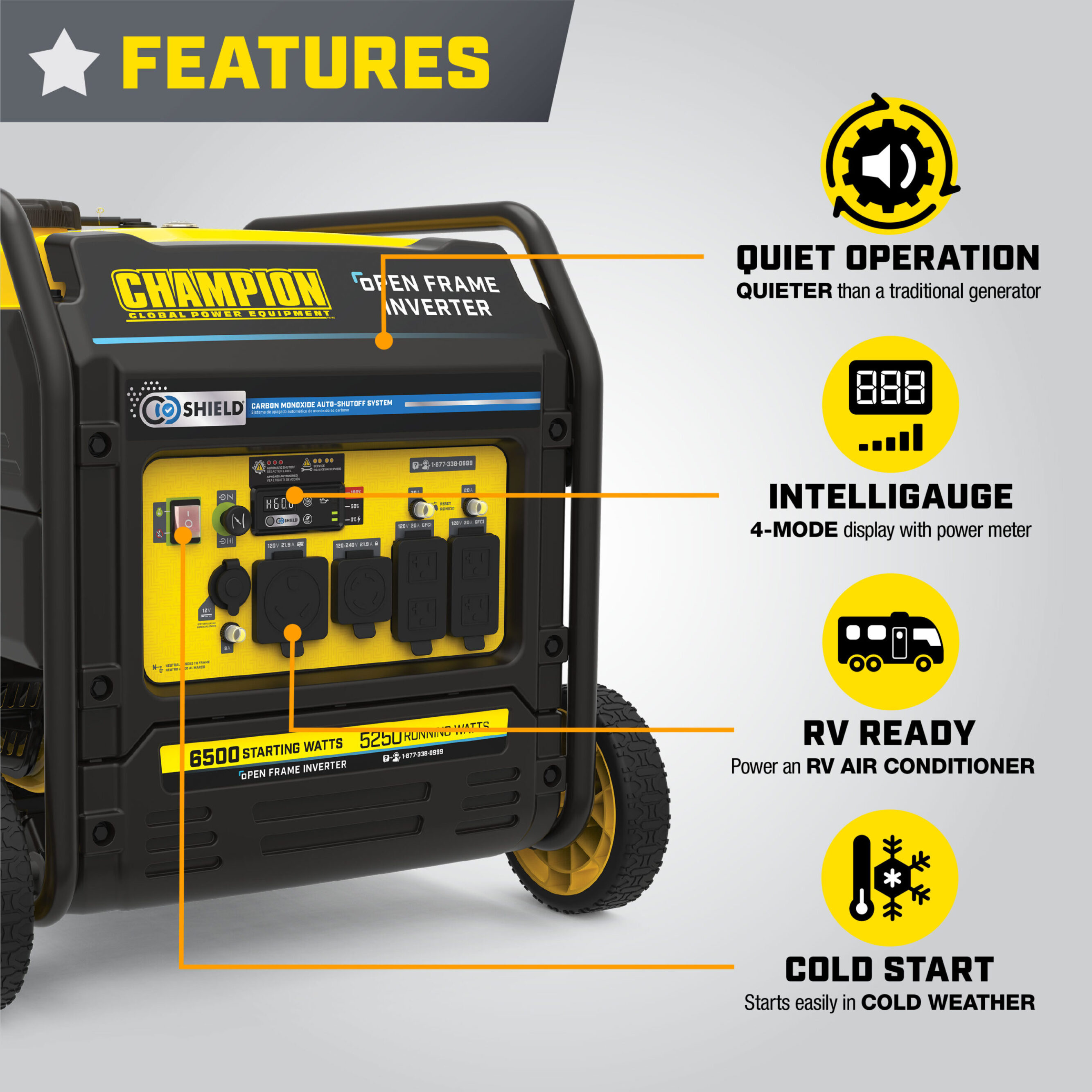

Features Advanced Design 50% quieter and 20% lighter than a traditional 5250-watt generator, plus features CO Shield® carbon monoxide auto shutoff system, Economy Mode saves fuel and extends engine life Quiet Technology and Extended Run Time 69 dBA is great for RVs, tailgating, your next project or home backup, with 6500 starting watts and 5250 running watts for up to 13.5 hours run time on gasoline Clean electricity for sensitive electronics RV Ready with a 120V 21.9A RV, a 120/240V 21.9A locking outlet, two GFCI 120V 20A duplex outlets with clean power (less than 3% THD), plus a 12V automotive-style outlet, and a handy dual port USB adapter Intelligauge with Power Meter Monitors voltage, frequency and operating hours Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 6500-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life. First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters.
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 6500W
- Gasoline Running Watts
- 5250W
- Gasoline Starting Amps at 120V
- 54.2A
- Gasoline Starting Amps at 240V
- 27.1A
- Gasoline Running Amps at 120V
- 43.8A
- Gasoline Running Amps at 240V
- 21.9A
- Volts
- 120/240
- Frequency
- 60Hz
- AC Receptacles
- (1) 120/240V 30A Locking (L14-30R), (1) 120V 21.9A (TT-30R), (2) 120V 20A GFCI Duplex (5-20R)
- DC Operation
- Yes
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 13.5 h.
- Noise Level
- 69 dB(A)
- Inverter
- Open Frame
- Parallel Capability
- No
- Voltmeter
- Intelligauge with Power Meter
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 301cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.3 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 1.1 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 8 in.
- PGMA Compliant
- G300-2018
- EPA Certified
- Yes
- CARB Compliant
- Yes

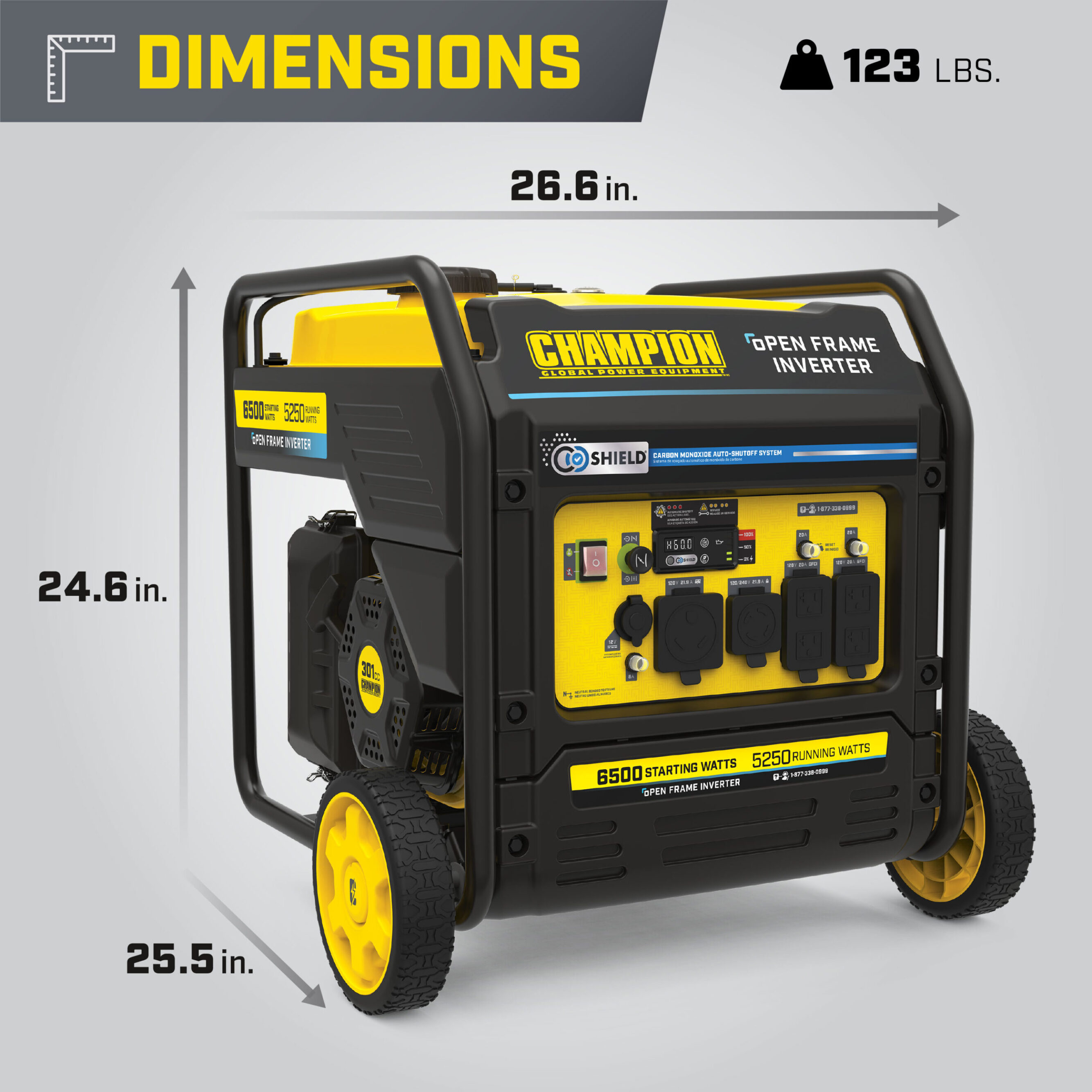

Measurements
- Length
- 26.6 in.
- Width
- 25.5 in.
- Height
- 24.6 in.
- Weight
- 123 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Clean inverter power
- CO Shield®
- Recoil start
- 3 Year Warranty
