Champion · Inverter generator
201176
9,000 starting watts and 7,250 running watts with gasoline, propane, natural gas operation · 14 h. · 72 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 9,000 starting watts
9,000W starting
9,000W starting
9,000W starting
Manufacturer runtime
14 h.
Operating volume
72 dB(A)
Energy source
Gasoline, Propane (LPG), Natural Gas (NG)
4.32 gal. fuel capacity
165.8 lb.
Unit weight
26.6 in. × 25.5 in. × 25.4 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric
Power system
Inverter output
Protection

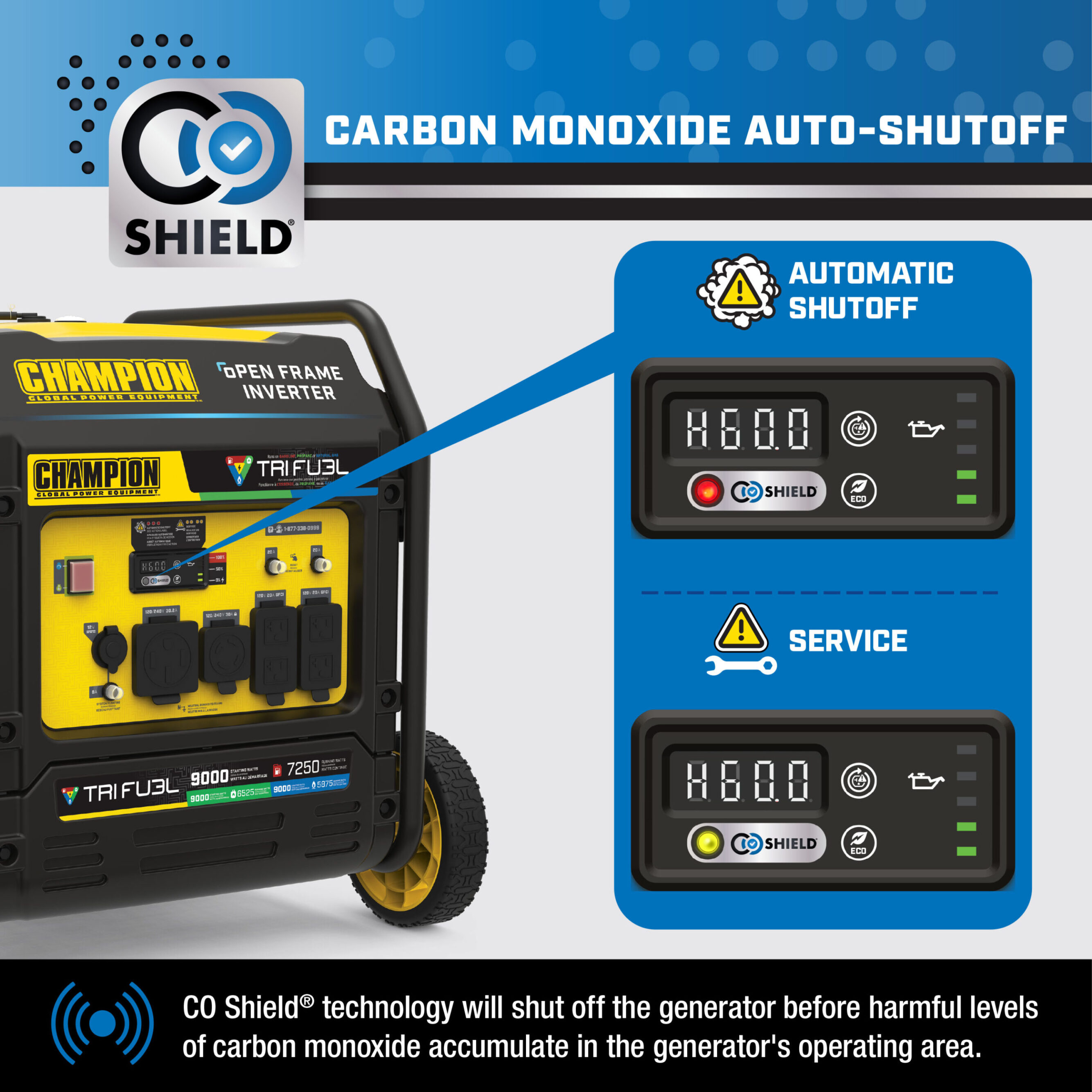

CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
GFCI 120V Duplex (5-20R) (2), 12V DC Automotive, 120/240V Locking (L14-30R), 120/240V (14-50R)
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

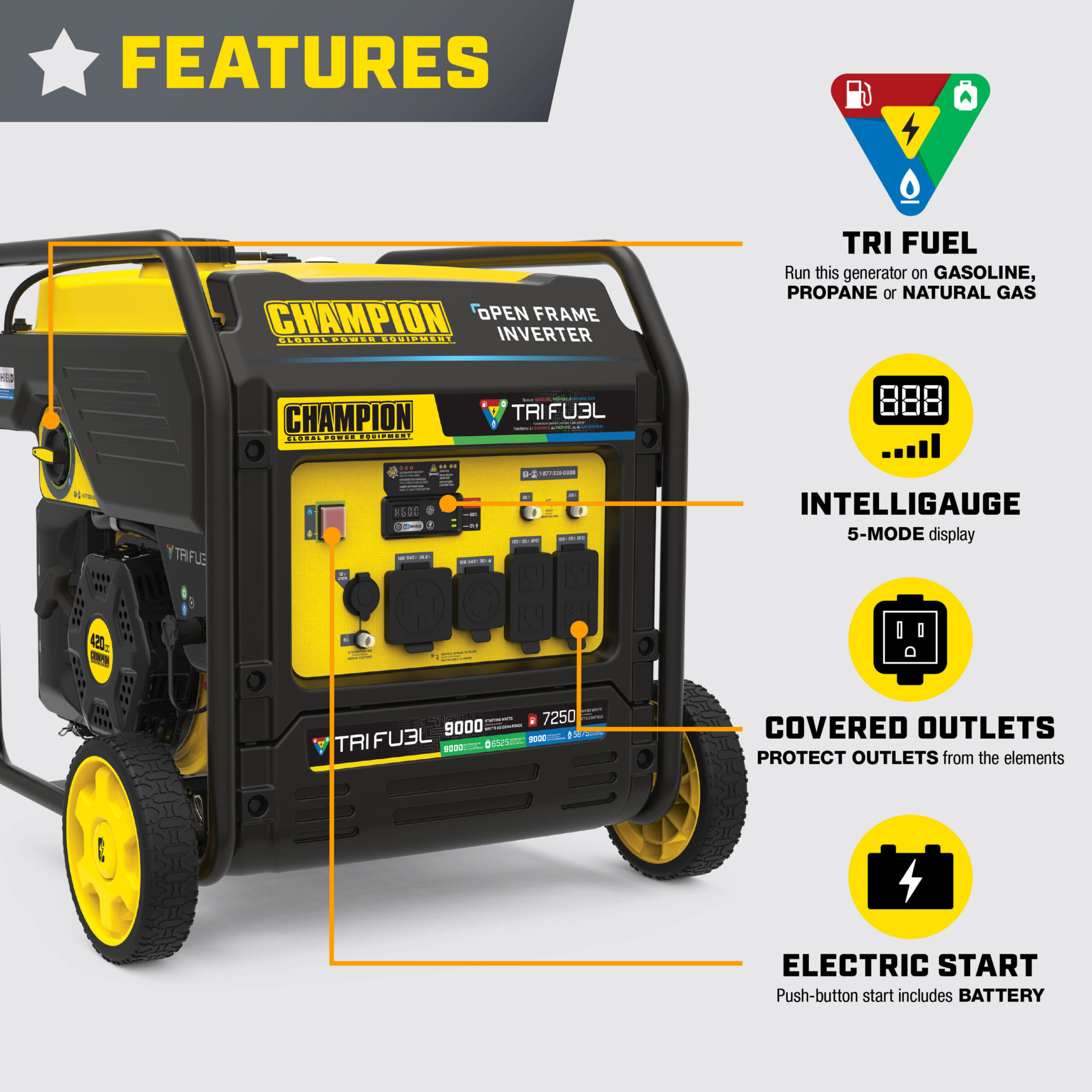

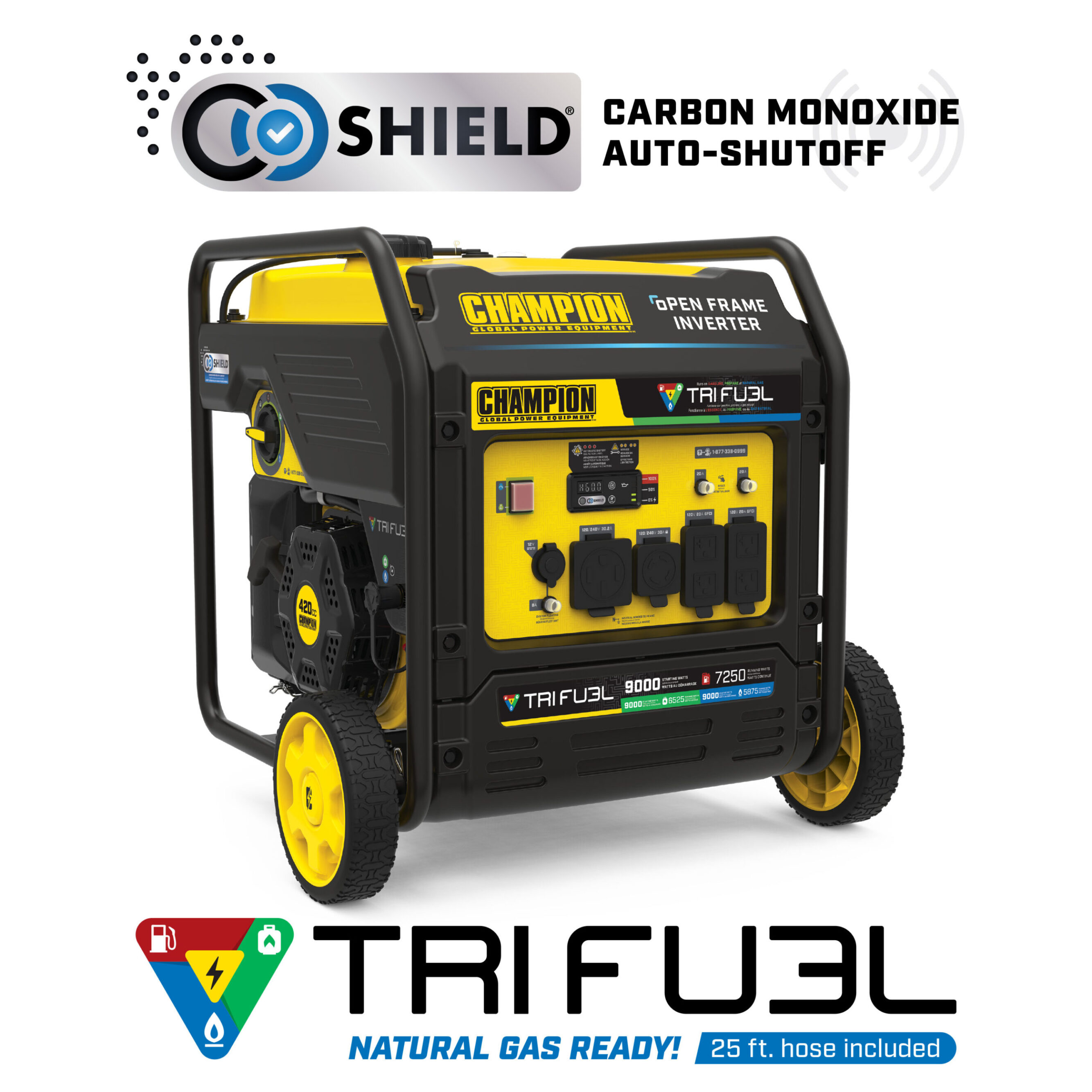

Features Tri Fuel Your 9000-watt portable generator operates on natural gas, propane, or gasoline, plus natural gas and propane hoses are included so the unit is ready to run on any fuel right out of the box Electric Start Trust the reliable 420cc Champion engine with its battery-included electric start featuring a reliable toggle switch, a built-in Cold Start Technology for easy starts in cold weather, plus features CO Shield® carbon monoxide auto shutoff system Advanced Design 50% quieter (72 dBA) and 20% lighter than a traditional 7250-watt generator, plus fuel-saving Economy Mode, and Intelligauge to monitor voltage, frequency and operating hours Powerful Gasoline: 9000 starting watts and 7250 running watts, propane: 9000 starting watts and 6525 running watts, natural gas: 9000 starting watts and 5875 running watts and engine oil is included Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 9000-Watt Tri Fuel Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. A feature-packed addition to your RV and a cost-effective power solution
Specifications
- Portable Generator Technology
- Tri Fuel, CO Shield®
- Gasoline Starting Watts
- 9000W
- Gasoline Running Watts
- 7250W
- Propane Starting Watts
- 9000W
- Propane Running Watts
- 6525W
- Natural Gas Starting Watts
- 9000W
- Natural Gas Running Watts
- 5875W
- Gasoline Starting Amps at 120V
- 75A
- Gasoline Starting Amps at 240V
- 37.5A
- Gasoline Running Amps at 120V
- 60.4A
- Gasoline Running Amps at 240V
- 30.2A
- Propane Starting Amps at 120V
- 75A
- Propane Starting Amps at 240V
- 37.5A
- Propane Running Amps at 120V
- 54.4A
- Propane Running Amps at 240V
- 27.2A
- Natural Gas Starting Amps at 120V
- 75A
- Natural Gas Starting Amps at 240V
- 37.5A
- Natural Gas Running Amps at 120V
- 49A
- Natural Gas Running Amps at 240V
- 24.5A
- Volts
- 120/240
- Frequency
- 60Hz
- Receptacles
- GFCI 120V Duplex (5-20R) (2), 12V DC Automotive, 120/240V Locking (L14-30R), 120/240V (14-50R)
- DC Operation
- Yes
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 14 h.
- Propane Run Time at 1/4 Load
- 12 h.
- Noise Level
- 72 dB(A)
- Inverter
- Open Frame
- Parallel Capability
- No
- Voltmeter
- Intelligauge with Power Meter
- Battery
- Yes
- Start Type
- Recoil, Electric
- Engine Brand
- Champion
- Engine Size
- 420cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline, Propane (LPG), Natural Gas (NG)
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.32 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 5W-30
- Engine Oil Capacity
- 1.2 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 8 in.
- PGMA Compliant
- G300-2018
- ETL Listing
- cETL
- EPA Certified
- Yes
Measurements
- Length
- 26.6 in.
- Width
- 25.5 in.
- Height
- 25.4 in.
- Weight
- 165.8 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Tri-fuel flexibility
- Clean inverter power
- Tri Fuel, CO Shield®
- Recoil, Electric start
- 3 Year Warranty
