Champion · Portable generator
201207
4,750 starting watts and 3,800 running watts with gasoline operation · 14 h. · 68 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 4,750 starting watts
4,750W starting
Manufacturer runtime
14 h.
Operating volume
68 dB(A)
Energy source
Gasoline
4.7 gal. fuel capacity
110 lb.
Unit weight
25.1 in. × 23.6 in. × 22.4 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Conventional alternator
Protection
CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

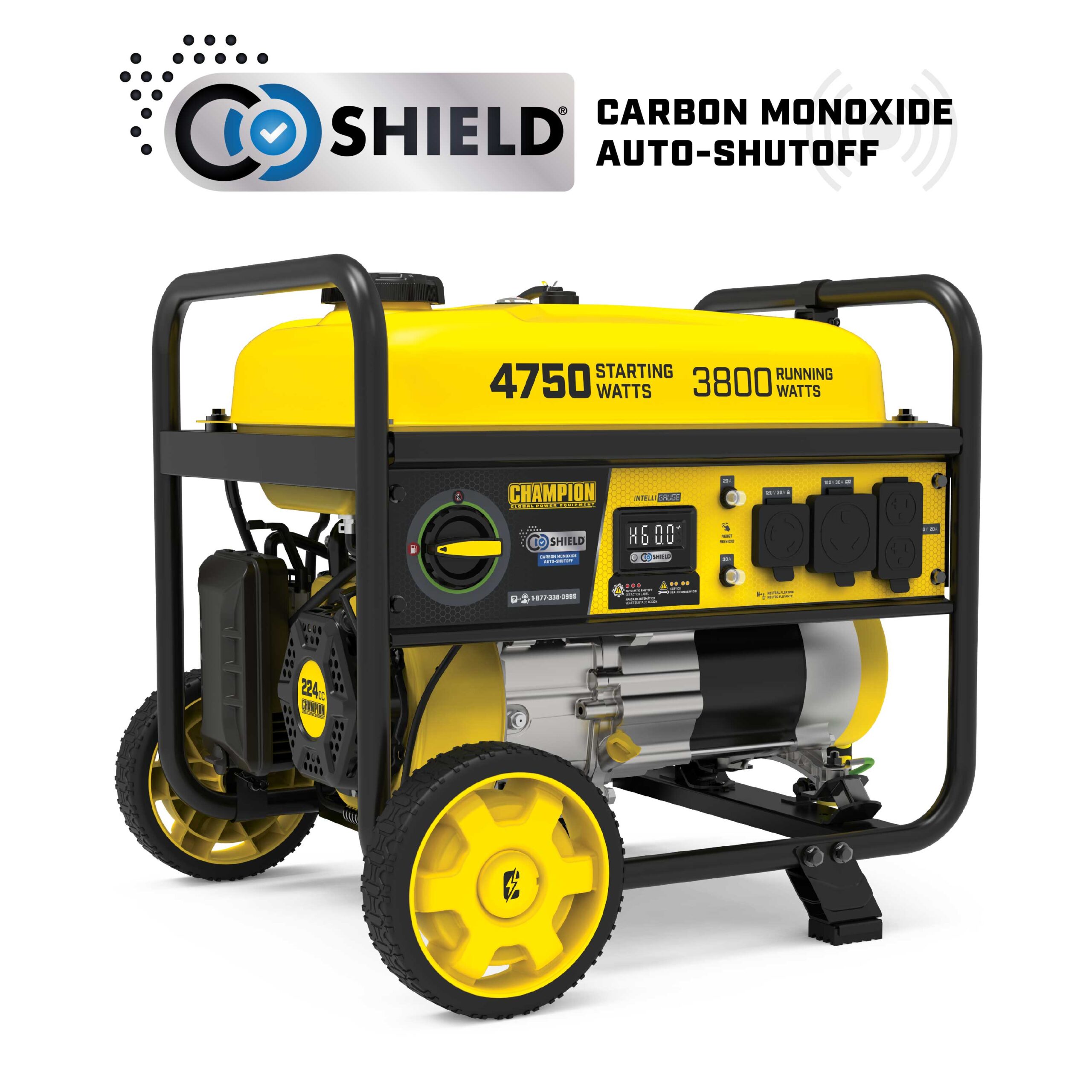

Features Powerful At 4750 starting watts and 3800 running watts, trust Volt Guard™ built-in surge protector to prevent overloads and keep your appliances and equipment safe RV Ready Operate your 3800-watt portable generator right out of the box on gasoline, plus the unit holds 0.6 quarts of oil (included) and has a low oil shut-off sensor Intelligauge Keep track of voltage, hertz and run-time hours to easily monitor power output and track maintenance intervals, plus the unit features CO Shield® carbon monoxide auto shutoff system Covered outlets a 120V 30A (TT-30R) RV outlet, a 120V 30A outlet (L5-30R), plus a 120V 20A household duplex outlet (5-20R) Champion Support Backed by a 3-year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country Description The Champion Power Equipment 201207 3800-Watt RV Ready Portable Generator with CO Shield® is designed to be a convenient source of power for all your outdoor activities and more. A powerful companion for your next camping trip or weekend project, this generator can also provide plenty of backup power for your essentials during an outage. For your RV, you’
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 4750W
- Gasoline Running Watts
- 3800W
- Gasoline Starting Amps at 120V
- 39.6A
- Gasoline Running Amps at 120V
- 31.7A
- Volts
- 120
- Frequency
- 60Hz

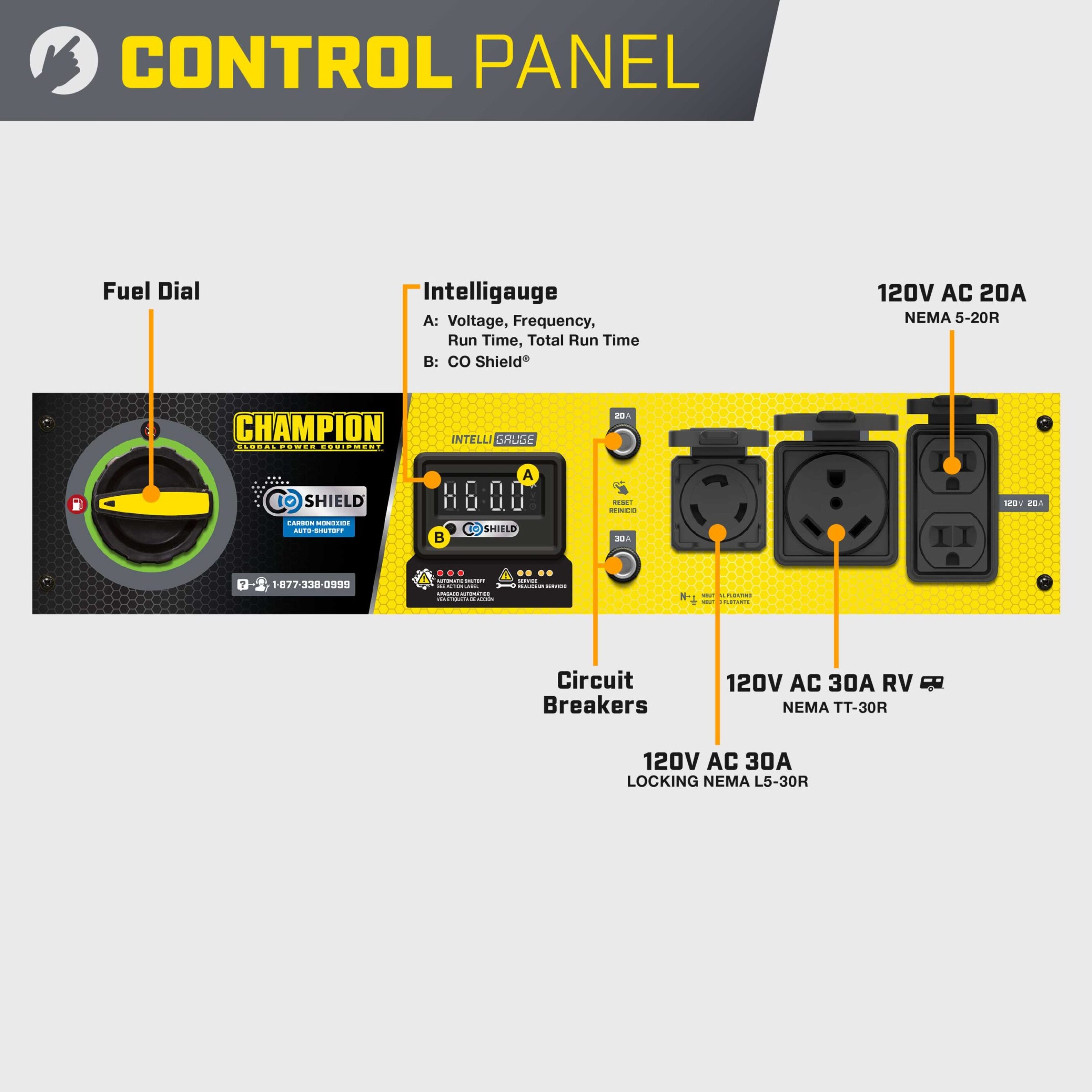

- AC Receptacles
- (1) 120V 30A RV (TT-30R), (1) 120V 20A Duplex (5-20R), (1) 120V 30A Locking (L5-30R)
- DC Operation
- No
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 14 h.
- Noise Level
- 68 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 224cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.6 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 8 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
- CARB Compliant
- Yes
Measurements
- Length
- 25.1 in.
- Width
- 23.6 in.
- Height
- 22.4 in.
- Weight
- 110 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- CO Shield®
- Recoil start
- 3 Year Warranty
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
