Champion · Inverter generator
201238
6,500 starting watts and 5,000 running watts with gasoline operation · 15 h. · 64 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 6,500 starting watts
6,500W starting
Manufacturer runtime
15 h.
Operating volume
64 dB(A)
Energy source
Gasoline
3.95 gal. fuel capacity
101.4 lb.
Unit weight
25 in. × 19.5 in. × 23.2 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Inverter output
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

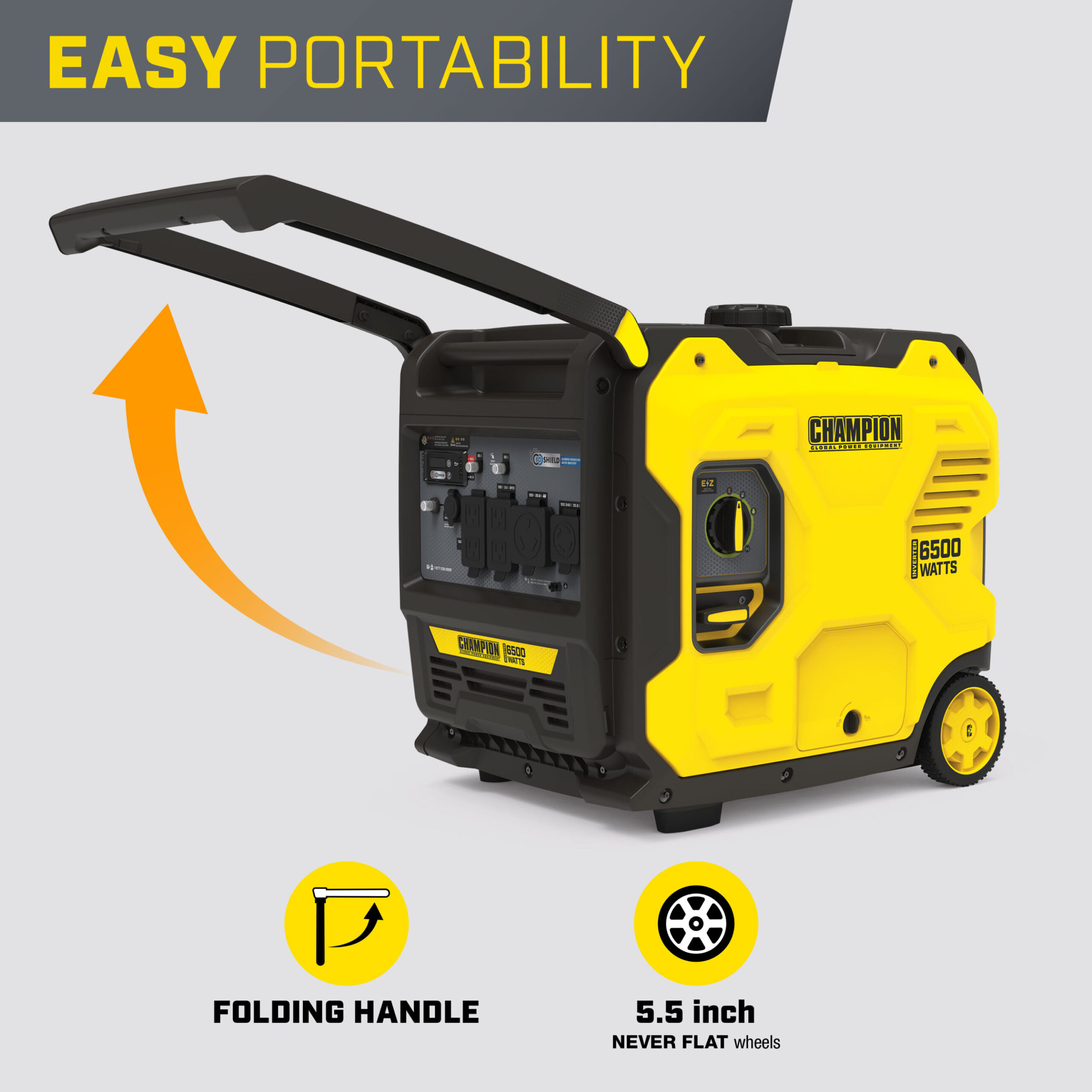

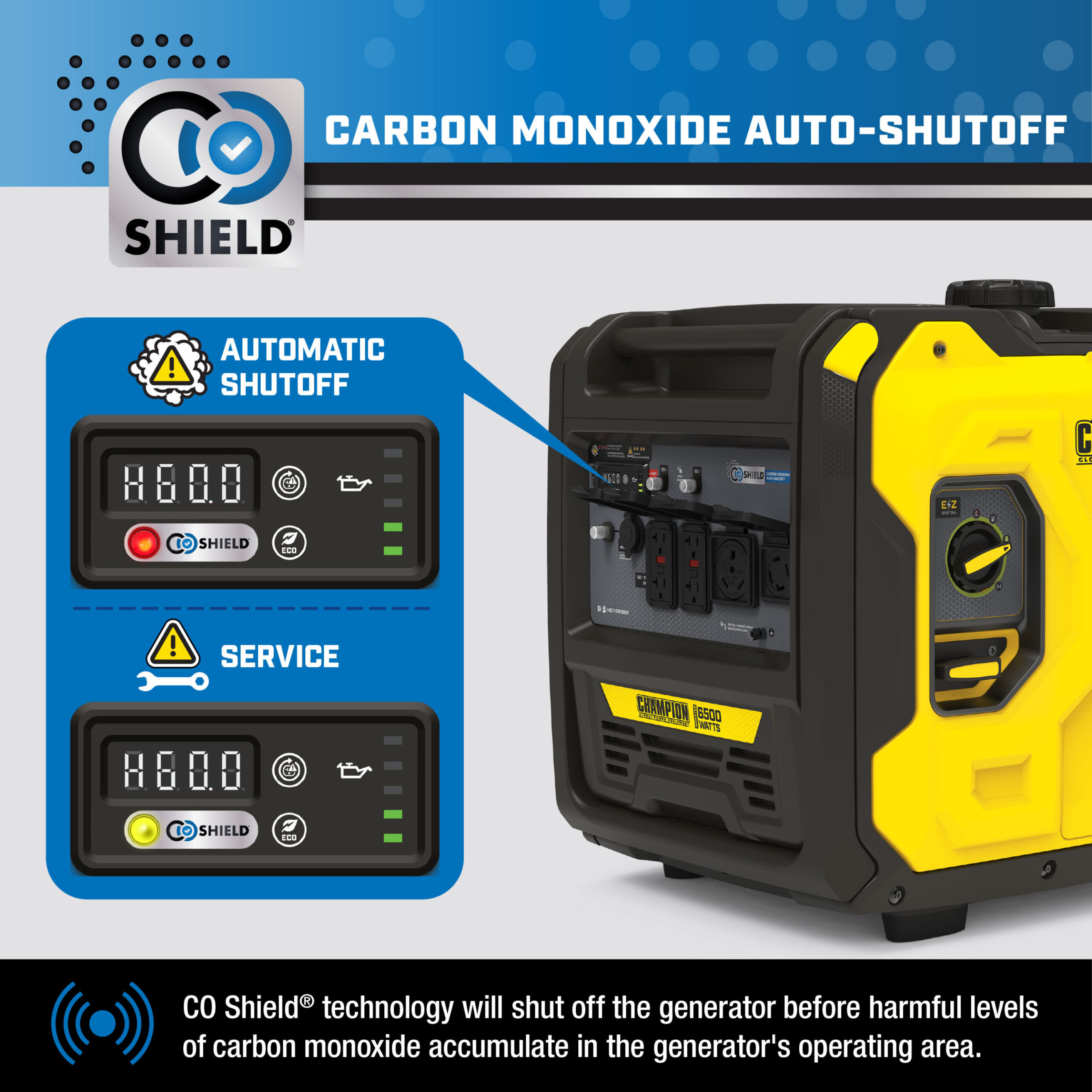

Features Powerful and Quiet 6500 starting watts, 5000 running watts, and ultra-quiet 64 dB(A) operation make it perfect for camping, RVs, or backup power, with up to 15 hours run time on a full tank. Easy Monitoring and Operation Intelligauge with Power Meter tracks voltage, frequency, and hours. Includes an EZ Start Dial, Economy Mode, and CO Shield® Carbon Monoxide Auto-Shutoff for safety. Clean Power for Sensitive Electronics Safely power devices with multiple covered outlets, including options for sensitive electronics, household appliances, RVs, and regulated automotive-style needs. Portable and Easy to Maintain Foldaway handle and never-flat wheels provide portability, while a no-tool panel and oil drain tube make maintenance quick and hassle-free. Reliable Champion Support Comes with a 3-year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country. Description The Champion Power Equipment 6500-Watt Inverter Generator with CO Shield® is the perfect combination of power and portability, making it ideal for camping, tailgating, powering your RV, or providing reliable backup power for your home essen
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 6500W
- Gasoline Running Watts
- 5000W
- Gasoline Starting Amps at 120V
- 54.2A
- Gasoline Starting Amps at 240V
- 27.1A
- Gasoline Running Amps at 120V
- 41.7A
- Gasoline Running Amps at 240V
- 20.8A
- Volts
- 120/240
- Frequency
- 60Hz

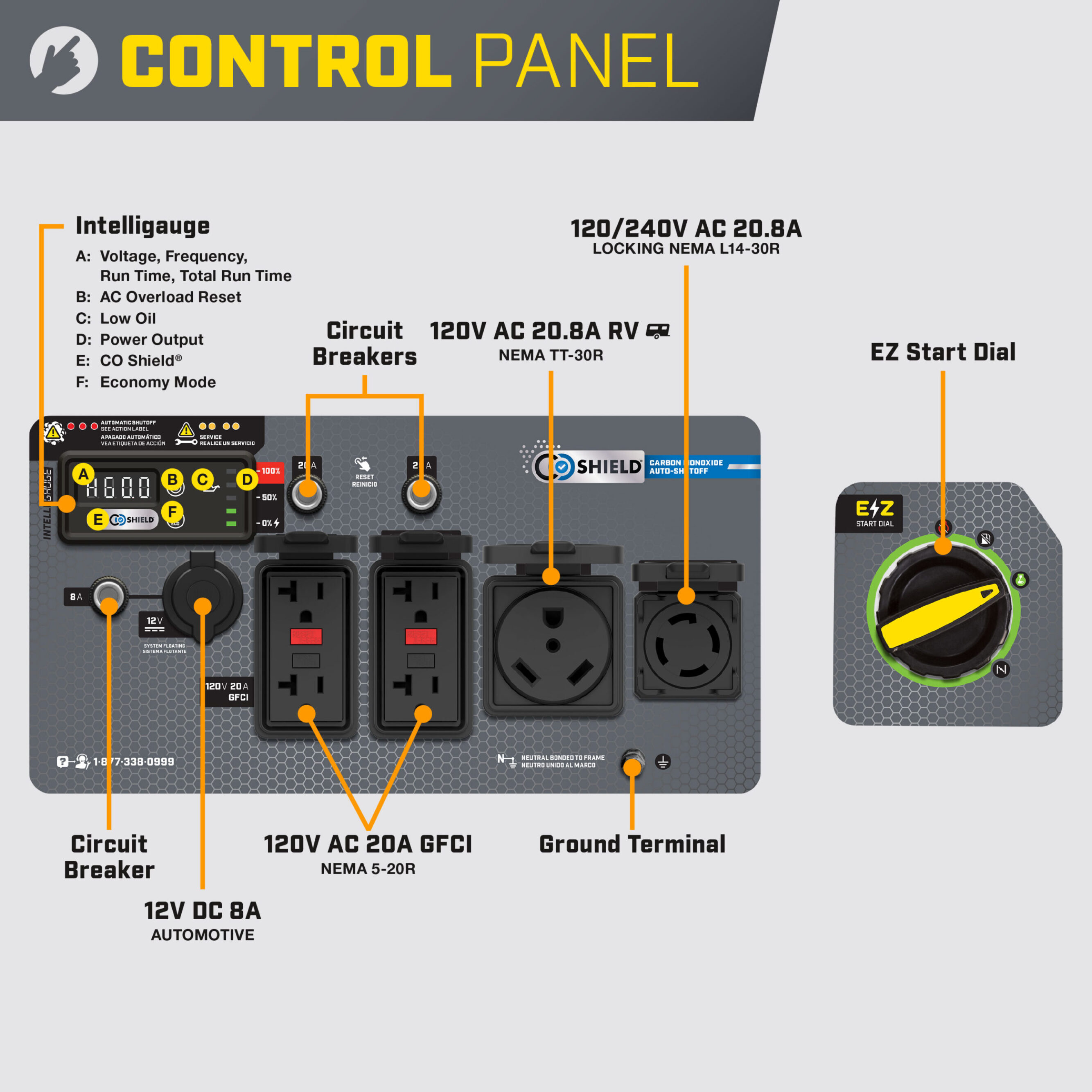

- AC Receptacles
- (2) 120V 20A GFCI Duplex (5-20R), (1) 120V 20.8A (TT-30R), (1) 120/240V 20.8 Locking (L14-30R)
- DC Operation
- Yes
- DC Receptacles
- (1) 12V 8A Automotive (Regulated)
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 15 h.
- Noise Level
- 64 dB(A)
- Inverter
- Enclosed
- Parallel Capability
- No
- Voltmeter
- Intelligauge with Power Meter
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 223cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 3.95 gal.
- Gasoline Tank Material
- Plastic
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.7 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 5.5 in.
- PGMA Compliant
- G300-2018
- EPA Certified
- Yes
Measurements
- Length
- 25 in.
- Width
- 19.5 in.
- Height
- 23.2 in.
- Weight
- 101.4 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Clean inverter power
- CO Shield®
- Recoil start
- 3 Year Warranty
