Champion · Inverter generator
201239
7,250 starting watts and 5,500 running watts with gasoline operation · 15 h. · 69 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 7,250 starting watts
7,250W starting
Manufacturer runtime
15 h.
Operating volume
69 dB(A)
Energy source
Gasoline
4.71 gal. fuel capacity
111.6 lb.
Unit weight
26.2 in. × 24.9 in. × 21.8 in.
Length × width × height
- Warranty
- 3 Year Warranty Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Inverter output
Protection

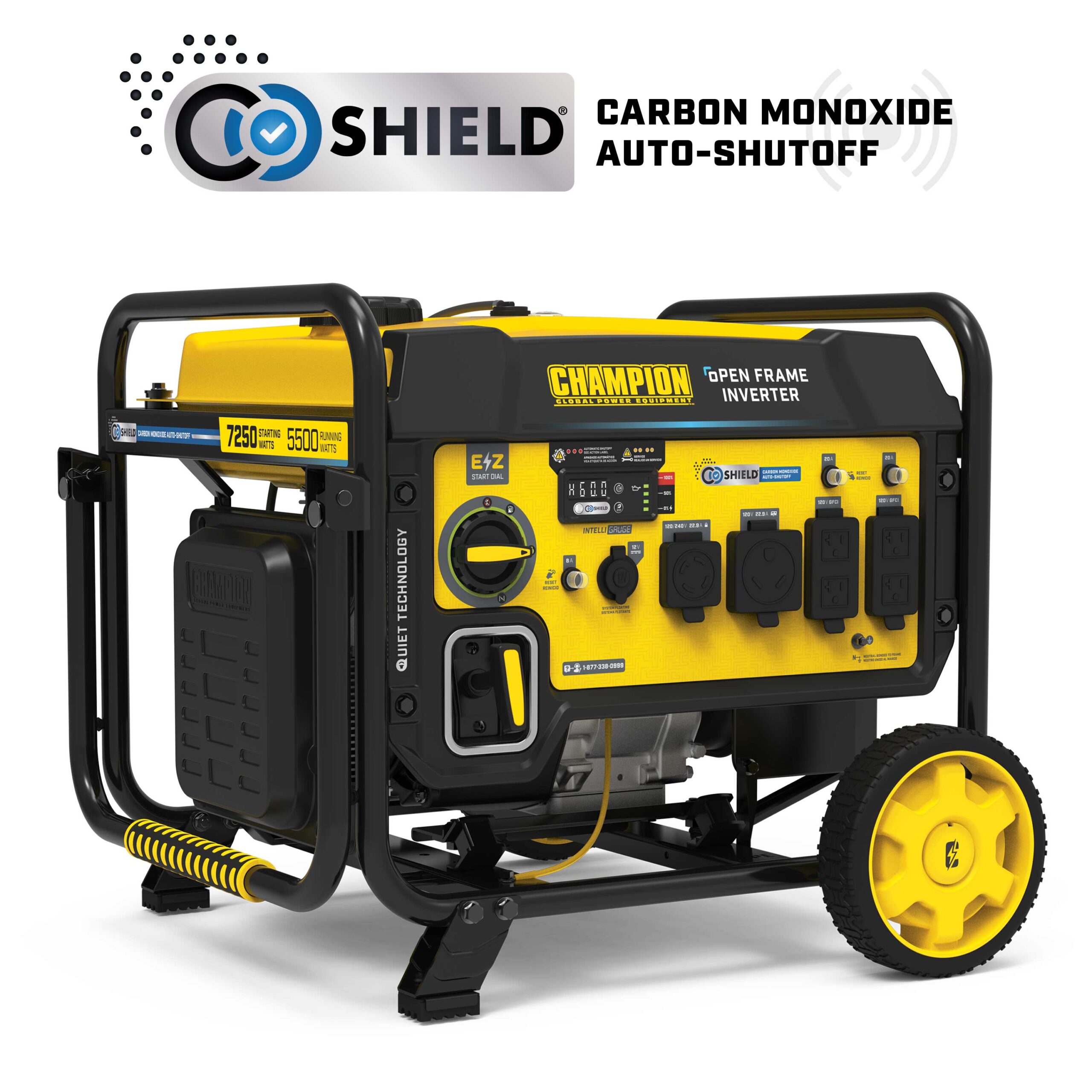

CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Advanced Design 50% quieter and 20% lighter than a traditional 5500-watt generator, plus features CO Shield® carbon monoxide auto shutoff system Quiet Technology and Extended Run Time 69 dBA is great for RVs, tailgating, your next project or home backup, with 7250 starting watts and 5500 running watts for up to 15 hours run time on gasoline Clean electricity for sensitive electronics RV Ready with a 120V 22.9A RV, a 120/240V locking, two 120V 20A GFCI household duplex outlets with clean power (less than 3% THD), plus a 12V automotive-style outlet. Intelligauge with Power Meter Monitor voltage, frequency and operating hours with ease. Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 7250-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life. First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters. Then, we created an efficient mechanical design to decrease the overall footpr
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 7250W
- Gasoline Running Watts
- 5500W
- Gasoline Starting Amps at 120V
- 60.4A
- Gasoline Starting Amps at 240V
- 30.2A
- Gasoline Running Amps at 120V
- 45.8A
- Gasoline Running Amps at 240V
- 22.9A
- Volts
- 120/240
- Frequency
- 60Hz
- AC Receptacles
- (1) 120/240V AC 22.9A Locking (L14-30R), (1) 120V AC 22.9A RV (TT-30R), (2) 120V AC 20A GFCI Duplex (5-20R)
- DC Operation
- Yes
- DC Receptacles
- (1) 12V DC Automotive
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 15 h.
- Noise Level
- 69 dB(A)
- Inverter
- Open Frame
- Parallel Capability
- No
- Voltmeter
- Intelligauge with Power Meter
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 302cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.71 gal.
- Gasoline Tank Material
- Metal
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.8 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 8 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes

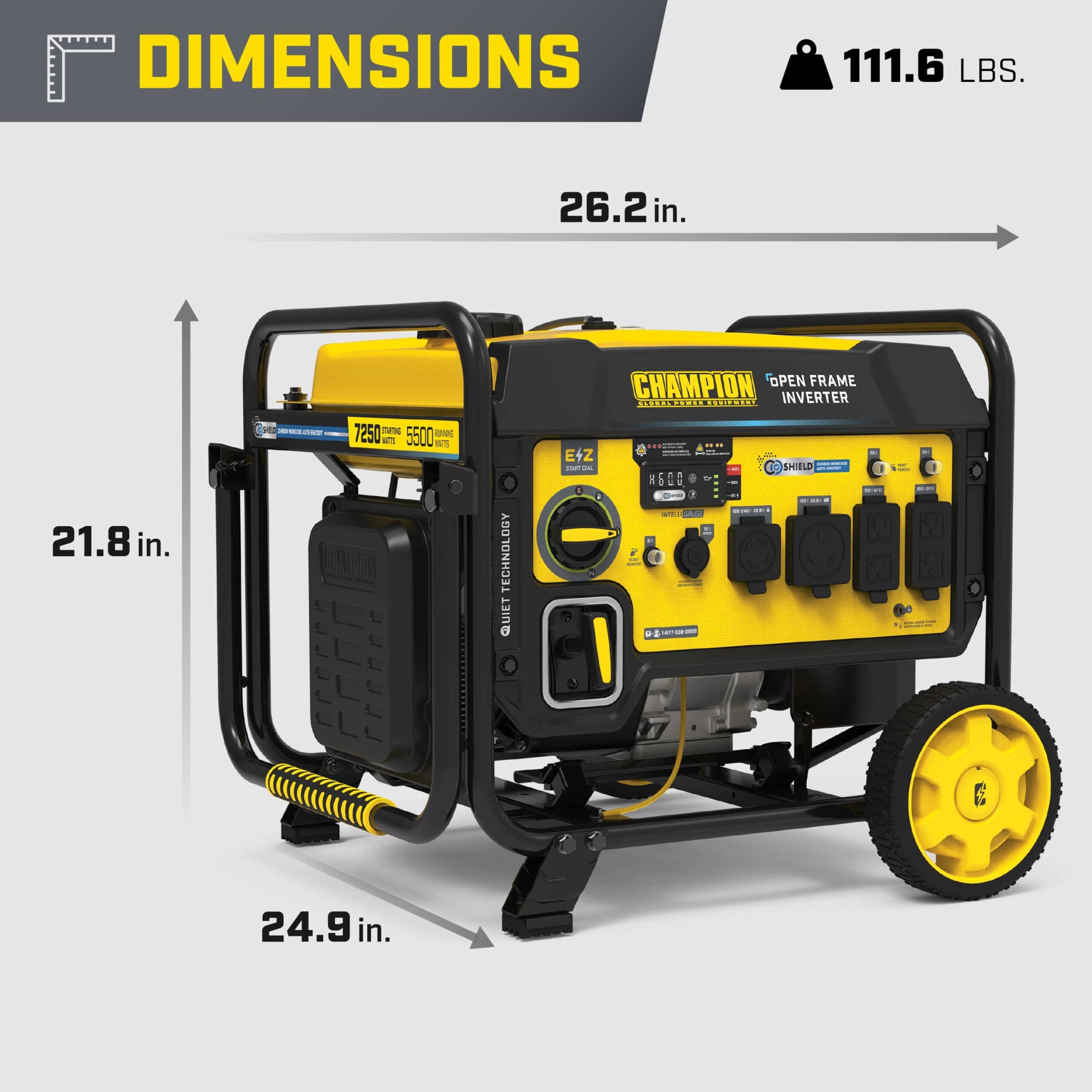

Measurements
- Length
- 26.2 in.
- Width
- 24.9 in.
- Height
- 21.8 in.
- Weight
- 111.6 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Clean inverter power
- CO Shield®
- Recoil start
- 3 Year Warranty Warranty
