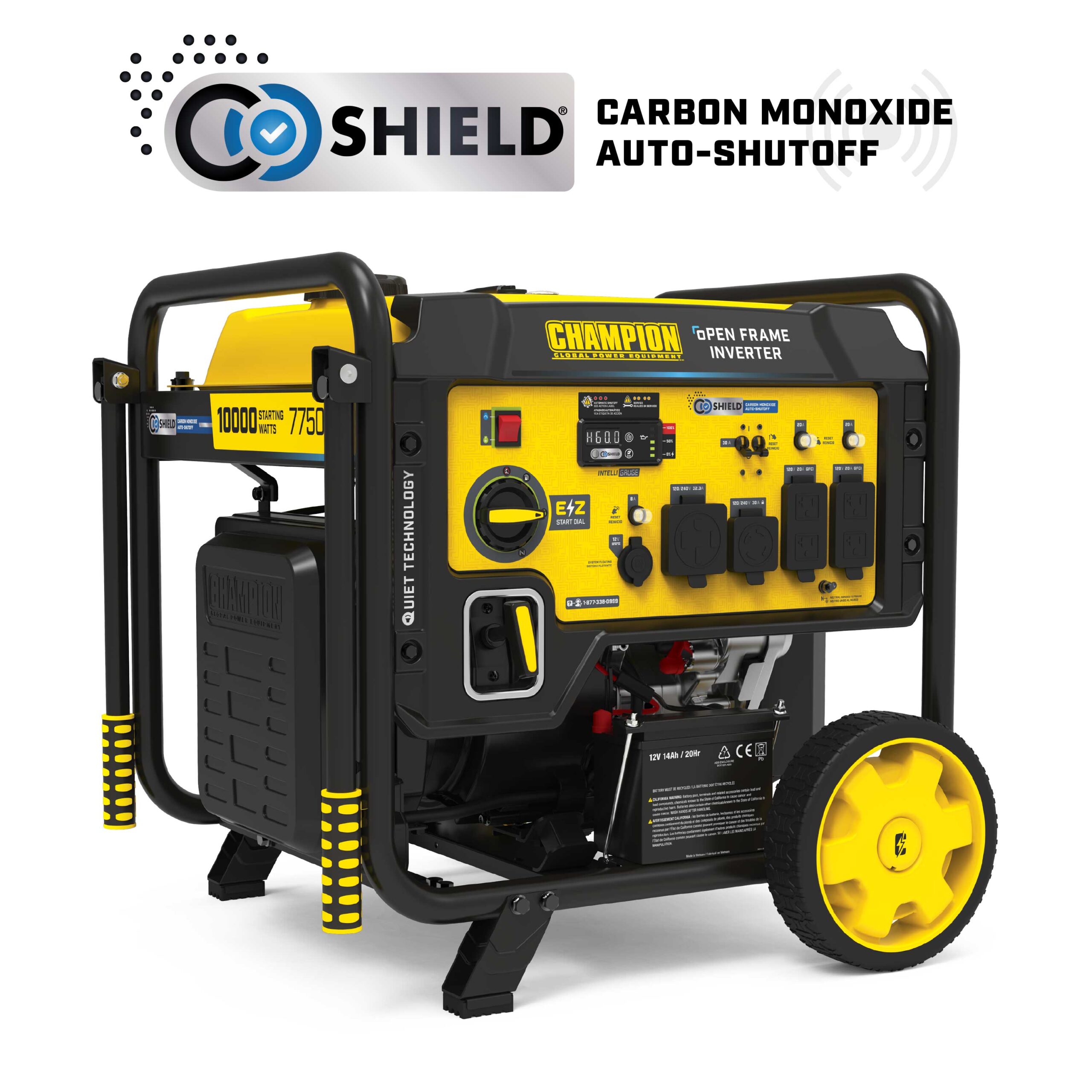

Champion · Inverter generator
201240
10,000 starting watts and 7,750 running watts with gasoline operation · 12 h. · 72 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 10,000 starting watts
10,000W starting
Manufacturer runtime
12 h.
Operating volume
72 dB(A)
Energy source
Gasoline
7.45 gal. fuel capacity
172 lb.
Unit weight
27.1 in. × 28 in. × 26.2 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric
Power system
Inverter output
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.

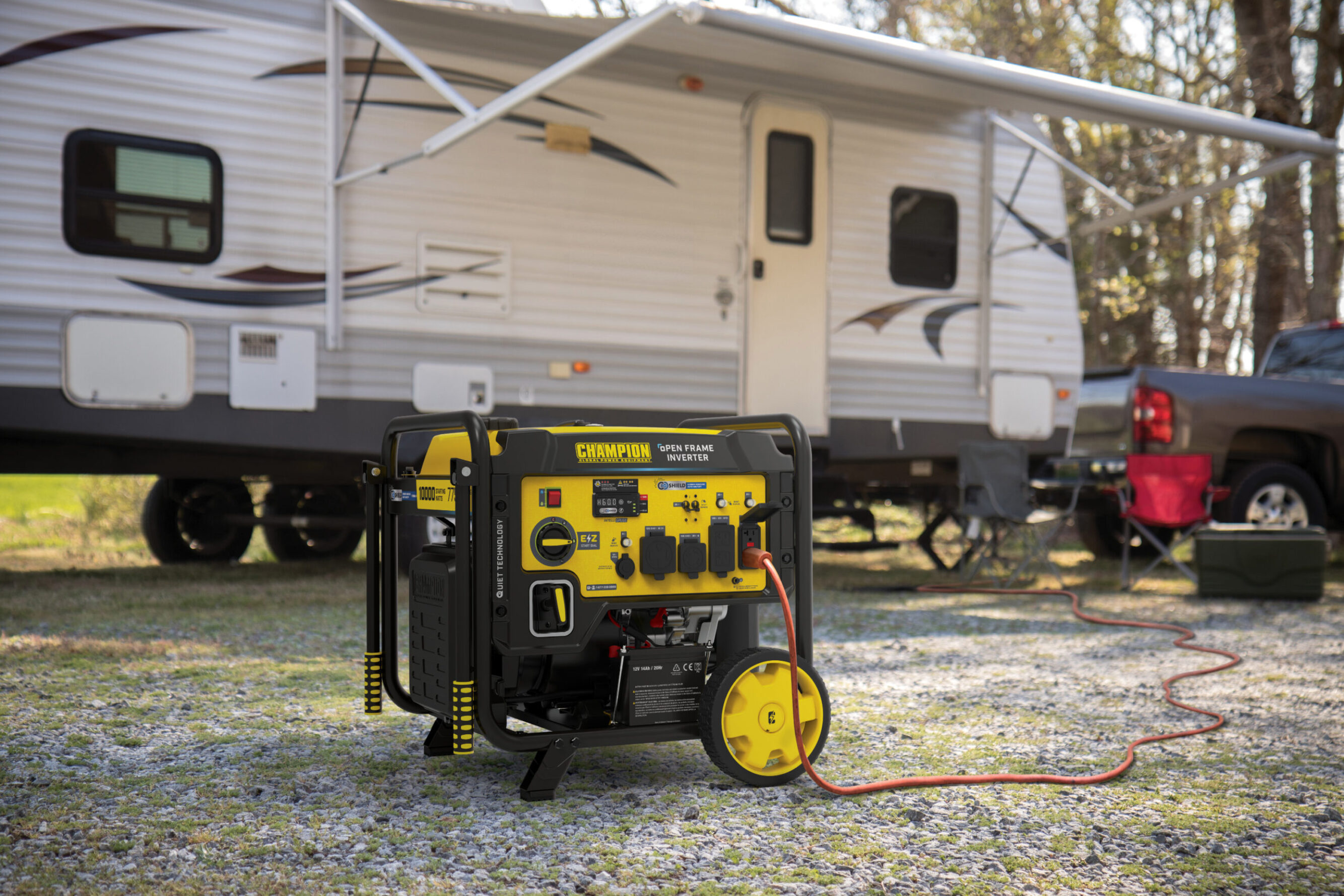

Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Low Noise Quiet Technology delivers 72 dB(A) operation, 50% quieter than typical generators, for undisturbed home backup or outdoor events. Safe Charging Clean Power technology protects devices like phones or EV chargers with stable output for reliable use at events or home. Easy Startup EZ Start Dial and Cold Start technology enable easy electric or manual startup, even in chilly conditions, for any user. CO Shield® Technology Built-in carbon monoxide auto-shutoff technology continuously monitors CO levels and is designed to help reduce carbon monoxide risks. Champion Support Backed by a 3-year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country. Description The Champion Power Equipment 10,000-Watt Electric Start Home Backup Portable Open Frame Inverter Generator with Quiet Technology and CO Shield® delivers reliable power for home backup, worksites, or events. With 10,000 starting watts and 7750 running watts, its Clean Power output protects sensitive electronics like laptops or EV chargers. Quiet Technology reduces operating noise to 72 dB(A), up to 50% quieter and 20% lighter than tradi
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 10000W
- Gasoline Running Watts
- 7750W
- Gasoline Starting Amps at 120V
- 83.3A
- Gasoline Starting Amps at 240V
- 41.7A
- Gasoline Running Amps at 120V
- 64.6A
- Gasoline Running Amps at 240V
- 32.3A
- Volts
- 120/240
- Frequency
- 60Hz
- AC Receptacles
- (2) 120V 20A GFCI Duplex (5-20R), (1) 120/240V 30A Locking (L14-30R), (1) 120/240V 32.3A (14-50R)
- DC Operation
- Yes
- DC Receptacles
- (1) 12V 8A Automotive
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 12 h.
- Noise Level
- 72 dB(A)
- Inverter
- Open Frame
- Parallel Capability
- No
- Voltmeter
- Intelligauge with Power Meter
- Battery
- Yes
- Start Type
- Recoil, Electric
- Engine Brand
- Champion
- Engine Size
- 459cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 7.45 gal.
- Gasoline Tank Material
- Metal
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 1.2 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 9.5 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 27.1 in.
- Width
- 28 in.
- Height
- 26.2 in.
- Weight
- 172 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Clean inverter power
- CO Shield®
- Recoil, Electric start
- 3 Year Warranty
