Champion · Inverter generator
201273
5,500 starting watts and 4,000 running watts with gasoline, propane operation · 20 h. · 61 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 5,500 starting watts
5,500W starting
5,500W starting
Manufacturer runtime
20 h.
Operating volume
61 dB(A)
Energy source
Gasoline, Propane (LPG)
3.7 gal. fuel capacity
121.4 lb.
Unit weight
24.6 in. × 19 in. × 20.9 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric
Power system
Inverter output
Protection

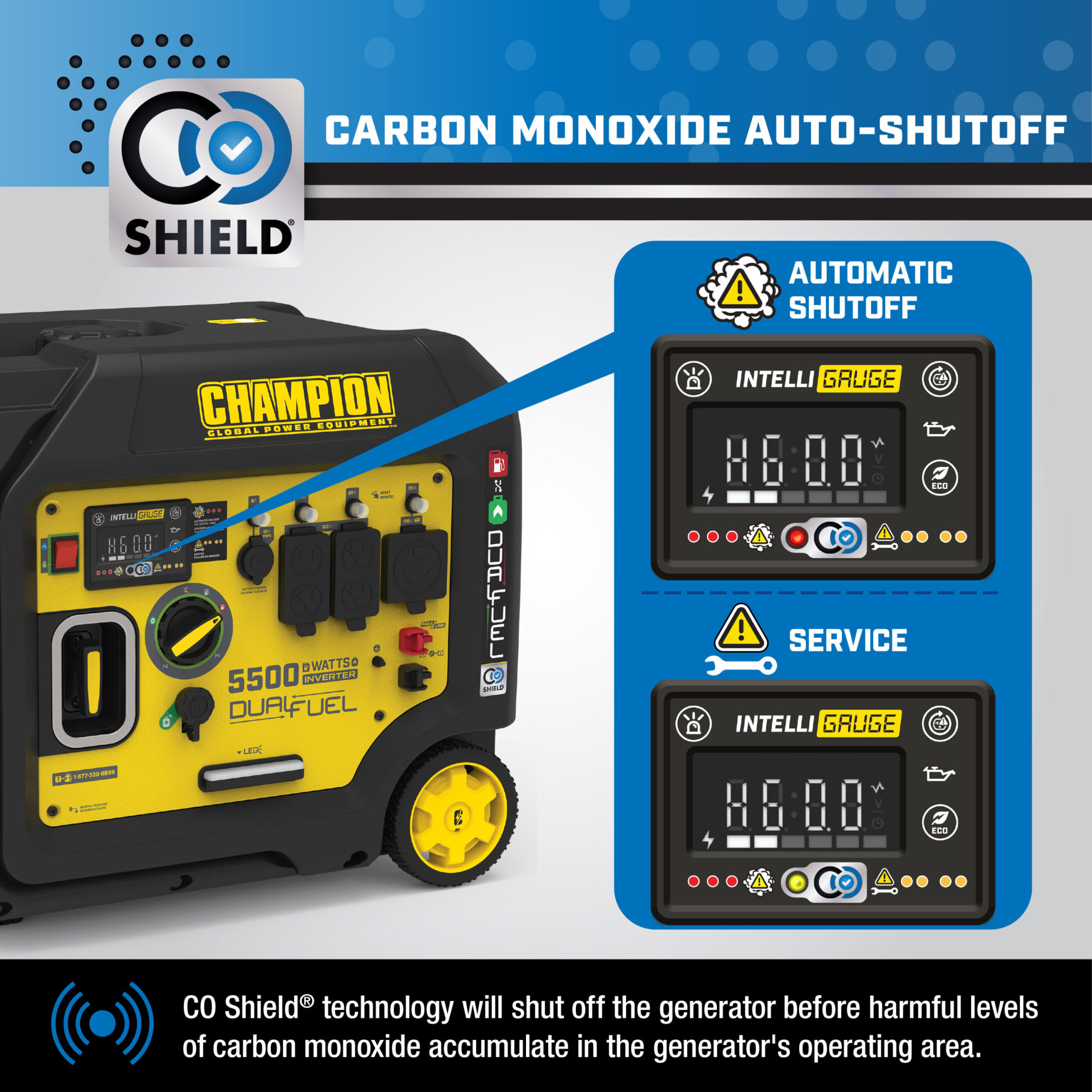

CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz

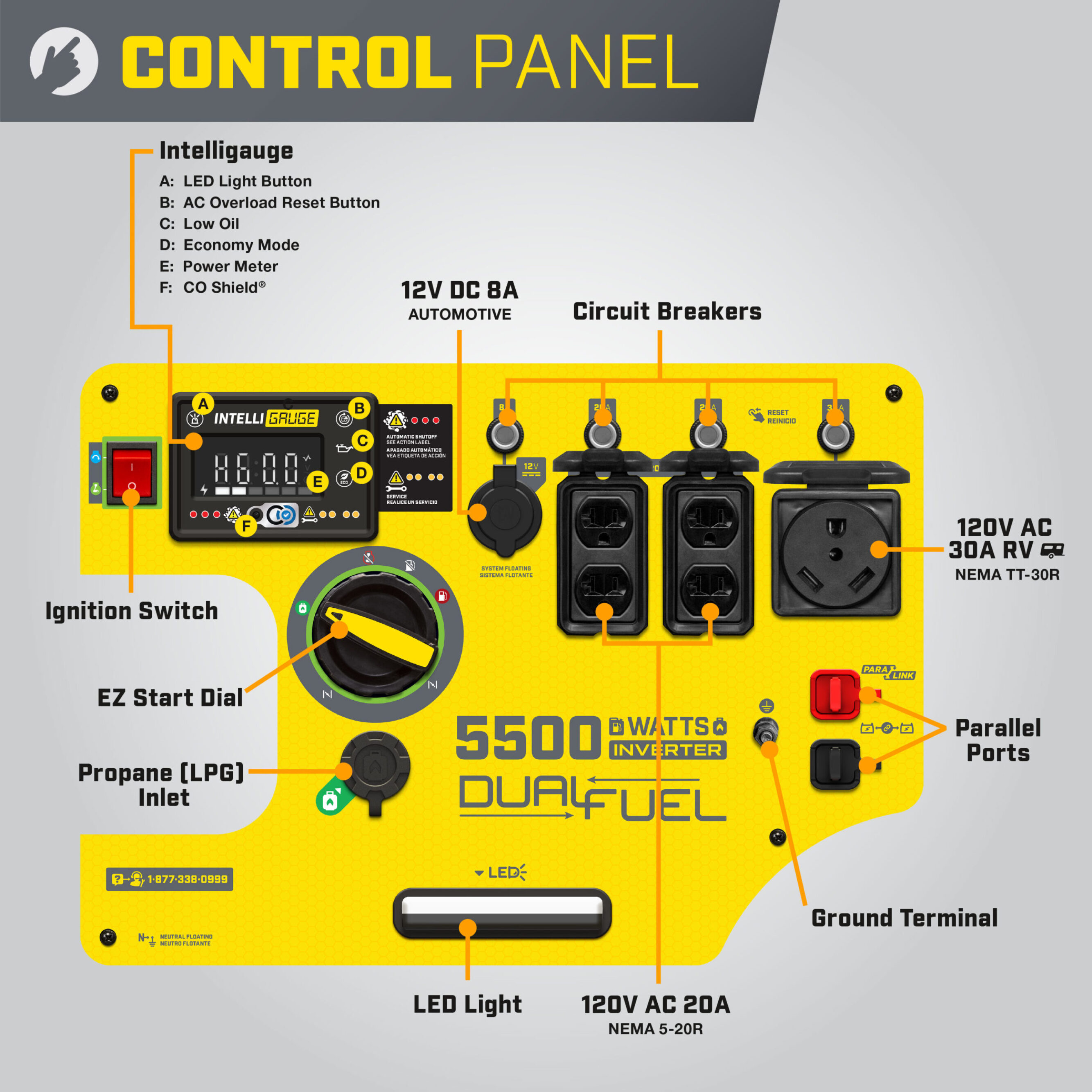

120V Duplex (5-20R) (2), 120V (TT-30R), Parallel, 12V DC Automotive
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

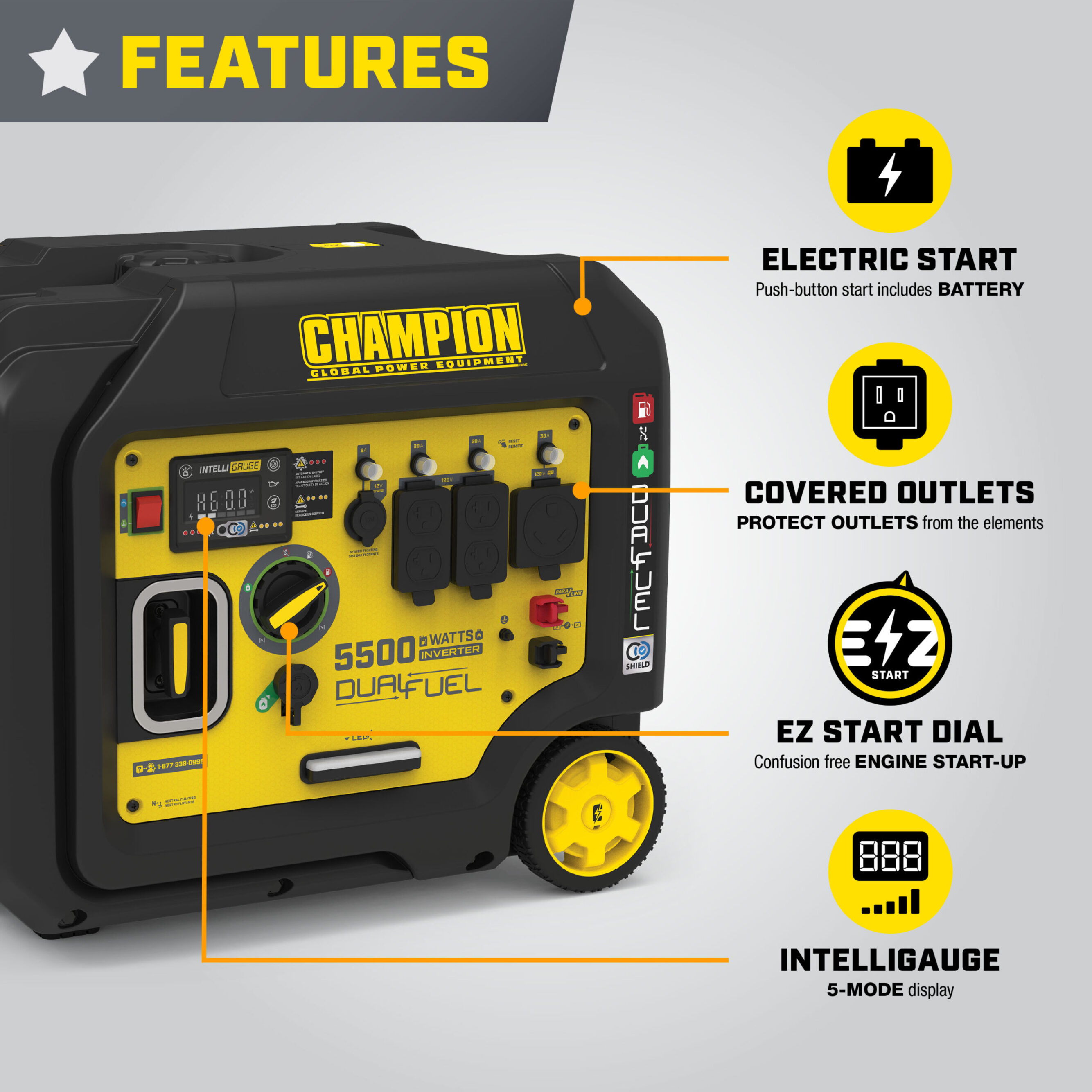

Features Dual Fuel Operate your 5500-watt portable generator right out of the box on either gasoline or propane, plus features CO Shield® carbon monoxide auto shutoff system Parallel Ready The optional parallel kit (sold separately) enables this inverter to connect with another 5500-watt or similar Champion inverter to double your output power Intelligauge with Power Meter Monitor voltage, frequency and operating hours with ease, plus the EZ Start Dial simplifies startup while Economy Mode monitors power consumption in real time Clean Power for Sensitive Electronics RV Ready with a 120V 30A RV, plus two 120V 20A household duplex outlets with clean power (less than 3% THD) and a 12V regulated automotive-style outlet Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 5500-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials. Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start Technology, Extended Run Time, and Electric Start, the reliable 224cc Champ
Specifications
- Portable Generator Technology
- Dual Fuel, CO Shield®, ParaLINK®
- Gasoline Starting Watts
- 5500W
- Gasoline Running Watts
- 4000W
- Propane Starting Watts
- 5500W
- Propane Running Watts
- 3600W
- Gasoline Starting Amps at 120V
- 45.8A
- Gasoline Running Amps at 120V
- 33.3A
- Propane Starting Amps at 120V
- 45.8A
- Propane Running Amps at 120V
- 30A
- Volts
- 120
- Frequency
- 60Hz
- Receptacles
- 120V Duplex (5-20R) (2), 120V (TT-30R), Parallel, 12V DC Automotive
- DC Operation
- Yes
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 20 h.
- Propane Run Time at 1/4 Load
- 15 h.
- Noise Level
- 61 dB(A)
- Inverter
- Enclosed
- Parallel Capability
- Yes
- Voltmeter
- Intelligauge with Power Meter
- Battery
- Yes
- Start Type
- Recoil, Electric
- Engine Brand
- Champion
- Engine Size
- 224cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline, Propane (LPG)
- Fuel Gauge
- No
- Gasoline Capacity
- 3.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.6 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 5.5 in.
- PGMA Compliant
- G300-2018
- EPA Certified
- Yes
Measurements
- Length
- 24.6 in.
- Width
- 19 in.
- Height
- 20.9 in.
- Weight
- 121.4 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Dual-fuel flexibility
- Clean inverter power
- Dual Fuel, CO Shield®, ParaLINK®
- Recoil, Electric start
- Parallel capable
- 3 Year Warranty
