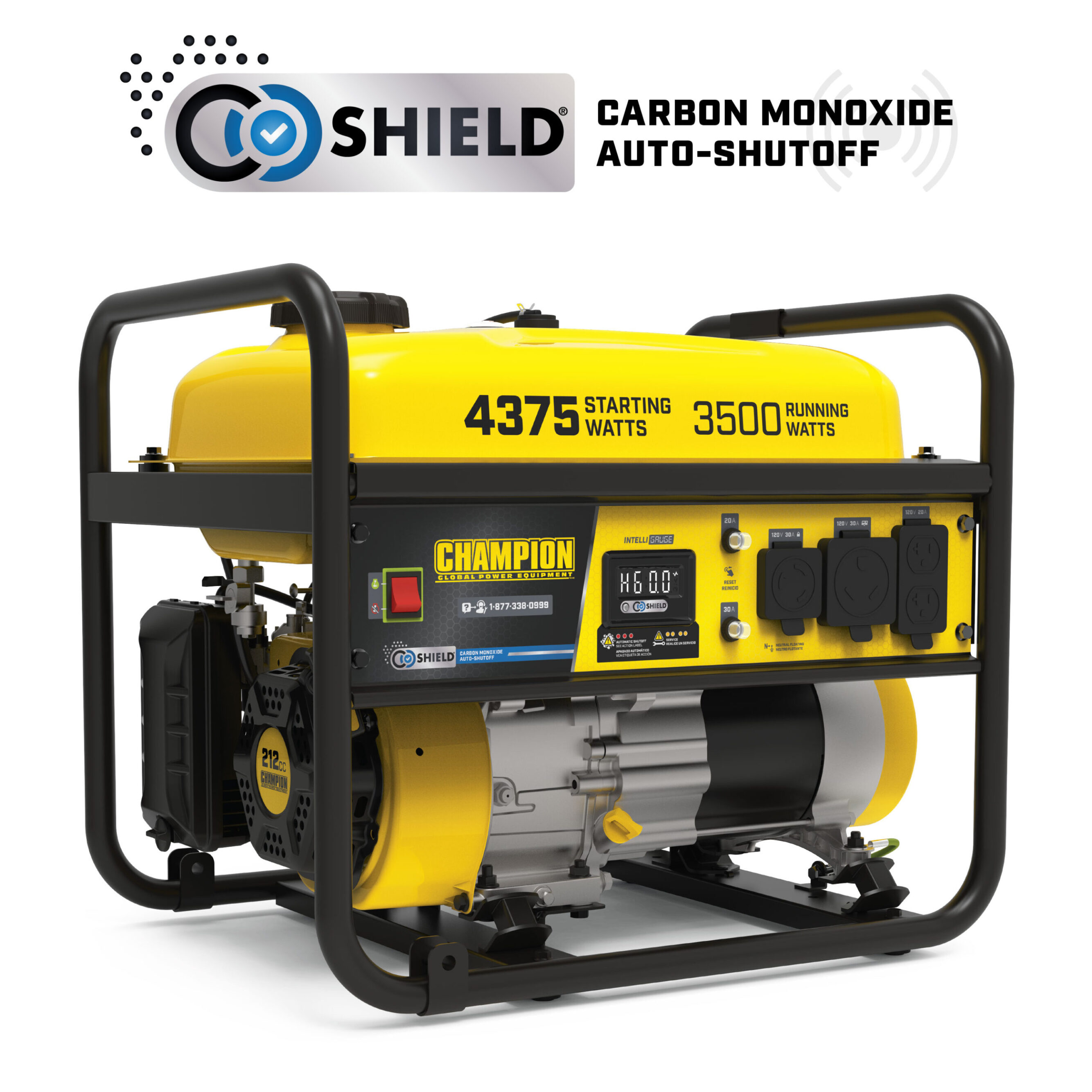

Champion · Portable generator
201286
4,375 starting watts and 3,500 running watts with gasoline operation · 12 h. · 68 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 4,375 starting watts
4,375W starting
Manufacturer runtime
12 h.
Operating volume
68 dB(A)
Energy source
Gasoline
4.7 gal. fuel capacity
99.2 lb.
Unit weight
23.2 in. × 18.3 in. × 19.9 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Conventional alternator
Protection

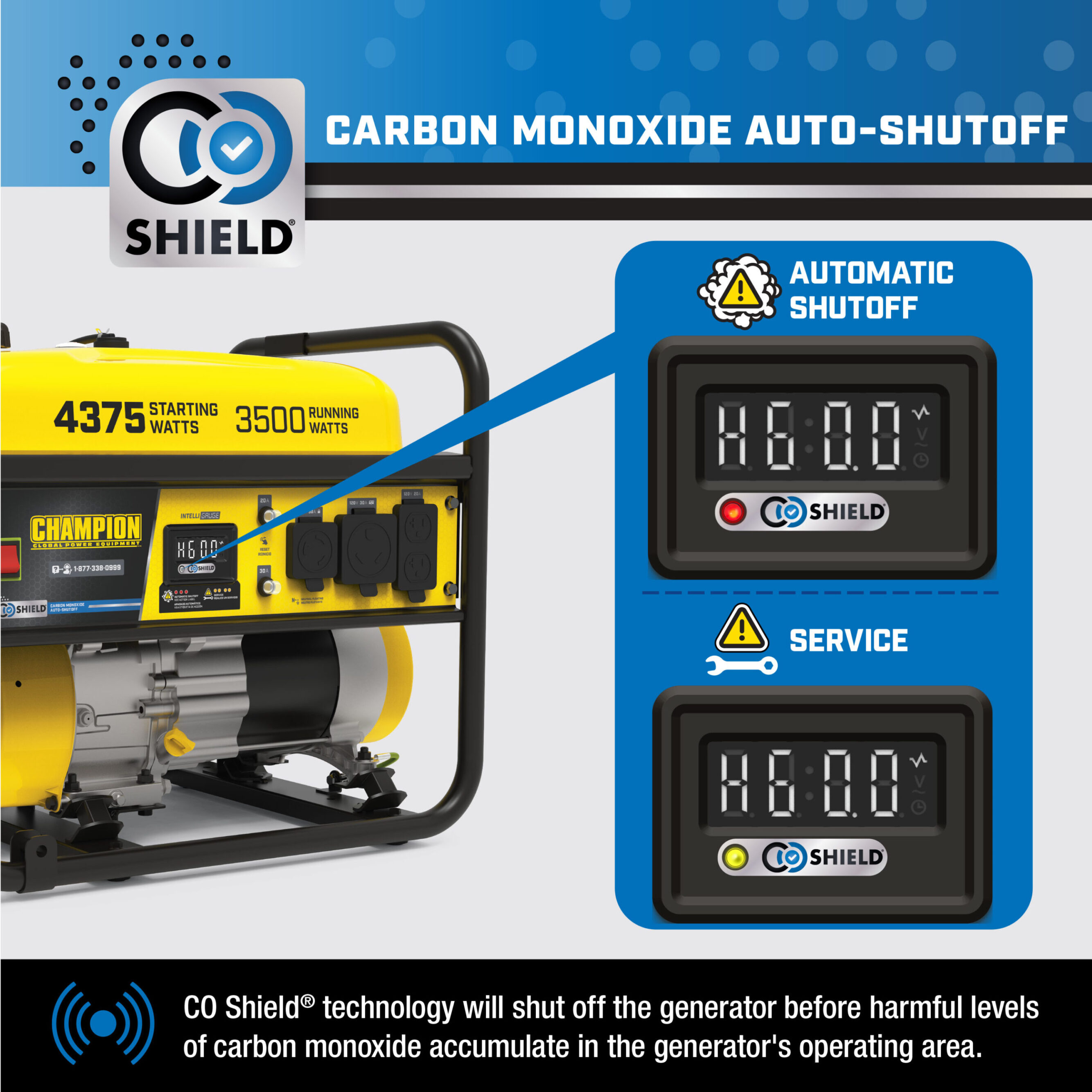

CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz

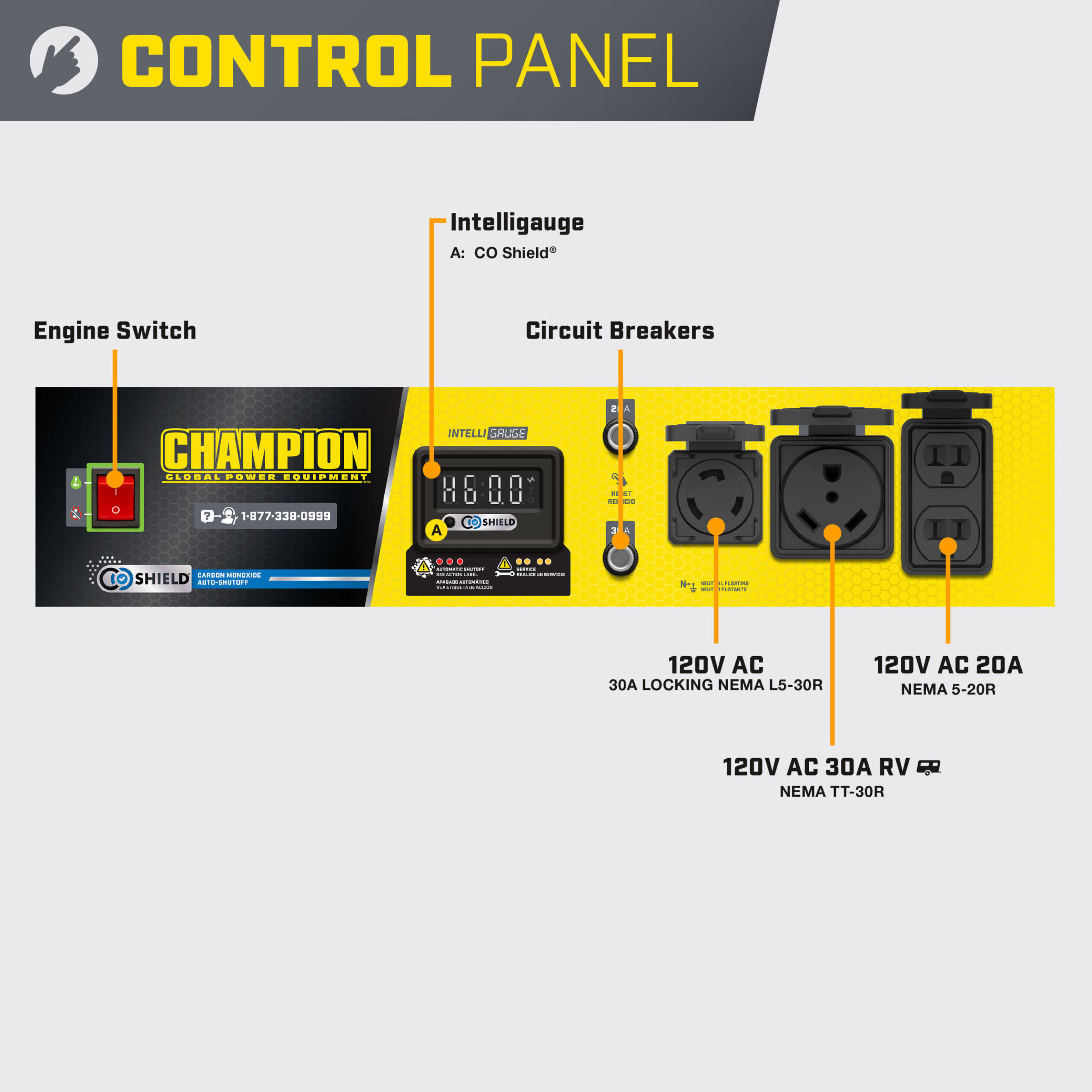

(1) 120V Duplex (5-20R), (1) 120V (TT-30R), (1) 120V Locking (L5-30R)
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

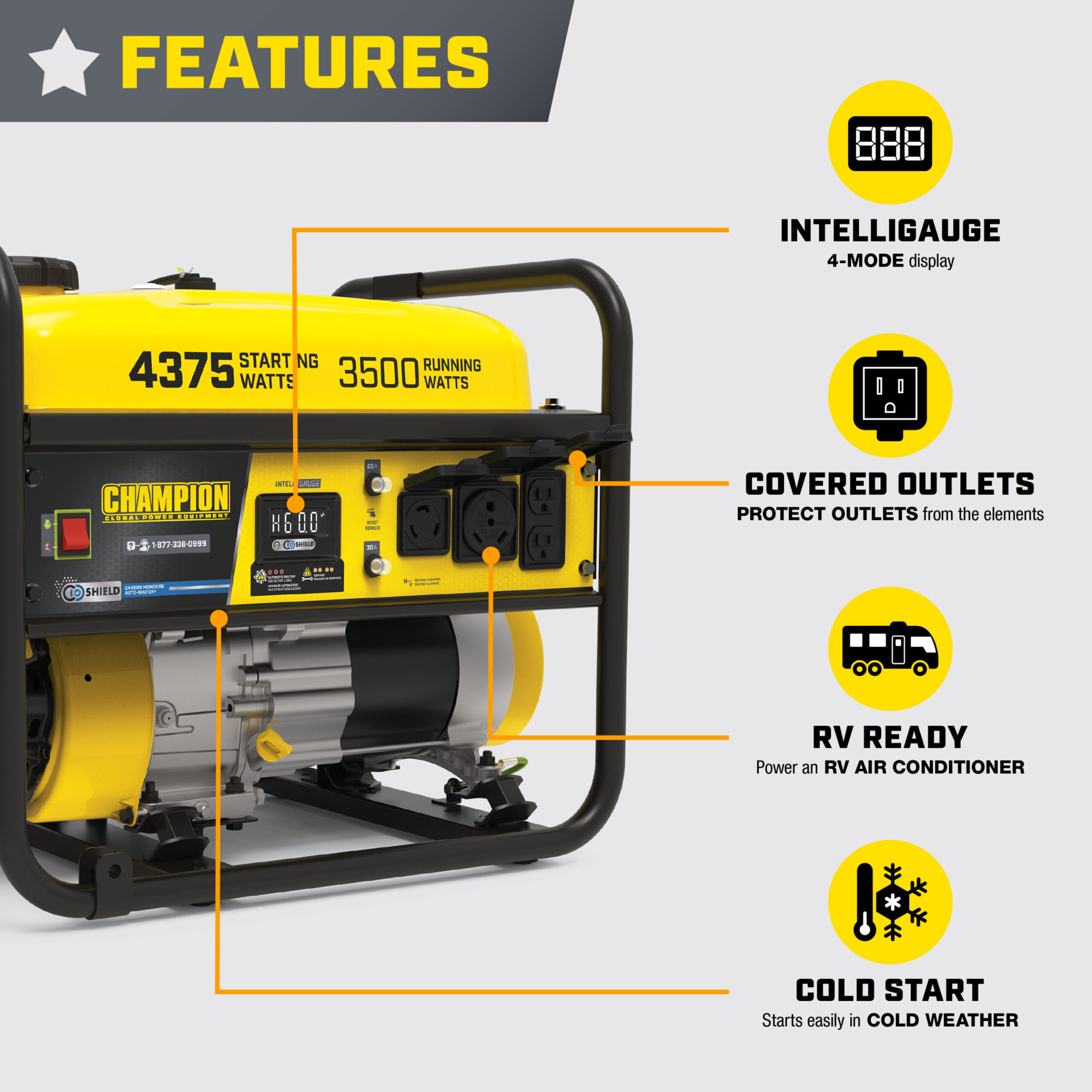

Features Designed for Safety Includes a low oil shut-off switch and holds 0.6-quarts of oil (recommended 10W-30) Reliable and Powerful At 4375 starting watts and 3500 running wats, enjoy up to 12 hours of run time on a full tank of gasoline with a noise level of 68 dBA from 23 feet Covered Outlets 120V 30A Locking, 120V 30A RV and a 120V 20A household duplex outlet – Volt Guard™ built-in surge protector prevents overloads and keeps your appliances and equipment safe Intelligauge Monitor voltage, frequency and operating hours with ease, plus features CO Shield® carbon monoxide auto shutoff system Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 201286 3500-Watt RV Ready Portable Generator with CO Shield® is the perfect combination of versatility and convenience. A powerful companion for your next camping trip or weekend project, this generator can also provide plenty of backup power for your essentials during an outage. For your RV, you’ll enjoy enough power to start and run a 15,000 BTU RV air conditioner. Power up with Champion’s reliable recoil start, plus Cold Start Technology e
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 4375W
- Gasoline Running Watts
- 3500W
- Gasoline Starting Amps at 120V
- 36.5A
- Gasoline Running Amps at 120V
- 29.2A
- Volts
- 120
- Frequency
- 60Hz
- Receptacles
- (1) 120V Duplex (5-20R), (1) 120V (TT-30R), (1) 120V Locking (L5-30R)
- DC Operation
- No
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 12 h.
- Noise Level
- 68 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 212cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.6 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- No
- PGMA Compliant
- G300-2018
- EPA Certified
- Yes
Measurements
- Length
- 23.2 in.
- Width
- 18.3 in.
- Height
- 19.9 in.
- Weight
- 99.2 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- CO Shield®
- Recoil start
- 3 Year Warranty
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
