Champion · Inverter generator
201320
4,500 starting watts and 3,650 running watts with gasoline operation · 22 h. · 64 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 4,500 starting watts
4,500W starting
Manufacturer runtime
22 h.
Operating volume
64 dB(A)
Energy source
Gasoline
4.02 gal. fuel capacity
78 lb.
Unit weight
20.9 in. × 18.3 in. × 19.4 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Inverter output
Protection

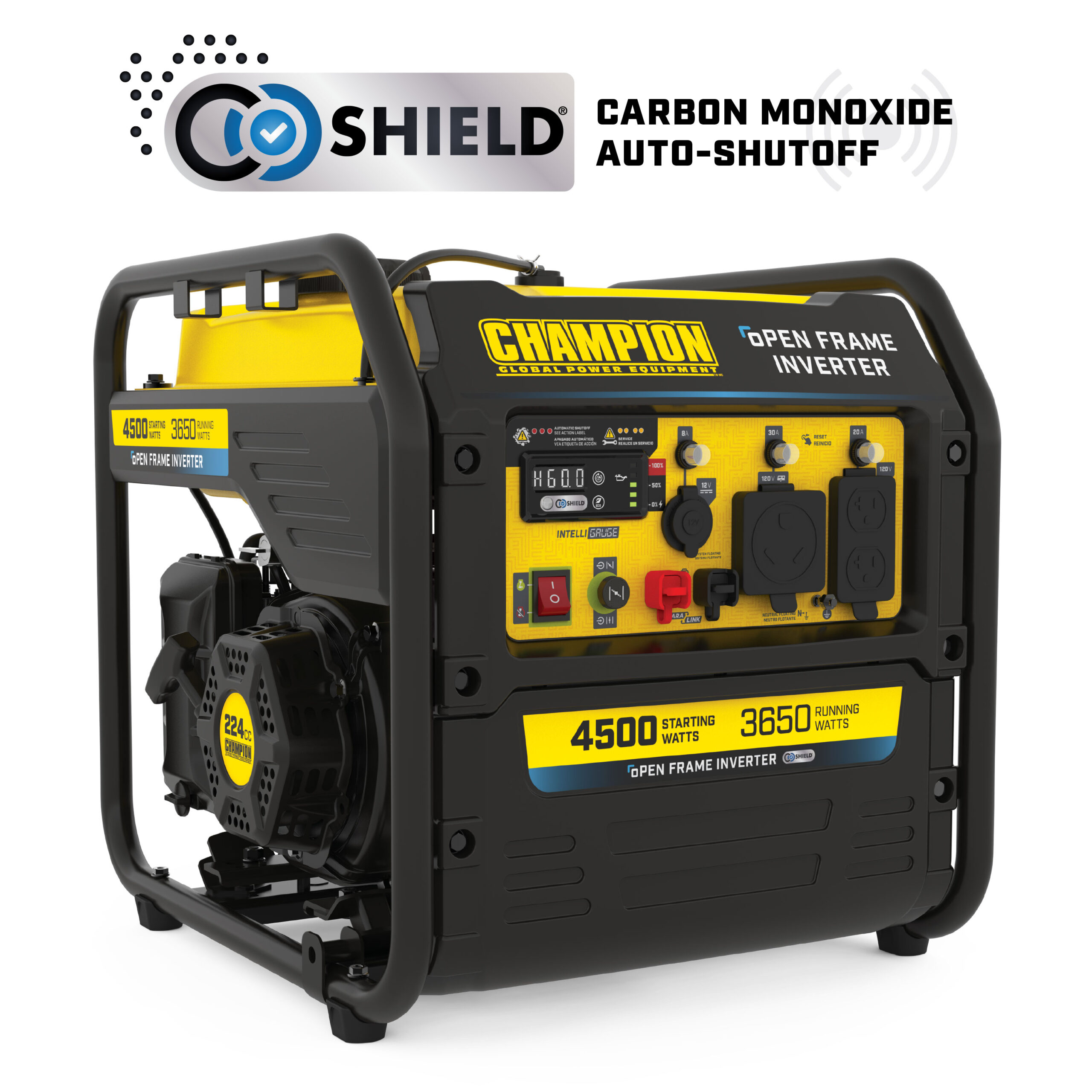

CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz
Connection details are included in the full specification table below.

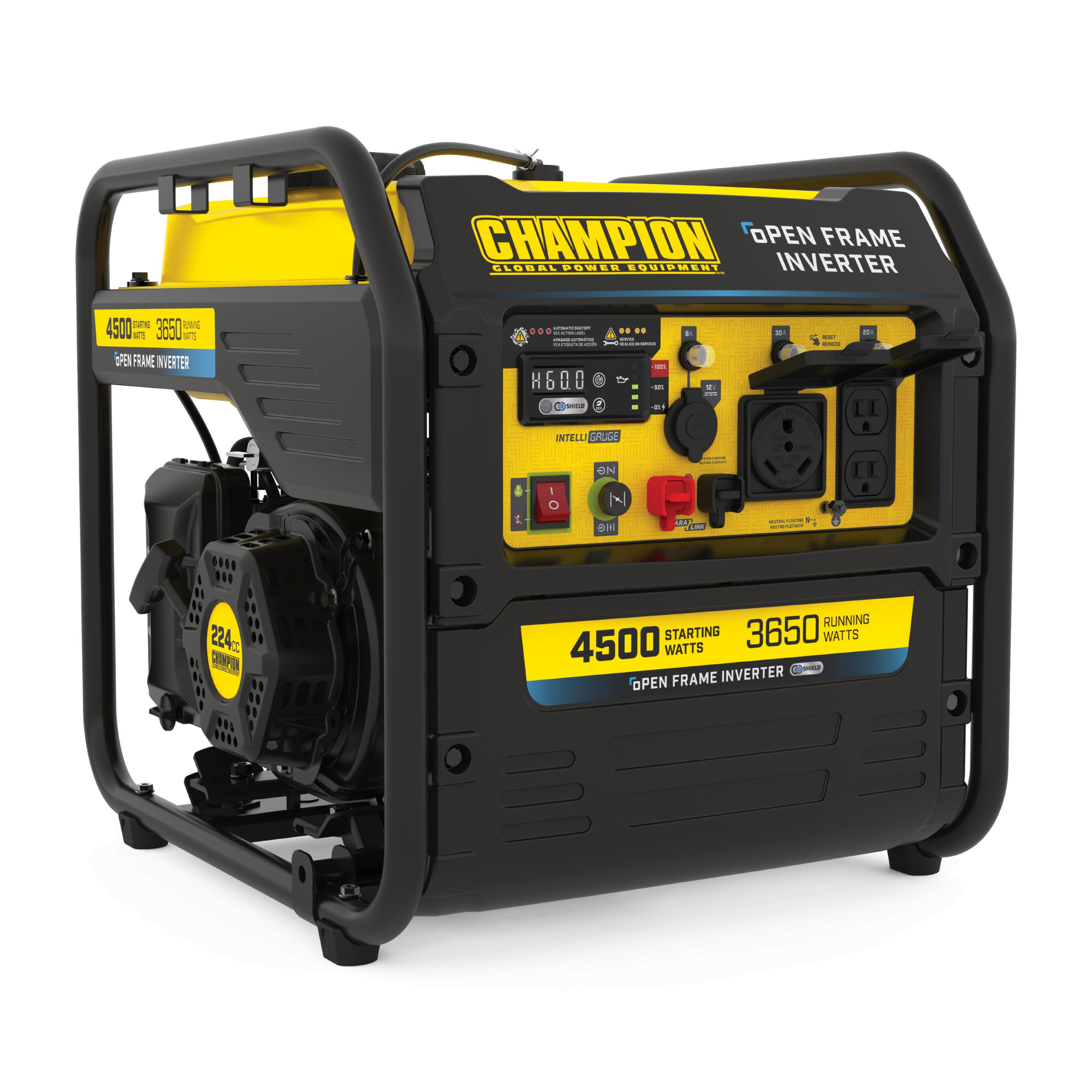

Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Advanced Design 50% quieter and 20% lighter than an equally rated traditional generator, plus features CO Shield® carbon monoxide auto shutoff system Quiet Technology and Extended Run Time 64 dBA is great for RVs, tailgating, your next project or home backup, with 4500 starting watts and 3650 running watts for up to 22 hours run time on gasoline Clean electricity for sensitive electronics RV Ready with a 120V 30A RV, a 120V 20A household duplex outlet with clean power (less than 3% THD), plus a 12V automotive-style outlet. Parallel Ready The optional, sold-separately parallel kit enables this inverter to connect with another Parallel Ready Champion Inverter or Power Station for more power and longer run time Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 4500-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life. First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters. Th
Specifications
- Portable Generator Technology
- ParaLINK®
- Gasoline Starting Watts
- 4500W
- Gasoline Running Watts
- 3650W
- Gasoline Starting Amps at 120V
- 37.5A
- Gasoline Running Amps at 120V
- 30.4A
- Volts
- 120
- Frequency
- 60Hz
- AC Receptacles
- (1) 120V AC, 30A RV (NEMA TT-30R), (1) 120V AC, 20A (NEMA-5-20R)
- DC Operation
- Yes
- DC Receptacles
- (1) 12V DC, 8A (Automotive)
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 22 h.
- Noise Level
- 64 dB(A)
- Inverter
- Open Frame
- Parallel Capability
- Yes
- Voltmeter
- Intelligauge with Power Meter
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 224cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.02 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.6 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- No
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 20.9 in.
- Width
- 18.3 in.
- Height
- 19.4 in.
- Weight
- 78 lb.
Best-fit uses
- Home essentials

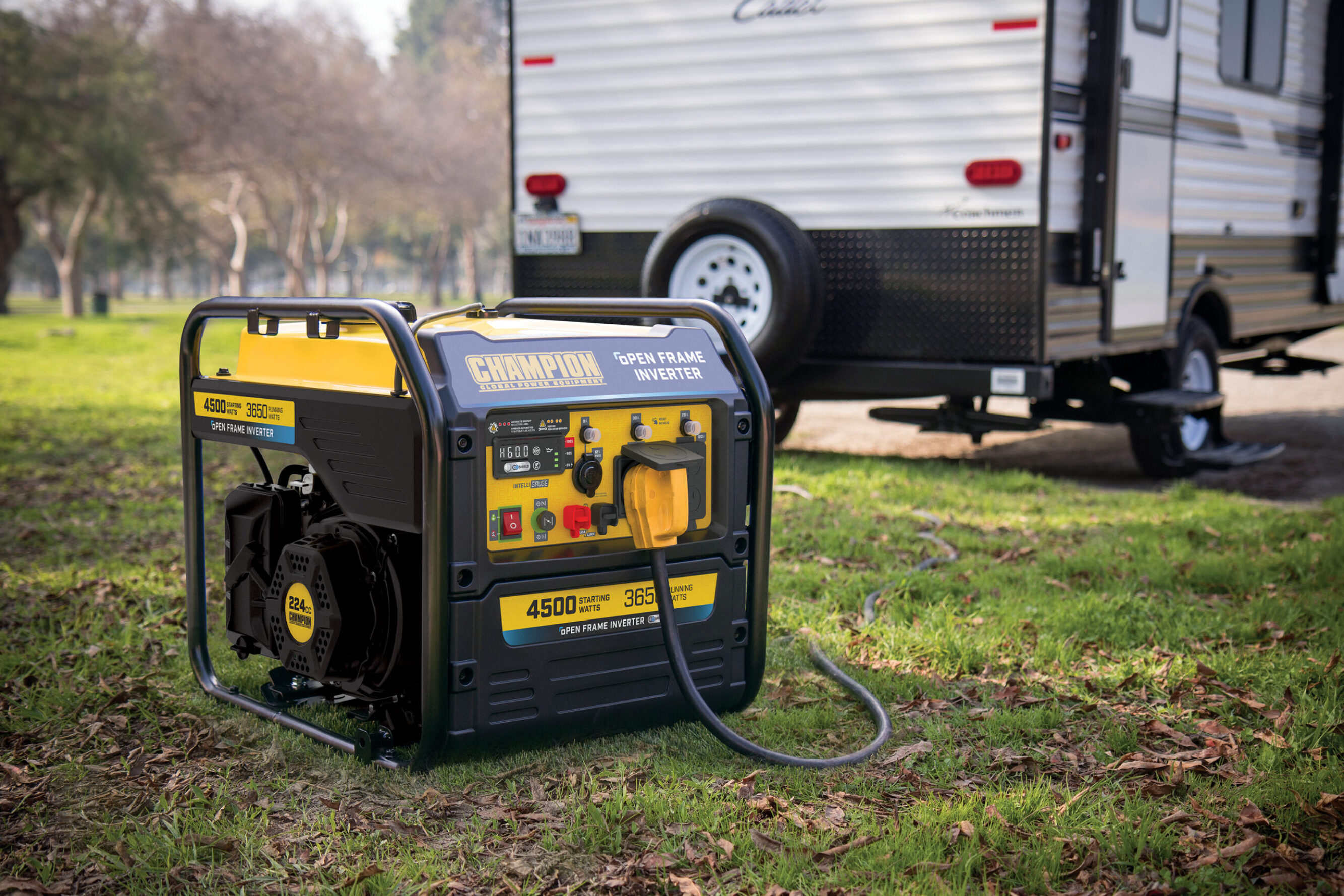

- RV power
- Tools and outdoor projects
Standout features
- Clean inverter power
- ParaLINK®
- Recoil start
- Parallel capable
- 3 Year Warranty
