Champion · Portable generator
201414
16,875 starting watts and 13,500 running watts with gasoline operation · 8 h. · 79 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 16,875 starting watts
16,875W starting
Manufacturer runtime
8 h.
Operating volume
79 dB(A)
Energy source
Gasoline
11 gal. fuel capacity
338 lb.
Unit weight
32.7 in. × 33.7 in. × 33 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Electric
Power system
Conventional alternator
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Ultra-powerful At 16,875 starting watts and 13,500 running watts, enjoy up to 8 hours of run time on a full tank of gasoline with a noise level of 79 dBA from 23 feet Electric start Trust the reliable 739cc Milwaukee Series V-Twin Engine with its battery-included, push-button electric start, plus features CO Shield® carbon monoxide auto shutoff system Easy Monitoring and Operation The Intelligauge with Power Meter tracks voltage, hertz, run time and output to monitor performance and help plan maintenance intervals. Lift Hook and Easy Transport Includes a built-in lift hook for safe transport, loading, and unloading, plus 12 in. never-flat tires and a foldaway handle for improved maneuverability and storage. Champion Support Comes with a 3-year limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country. Description The Champion Power Equipment 201414 13,500 Portable Generator with CO Shield® is designed with your safety and convenience in mind. Owning this rugged 13,500-watt generator means the next time there’s an outage, the power in your house stays on. For projects, the massive 739cc Milwaukee
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 16875W
- Gasoline Running Watts
- 13500W
- Gasoline Starting Amps at 120V
- 140.6A
- Gasoline Starting Amps at 240V
- 70.3A
- Gasoline Running Amps at 120V
- 112.5A
- Gasoline Running Amps at 240V
- 56.25A
- Volts
- 120/240
- Frequency
- 60Hz
- AC Receptacles
- (1) 120/240V 50A (14-50R), (1) 120/240V 30A Locking (L14-30R), (1) 120V 30A Locking (L5-30R), (2) 120V 20A Duplex GFCI (5-20R)
- DC Operation
- No
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 8 h.
- Noise Level
- 79 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge with Power Meter
- Automatic Voltage Regulation
- Yes
- Battery
- Yes
- Start Type
- Electric
- Engine Brand
- Champion
- Engine Size
- 739cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 11 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 5W-30
- Engine Oil Capacity
- 1.7 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 12 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes

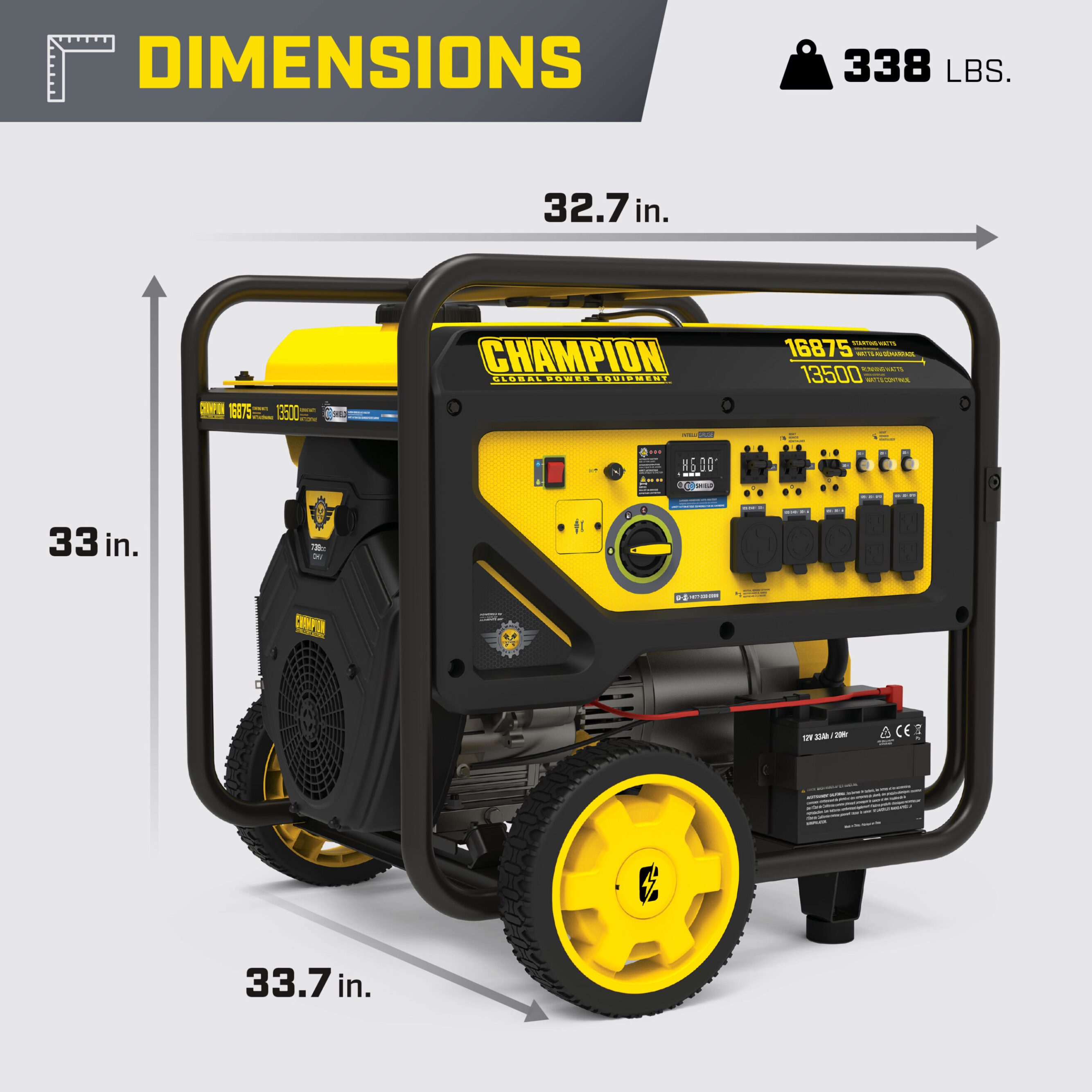

Measurements
- Length
- 32.7 in.
- Width
- 33.7 in.
- Height
- 33 in.
- Weight
- 338 lb.
Best-fit uses
- Whole-home essentials
- Major appliances and pumps
- Emergency backup
Standout features
- CO Shield®
- Electric start
- 3 Year Warranty
