Champion · Portable generator
201431
11,500 starting watts and 9,200 running watts with gasoline operation · 11.5 h. · 74 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 11,500 starting watts
11,500W starting
Manufacturer runtime
11.5 h.
Operating volume
74 dB(A)
Energy source
Gasoline
7.7 gal. fuel capacity
209 lb.
Unit weight
28 in. × 25.9 in. × 26.9 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric
Power system
Conventional alternator
Protection

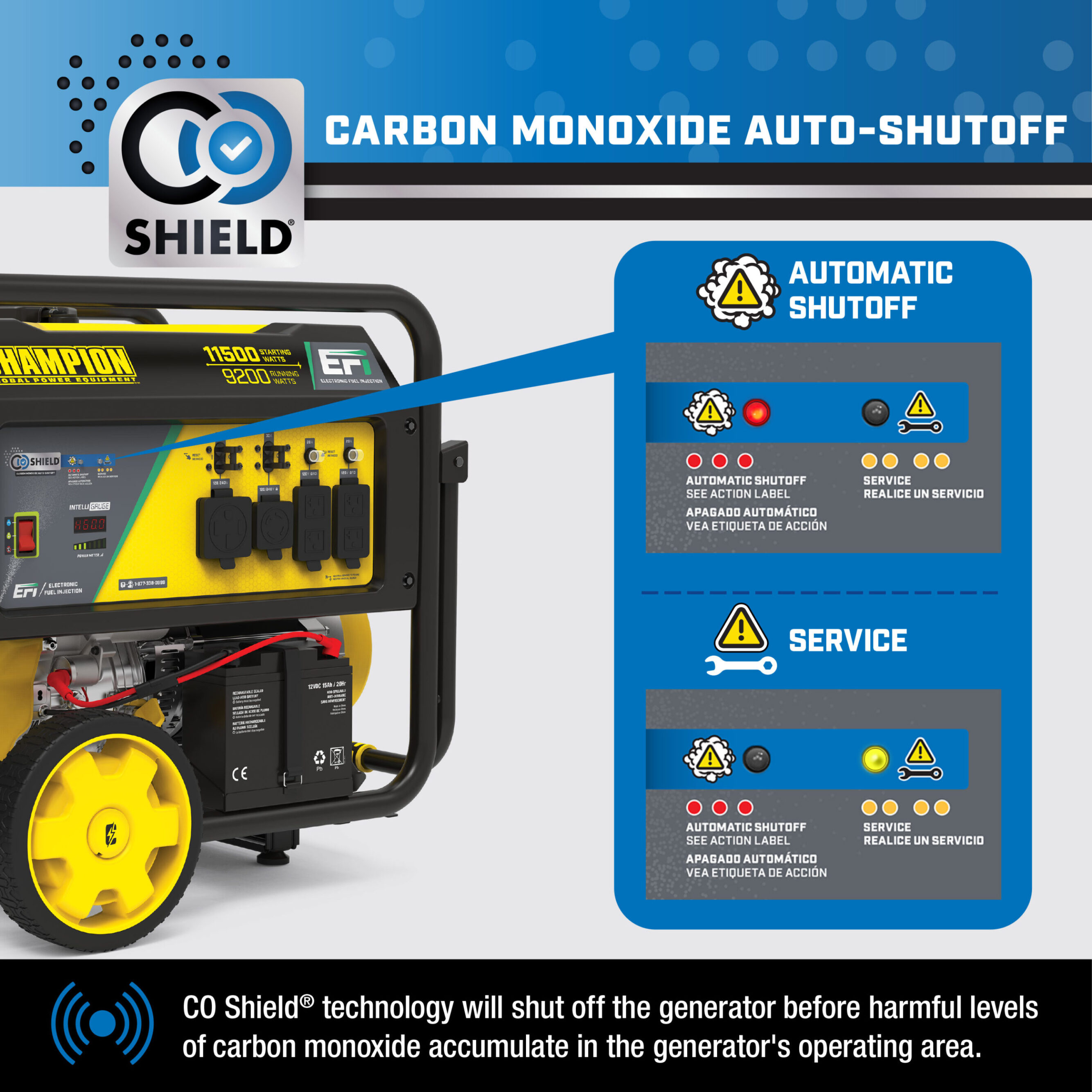

CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

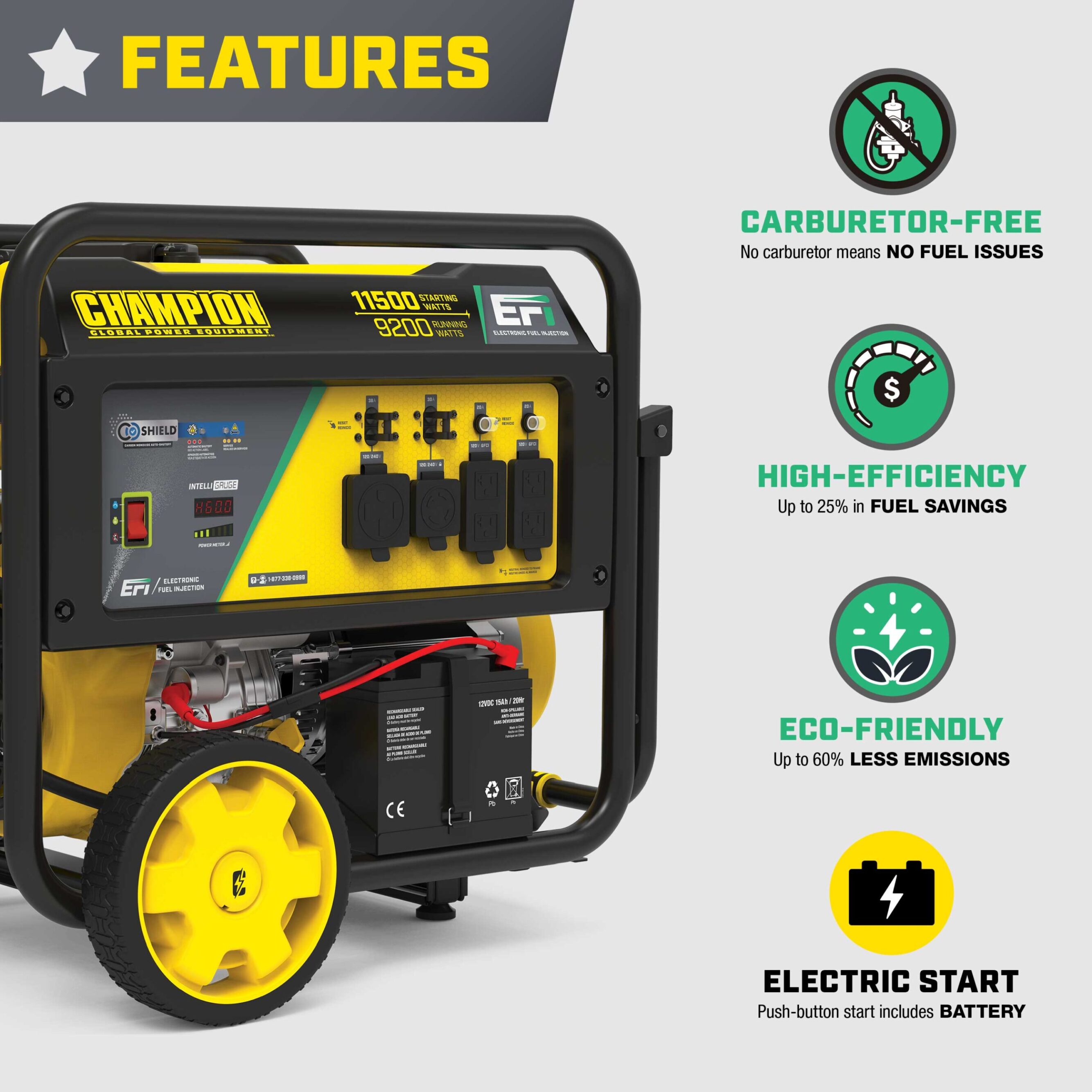

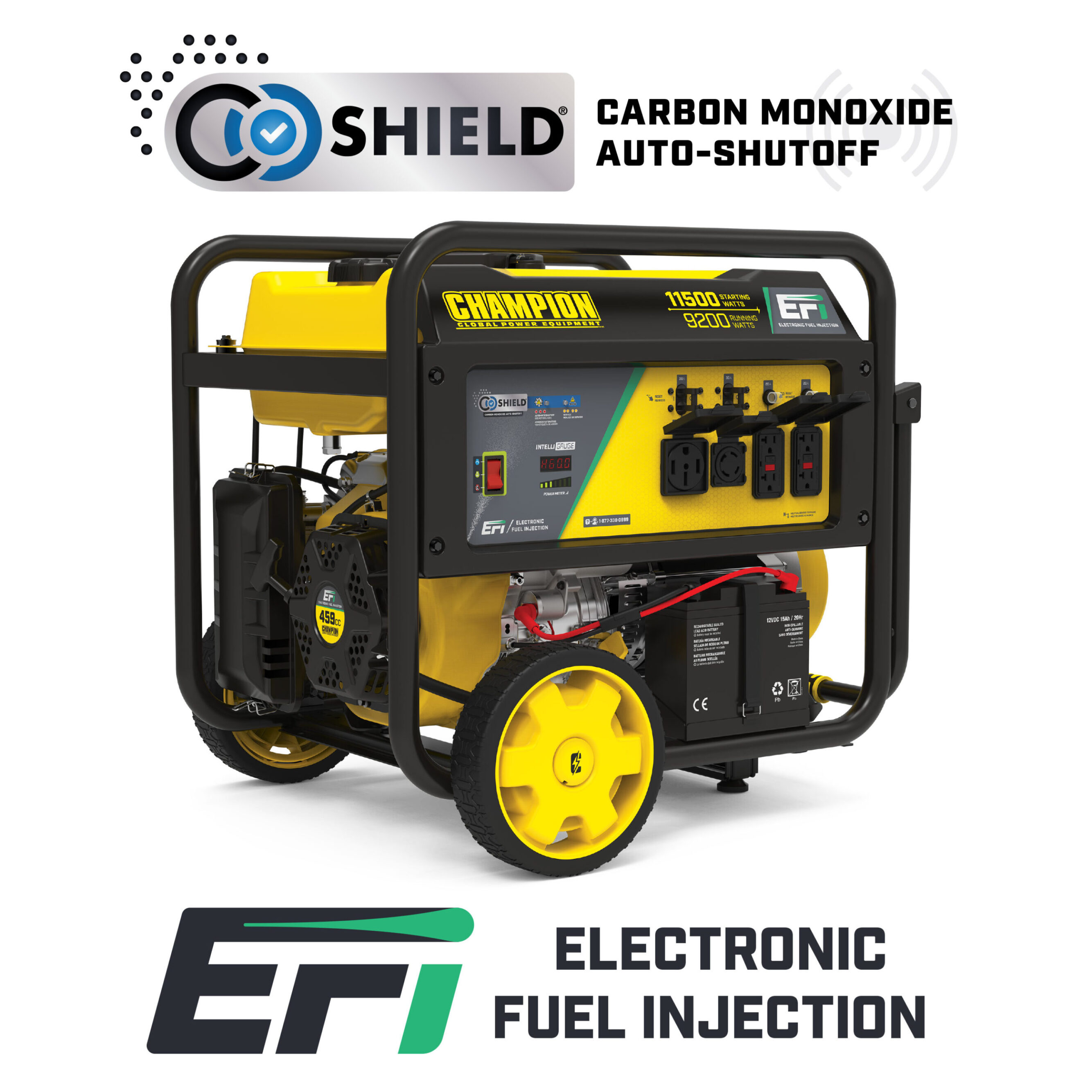

Features Simplified Storage No carburetor means fewer fuel-related issues, so you are always prepared for your next project at all temperatures and altitudes. The electronic fuel injection (EFI) engine also makes the generator easier to store without concerns about clogs or gum-ups. Greater Fuel Savings Save up to 25% on fuel with the high-efficiency EFI system, which adjusts automatically for optimal combustion in any conditions. Optimal Performance The powerful EFI engine ensures peak efficiency and dependable performance at all temperatures and altitudes, delivering consistent power for demanding jobs. Electric Start Trust the durable 459cc Champion EFI engine with electric start battery included and up to 11.5 hours meaning you can work longer Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 201431 9200-Watt Portable Generator with CO shield delivers peace of mind because you know you’ll always be ready for any project or prepared for any emergency. The durable 459cc Champion engine with electronic fuel injection (EFI) technology eliminates carburetor-related storage concerns a
Specifications
- Portable Generator Technology
- CO Shield®, Electronic Fuel Injection
- Gasoline Starting Watts
- 11500W
- Gasoline Running Watts
- 9200W
- Gasoline Starting Amps at 120V
- 95.8A
- Gasoline Starting Amps at 240V
- 47.9A
- Gasoline Running Amps at 120V
- 76.7A
- Gasoline Running Amps at 240V
- 38.3A
- Volts
- 120/240
- Frequency
- 60Hz
- AC Receptacles

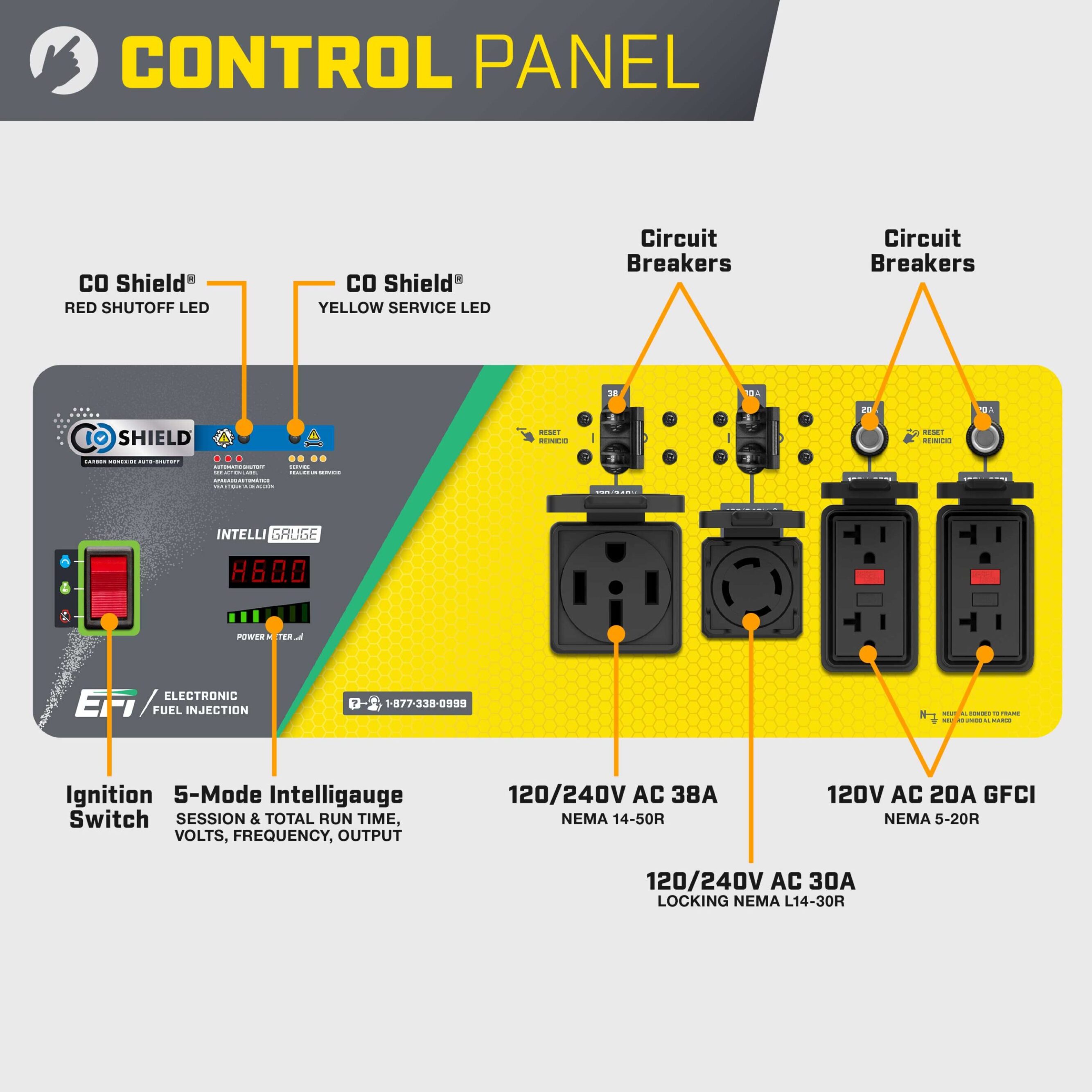

- (2) 120V 20A GFCI Duplex (5-20R); (1) 120/240V 30A Locking (L14-30R); (1) 120/240V 38A (14-50R)
- DC Operation
- No
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 11.5 h.
- Noise Level
- 74 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge with Power Meter
- Automatic Voltage Regulation
- Yes
- Battery
- Yes
- Start Type
- Recoil, Electric
- Engine Brand
- Champion
- Engine Size
- 459cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline
- Fuel Gauge
- No
- Gasoline Capacity
- 7.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 1.2 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 9.5 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 28 in.
- Width
- 25.9 in.
- Height
- 26.9 in.
- Weight
- 209 lb.
Best-fit uses
- Whole-home essentials
- Major appliances and pumps
- Emergency backup
Standout features
- CO Shield®, Electronic Fuel Injection
- Recoil, Electric start
- 3 Year Warranty
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
