Champion · Inverter generator
201444
5,500 starting watts and 4,000 running watts with gasoline operation · 11 h. · 61 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 5,500 starting watts
5,500W starting
Manufacturer runtime
11 h.
Operating volume
61 dB(A)
Energy source
Gasoline
2.25 gal. fuel capacity
92.4 lb.
Unit weight
23.5 in. × 18 in. × 20.1 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Inverter output
Protection
CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

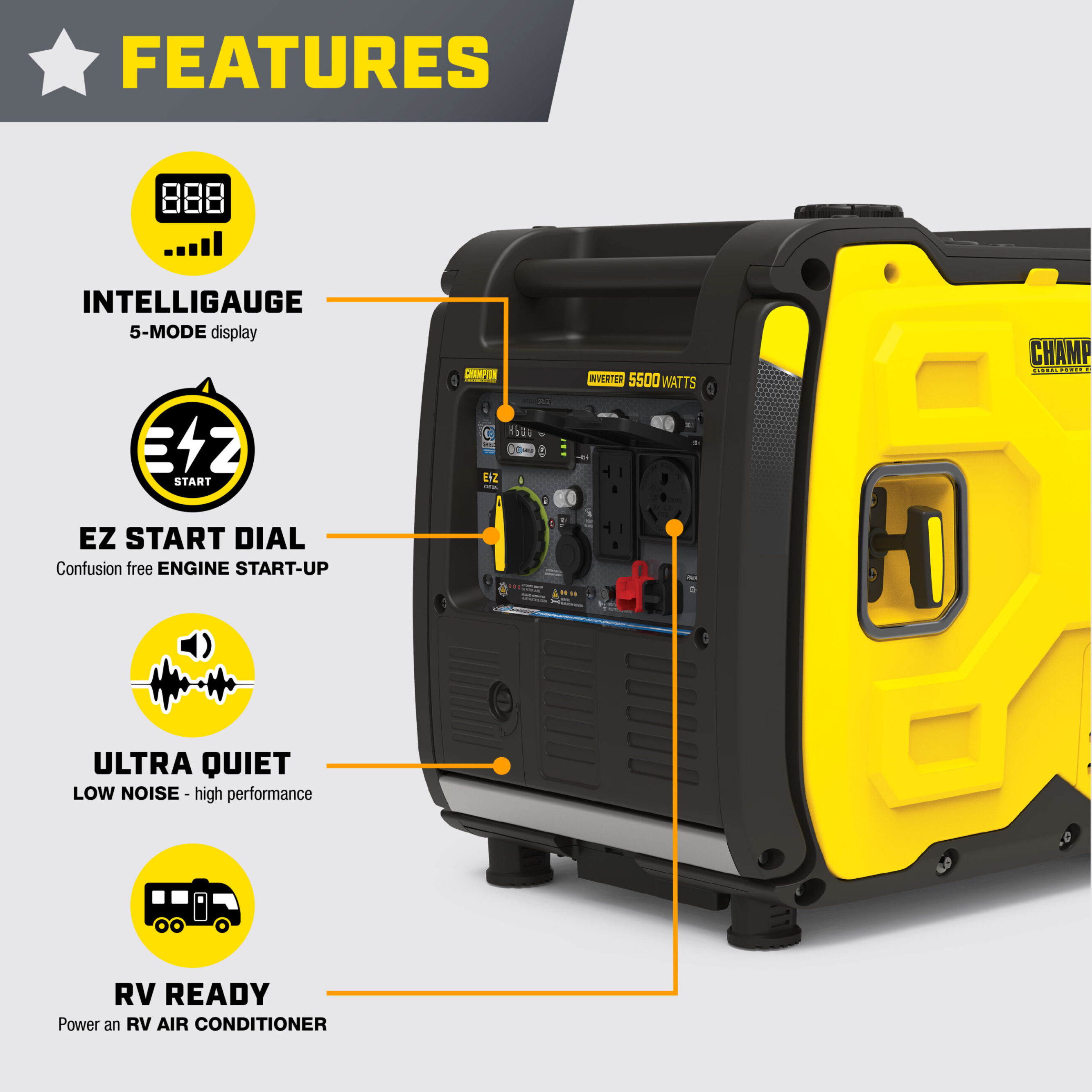

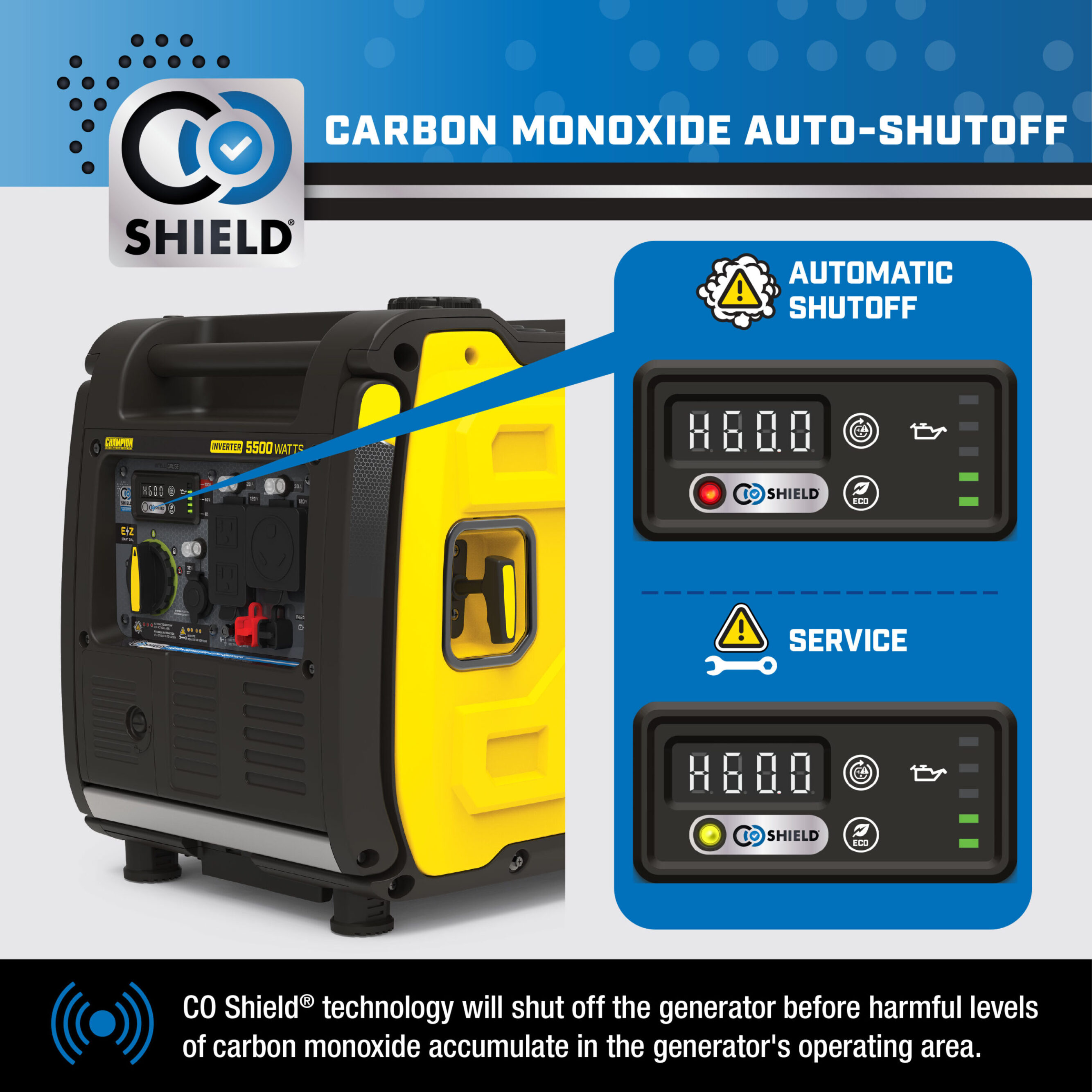

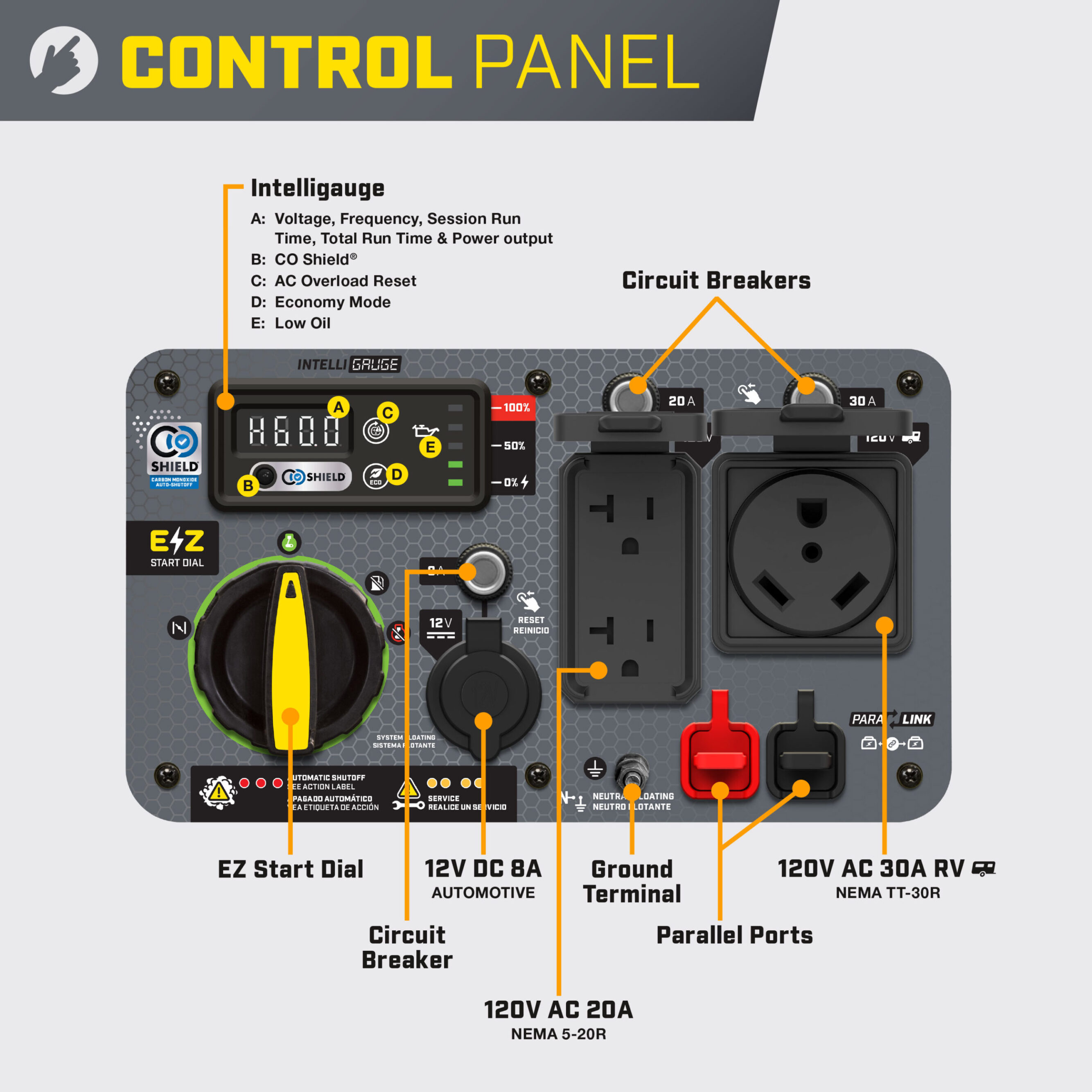

Features Quiet Technology and Extended Run Time 61 dBA is great for RVs, tailgating, or camping with 5500 starting watts and 4000 running watts and up to 11 hours run time on only 2.25 gallons of gasoline Intelligauge with Power Meter Monitor voltage, frequency and operating hours with ease, plus features CO Shield® carbon monoxide auto shutoff system, and the EZ Start Dial simplifies startup while Economy Mode monitors power consumption in real time Clean Power for Sensitive Electronics 120V 30A RV outlet, a 120V 20A household duplex outlet with clean power (less than 3% THD), and a 12V regulated automotive-style outlet Parallel Ready The optional parallel kit (sold separately) enables this inverter to connect with another 5500-watt or higher Champion inverter to double your output power Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 5500-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials. Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start
Specifications
- Portable Generator Technology
- ParaLINK®
- Gasoline Starting Watts
- 5500W
- Gasoline Running Watts
- 4000W
- Gasoline Starting Amps at 120V
- 45.8A
- Gasoline Running Amps at 120V
- 33.3A
- Volts
- 120
- Frequency
- 60Hz
- AC Receptacles
- (1) 120V 20A Duplex (5-20R), (1) 120V 30A (TT-30R), Parallel
- DC Operation
- Yes
- DC Receptacles
- (1) 12V 8A Automotive (Regulated)
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 11 h.
- Noise Level
- 61 dB(A)
- Inverter
- Enclosed
- Parallel Capability
- Yes
- Voltmeter
- Intelligauge with Power Meter
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 224cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 2.25 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.5 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 5 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 23.5 in.
- Width
- 18 in.
- Height
- 20.1 in.
- Weight
- 92.4 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Clean inverter power
- ParaLINK®
- Recoil start
- Parallel capable
- 3 Year Warranty
