Champion · Portable generator
201491
5,000 starting watts and 4,000 running watts with gasoline operation · 14 h. · 68 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 5,000 starting watts
5,000W starting
Manufacturer runtime
14 h.
Operating volume
68 dB(A)
Energy source
Gasoline
4.7 gal. fuel capacity
103 lb.
Unit weight
23.2 in. × 18.3 in. × 20.2 in.
Length × width × height
- Warranty
- 3-year limited warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Conventional alternator
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
What's included Engine Oil Oil Funnel
Specifications
- Portable Generator Technology

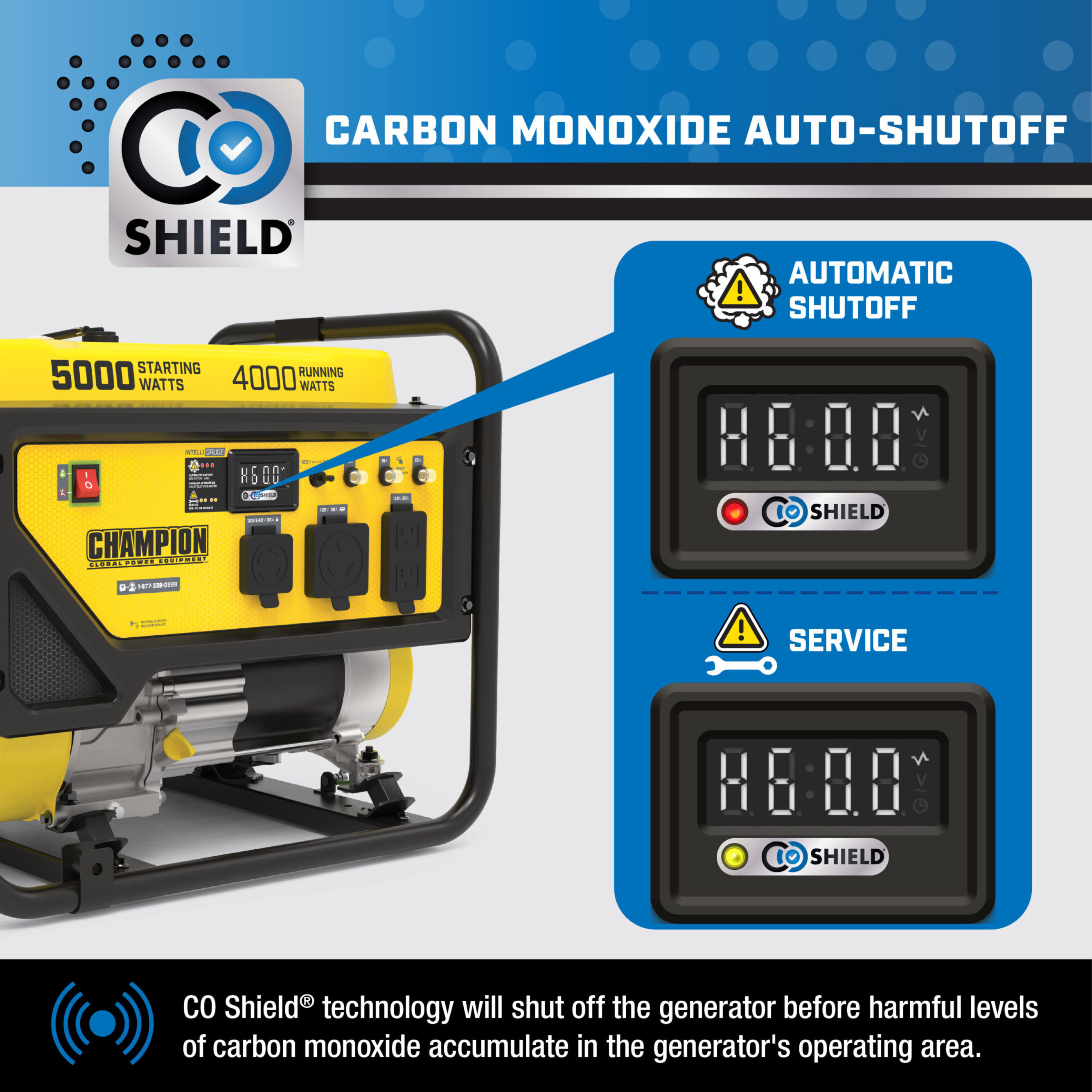

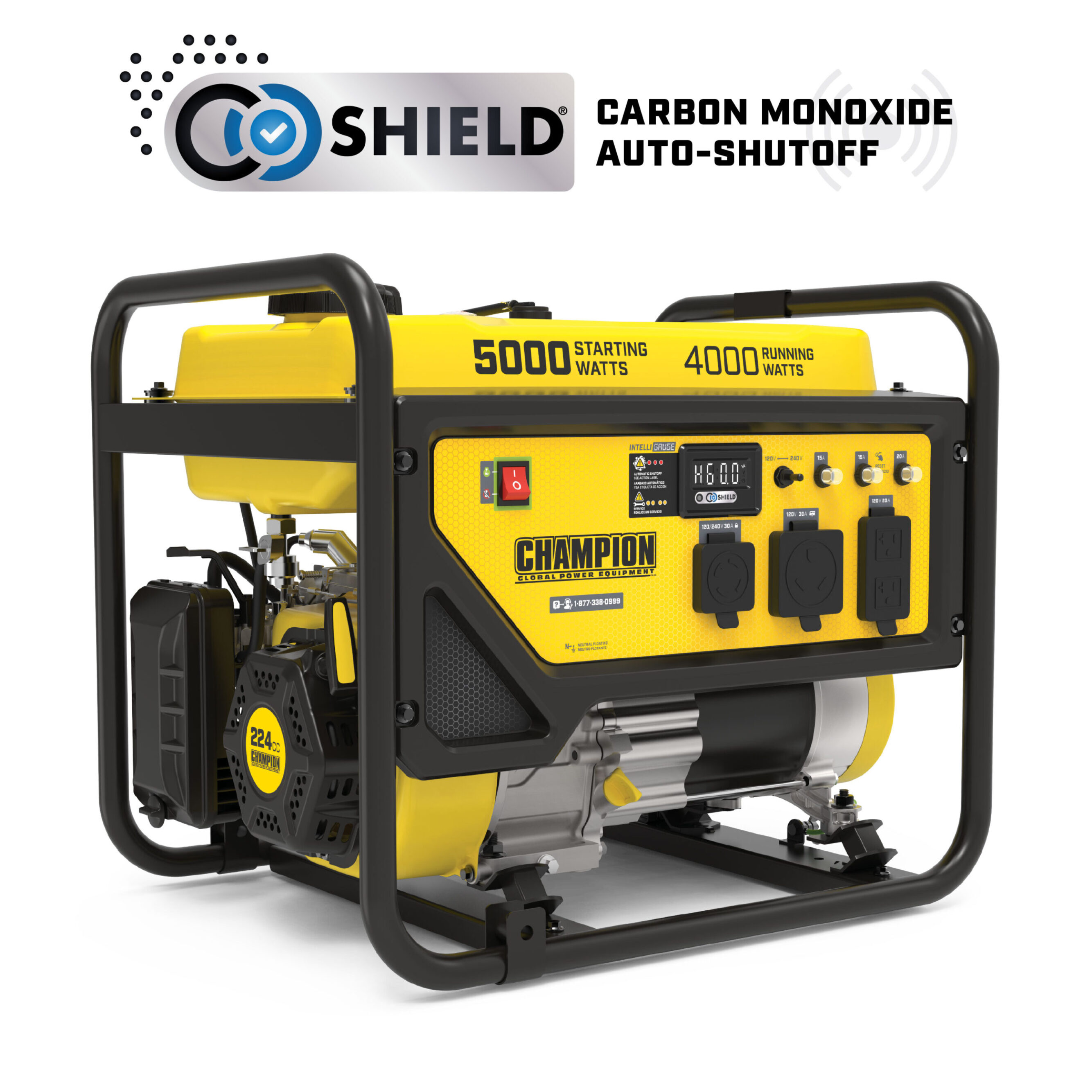

- CO Shield®
- Gasoline Starting Watts
- 5000W
- Gasoline Running Watts
- 4000W
- Gasoline Starting Amps at 120V
- 41.7A
- Gasoline Starting Amps at 240V
- 20.8A
- Gasoline Running Amps at 120V
- 33.3A
- Gasoline Running Amps at 240V
- 16.7A
- Volts
- 120/240
- Frequency
- 60Hz

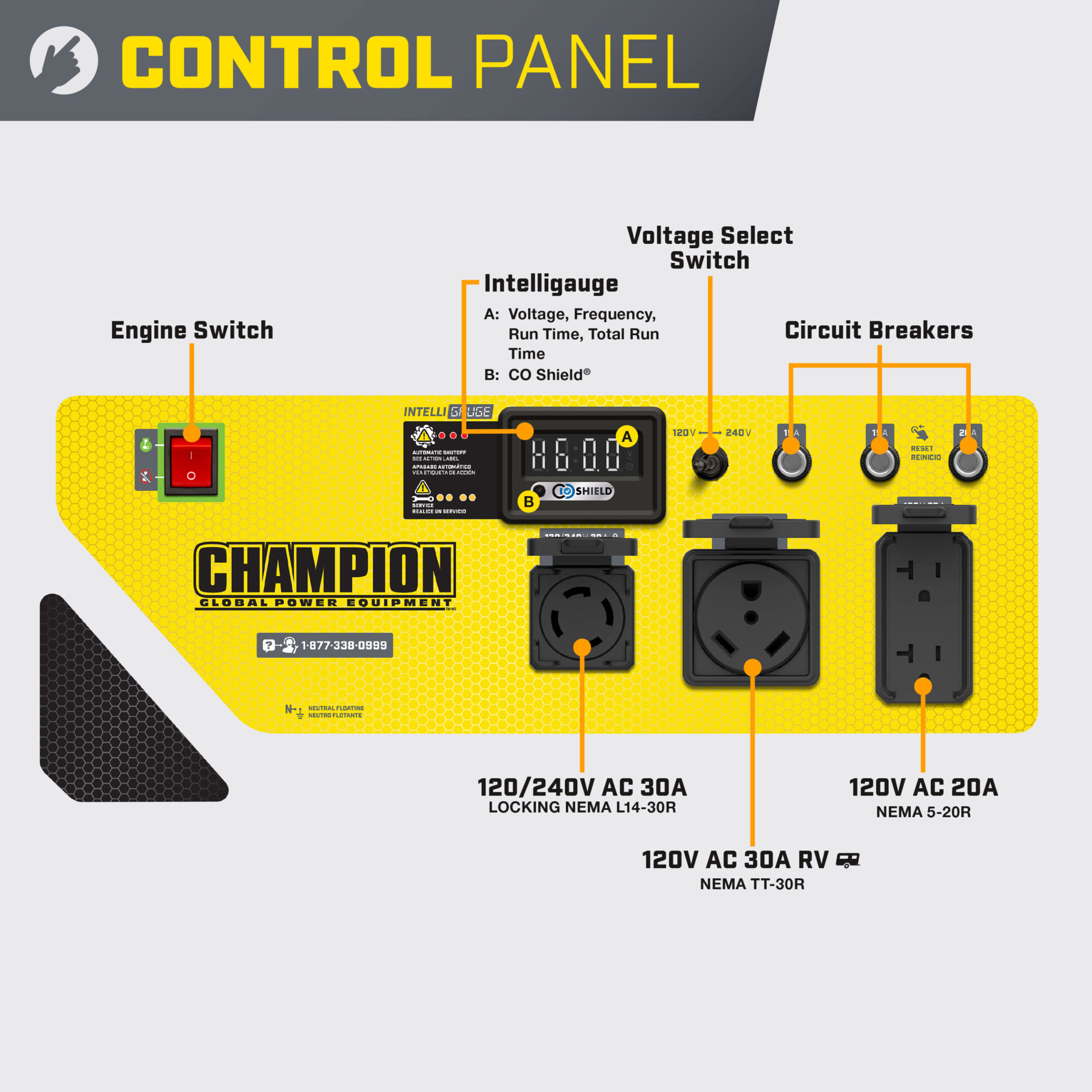

- AC Receptacles
- (1) 120/240V 30A Locking (L14-30R), (1) 120V 30A (TT-30R), (1) 120V 20A Duplex (5-20R)
- DC Operation
- No
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 14 h.
- Noise Level
- 68 dB(A)
- Inverter
- No

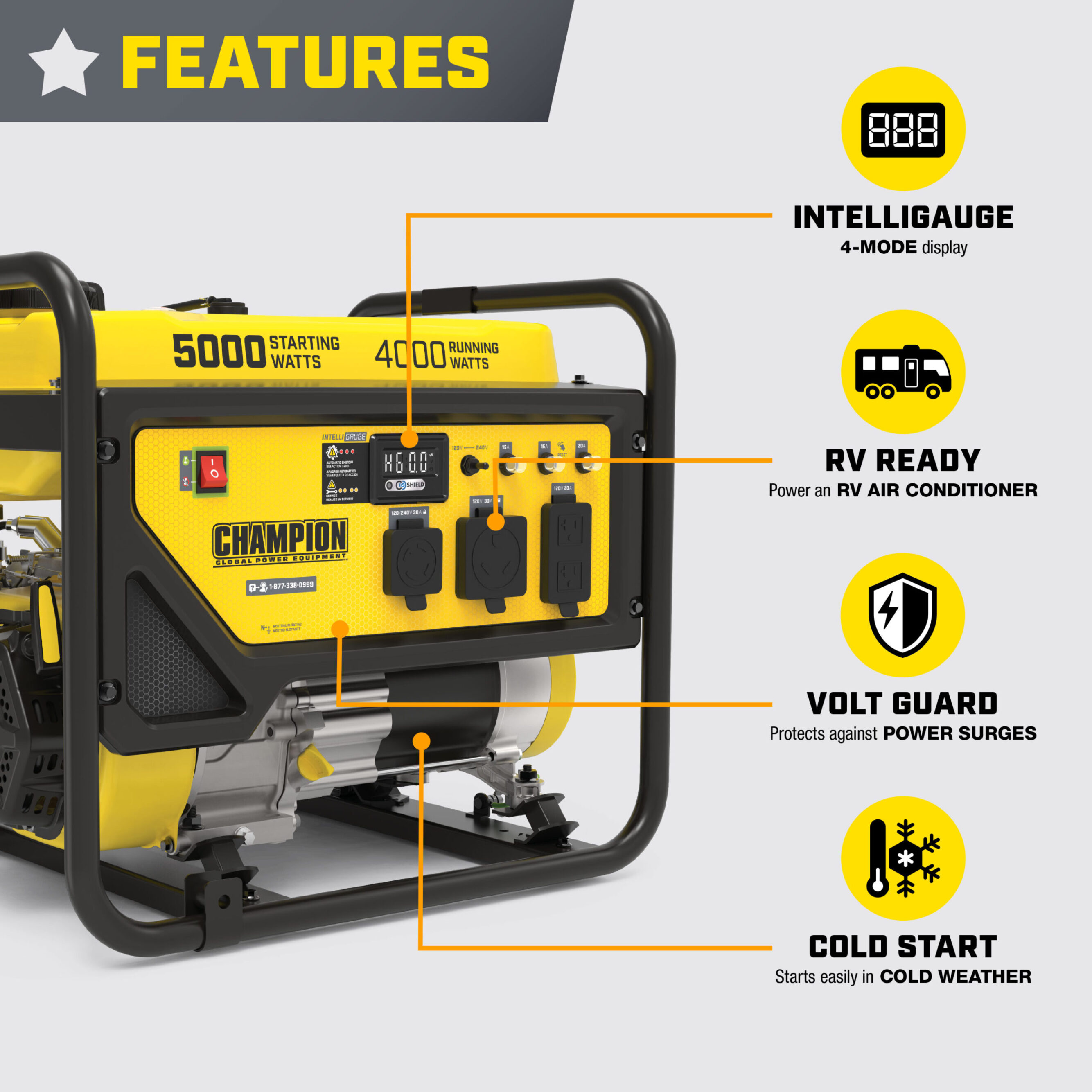

- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 224cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.5 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- No
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 23.2 in.
- Width
- 18.3 in.
- Height
- 20.2 in.
- Weight
- 103 lb.
Best-fit uses
- Home essentials

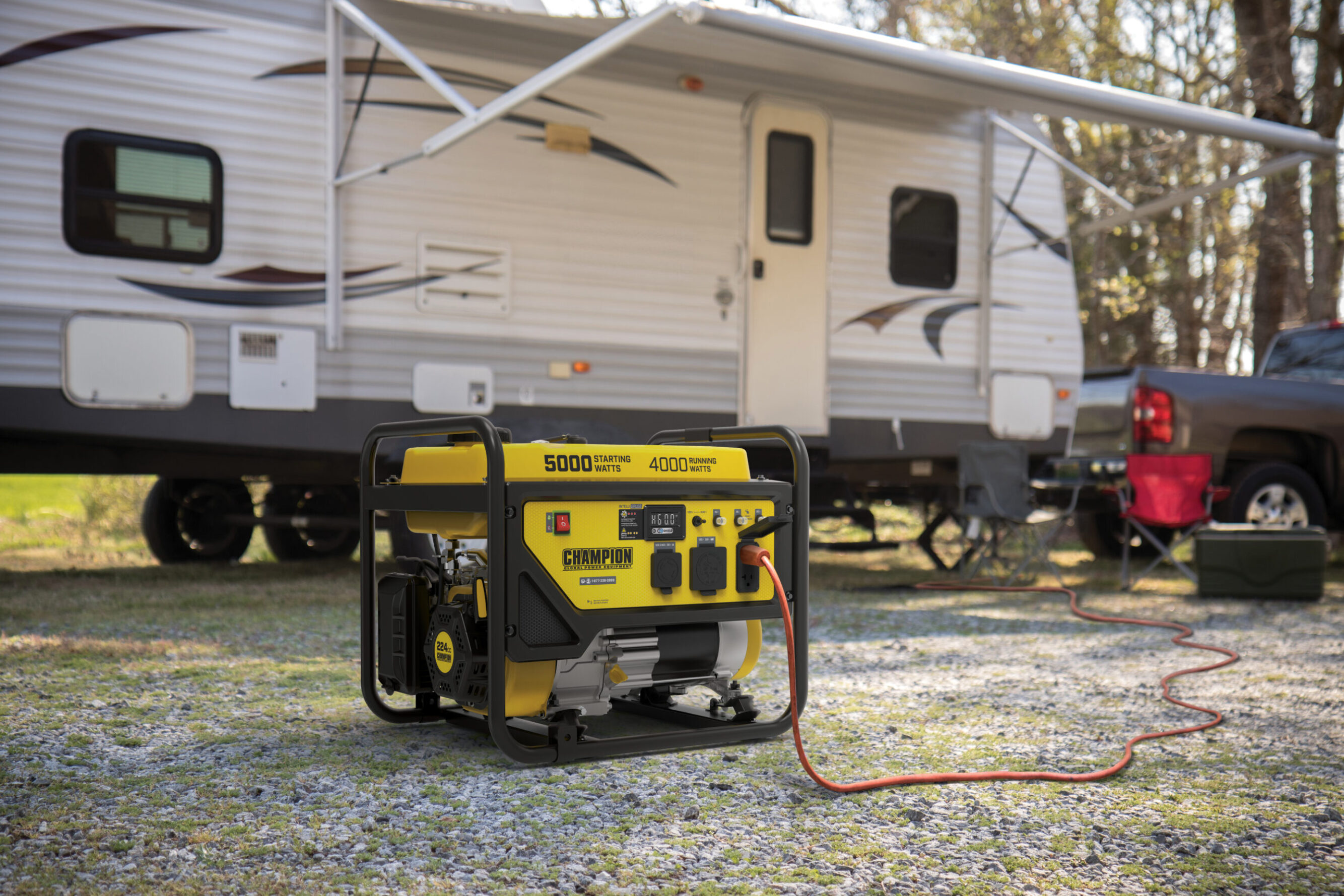

- RV power
- Tools and outdoor projects
Standout features
- CO Shield®
- Recoil start
- 3-year limited warranty
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
