Champion · Portable generator
201502
4,550 starting watts and 3,650 running watts with gasoline operation · 14 h. · 68 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 4,550 starting watts
4,550W starting
Manufacturer runtime
14 h.
Operating volume
68 dB(A)
Energy source
Gasoline
4.7 gal. fuel capacity
117.7 lb.
Unit weight
24.4 in. × 23.9 in. × 22.5 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric, Wireless Remote
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric, Wireless Remote
Power system
Conventional alternator
Protection

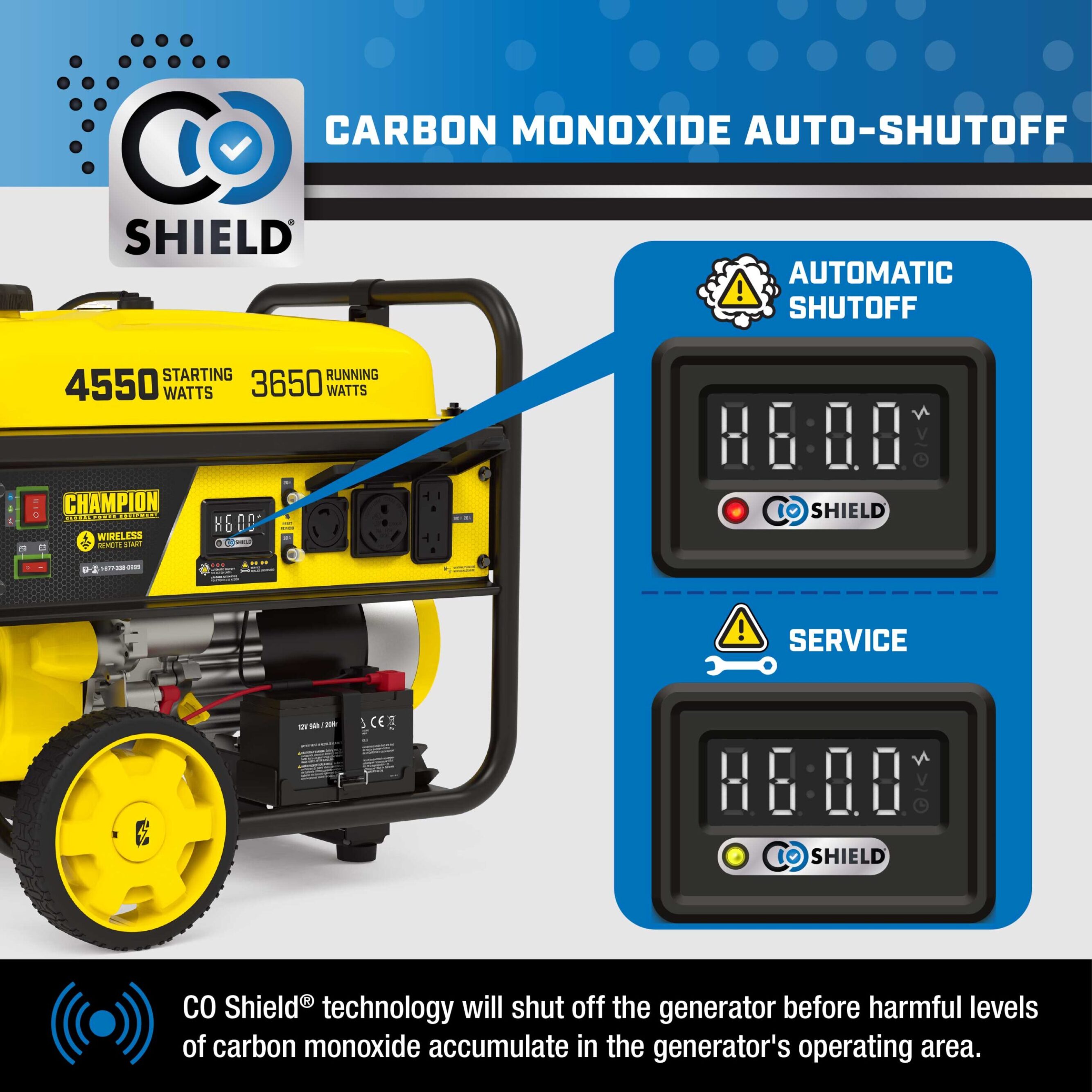

CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Wireless Remote Start Start and stop with ease from up to 80 feet away with the included wireless remote key fob – push-button power and convenience like never before Intelligauge Monitors voltage, frequency and operating hours, plus features CO Shield® carbon monoxide auto shutoff system Reliable and Powerful At 4550 starting watts and 3650 running watts, enjoy up to 14 hours of run time on a full tank of gasoline with a noise level of 68 dBA from 23 feet Covered Outlets 120V 30A locking, 120V 30A RV, and a 120V 20A duplex outlet; the Volt Guard™ built-in surge protector prevents overloads and keeps your appliances and equipment safe Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description Champion Power Equipment makes powering your life easier than ever with the 201502 3650-Watt RV Ready Portable Generator with CO Shield® and Wireless Remote Start. With enough power to start and run a 15,000 BTU RV air conditioner, you can also use this feature-packed generator to power the essentials in your home the next time there’s an outage. For projects, the 224cc Champion single-cylinder OHV engine has what it takes
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 4550W
- Gasoline Running Watts
- 3650W
- Gasoline Starting Amps at 120V
- 37.9A
- Gasoline Running Amps at 120V
- 30.4A
- Volts
- 120
- Frequency
- 60Hz

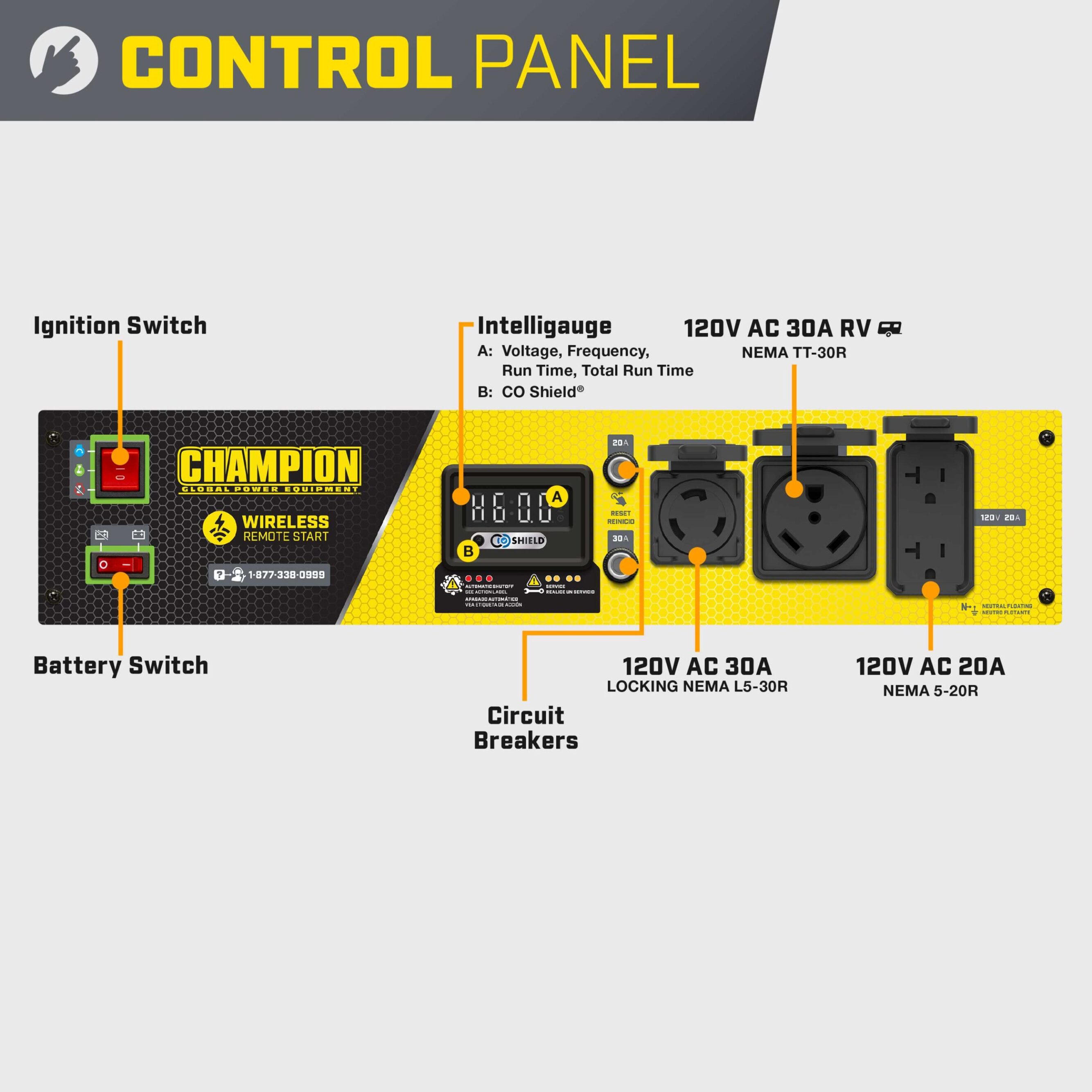

- AC Receptacles
- (1) 120V 30A Locking (L5-30R), (1) 120V 30A (TT-30R), (1) 120V 20A Duplex (5-20R)
- DC Operation
- No
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 14 h.
- Noise Level
- 68 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- Yes
- Start Type
- Recoil, Electric, Wireless Remote
- Engine Brand
- Champion
- Engine Size
- 224cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.5 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 8 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 24.4 in.
- Width
- 23.9 in.
- Height
- 22.5 in.
- Weight
- 117.7 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- CO Shield®
- Recoil, Electric, Wireless Remote start
- 3 Year Warranty
