Champion · Portable generator
201504
4,550 starting watts and 3,650 running watts with gasoline, propane operation · 10.5 h. · 68 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 4,550 starting watts
4,550W starting
4,100W starting
Manufacturer runtime
10.5 h.
Operating volume
68 dB(A)
Energy source
Gasoline, Propane (LPG)
4.7 gal. fuel capacity
127 lb.
Unit weight
24.7 in. × 25 in. × 22.2 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric
Power system
Conventional alternator
Protection
CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz
Connection details are included in the full specification table below.

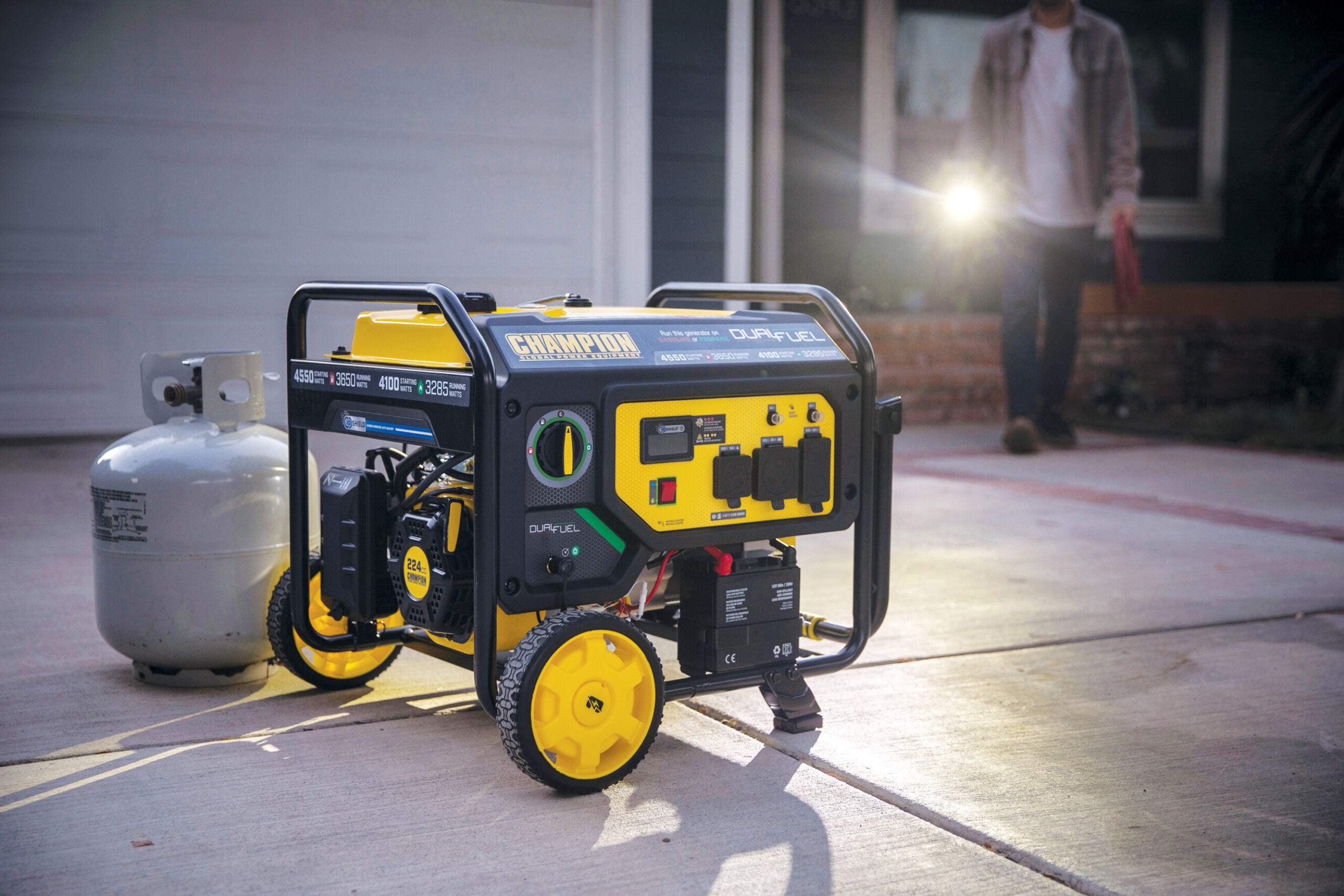

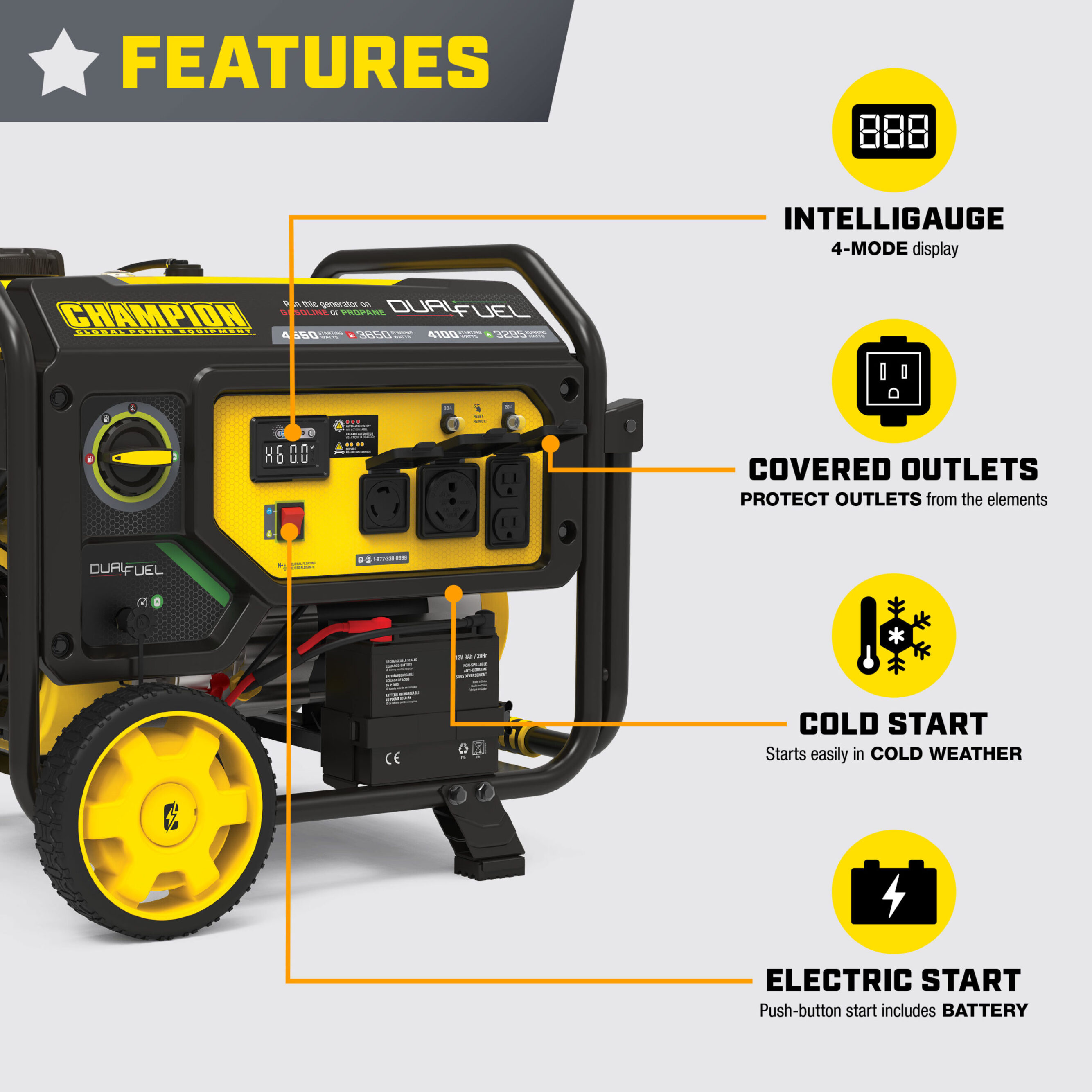

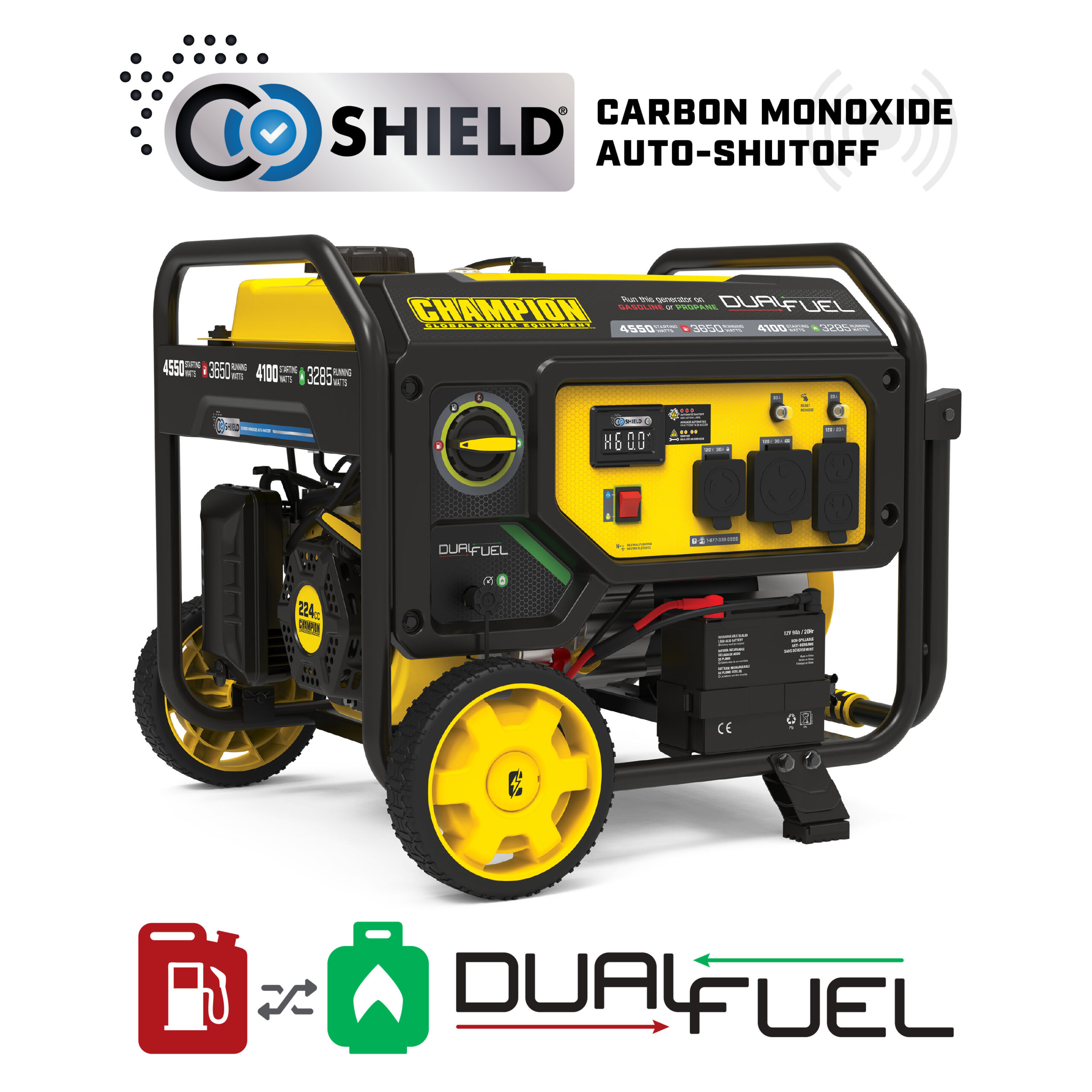

Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Dual Fuel Operate your 3650-watt portable generator right out of the box on either gasoline or propane, plus features CO Shield® carbon monoxide auto shutoff system Electric Start Power up the 224cc Champion engine with the handy rocker switch, battery included Intelligauge Keep track of voltage, frequency and run-time hours to easily monitor output and track maintenance intervals while the UL-recognized sensor uses an LED to indicate CO shutoff or fault Powerful At 4550 starting watts and 3650 running watts on gasoline and 4100 starting watts and 3285 running watts on propane, trust Volt Guard to protect your appliances from electrical voltage spikes Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts. Description The Champion Power Equipment 201504 3650-Watt Dual Fuel Portable Generator with CO Shield® is the perfect combination of versatility and convenience. Whether you need power for your home or next project, Champion Power Equipment makes powering your life more convenient than ever. The convenient electric start includes a battery, plus Cold Start Technology ensures a quick start in cold weather. Easily moni
Specifications
- Portable Generator Technology
- Dual Fuel, CO Shield®
- Gasoline Starting Watts
- 4550W
- Gasoline Running Watts
- 3650W
- Propane Starting Watts
- 4100W
- Propane Running Watts
- 3825W
- Gasoline Starting Amps at 120V
- 37.9A
- Gasoline Running Amps at 120V
- 30.4A
- Propane Starting Amps at 120V
- 34.2A
- Propane Running Amps at 120V
- 27.4A
- Volts
- 120
- Frequency
- 60Hz
- AC Receptacles
- (1) 120V 30A Locking (L5-30R), (1) 120V 30A (TT-30R), (1) 120V 20A Duplex (5-20R)
- DC Operation
- No
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 10.5 h.
- Noise Level
- 68 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- Yes
- Start Type
- Recoil, Electric
- Engine Brand
- Champion
- Engine Size
- 224cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline, Propane (LPG)
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 4.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.6 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 8 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 24.7 in.
- Width
- 25 in.
- Height
- 22.2 in.
- Weight
- 127 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Dual-fuel flexibility
- Dual Fuel, CO Shield®
- Recoil, Electric start
- 3 Year Warranty
