Champion · Inverter generator
201520
10,000 starting watts and 7,750 running watts with gasoline, propane, natural gas operation · 15 h. · 72 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 10,000 starting watts
10,000W starting
10,000W starting
10,000W starting
Manufacturer runtime
15 h.
Operating volume
72 dB(A)
Energy source
Gasoline, Propane (LPG), Natural Gas (NG)
7.45 gal. fuel capacity
180.8 lb.
Unit weight
27.1 in. × 28 in. × 26.2 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric
Power system
Inverter output
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Tri Fuel Operates on natural gas, propane, or gasoline, with hoses included for natural gas (25 ft.) and propane (6.6 ft.) so it’s ready to run on any fuel right out of the box. Electric Start The Fuel Select Dial, push-button Electric Start (battery included) and Cold Start technology enable easy startup, even in chilly conditions, for any user. Clean Power Stable, low harmonic distortion (less than 3%) power technology protects devices like electronics or EV chargers for reliable use at events or home. Power Monitoring 5-mode Intelligauge display with power meter keeps track of voltage and run time, and covered outlets help and protect connected gear while keeping cords organized and secure. Champion Support Backed by a 3 yr. limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country. Description The Champion 10,000-Watt Electric Start Tri Fuel Portable Open Frame Inverter Generator with Quiet Technology and CO Shield® is your dependable power source for home backup, camping, and events. The 459cc OHV engine delivers 10,000 starting watts for all fuel types. When using gasoline, it delivers 7750
Specifications
- Portable Generator Technology
- Tri Fuel, CO Shield®
- Gasoline Starting Watts
- 10000W
- Gasoline Running Watts
- 7750W
- Propane Starting Watts
- 10000W
- Propane Running Watts
- 6975W
- Natural Gas Starting Watts
- 10000W
- Natural Gas Running Watts
- 6278W
- Gasoline Starting Amps at 120V
- 83.3A
- Gasoline Starting Amps at 240V
- 41.7A
- Gasoline Running Amps at 120V
- 64.6A
- Gasoline Running Amps at 240V
- 32.3A
- Propane Starting Amps at 120V
- 83.3A
- Propane Starting Amps at 240V
- 41.7A
- Propane Running Amps at 120V
- 58.1A
- Propane Running Amps at 240V
- 29.1A
- Natural Gas Starting Amps at 120V
- 83.3A
- Natural Gas Starting Amps at 240V
- 41.7A
- Natural Gas Running Amps at 120V
- 52.3A
- Natural Gas Running Amps at 240V
- 26.2A
- Volts
- 120/240
- Frequency
- 60Hz
- AC Receptacles
- (2) 120V 20A GFCI duplex (5-20R), (1) 120/240V 30A Twistlock (L14-30R), (1) 120/240V 32.3A (14-50R)
- DC Operation
- Yes
- DC Receptacles
- (1) 12V 8A Automotive
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 15 h.
- Propane Run Time at 1/4 Load
- 8 h.
- Noise Level
- 72 dB(A)
- Inverter
- Open Frame
- Parallel Capability
- No
- Voltmeter
- Intelligauge with Power Meter
- Battery
- Yes
- Start Type
- Recoil, Electric
- Engine Brand
- Champion
- Engine Size
- 459cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline, Propane (LPG), Natural Gas (NG)
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 7.45 gal.
- Gasoline Tank Material
- Metal
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 1.2 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 9.5 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 27.1 in.
- Width
- 28 in.
- Height
- 26.2 in.
- Weight
- 180.8 lb.
Best-fit uses
- Home essentials
- RV power

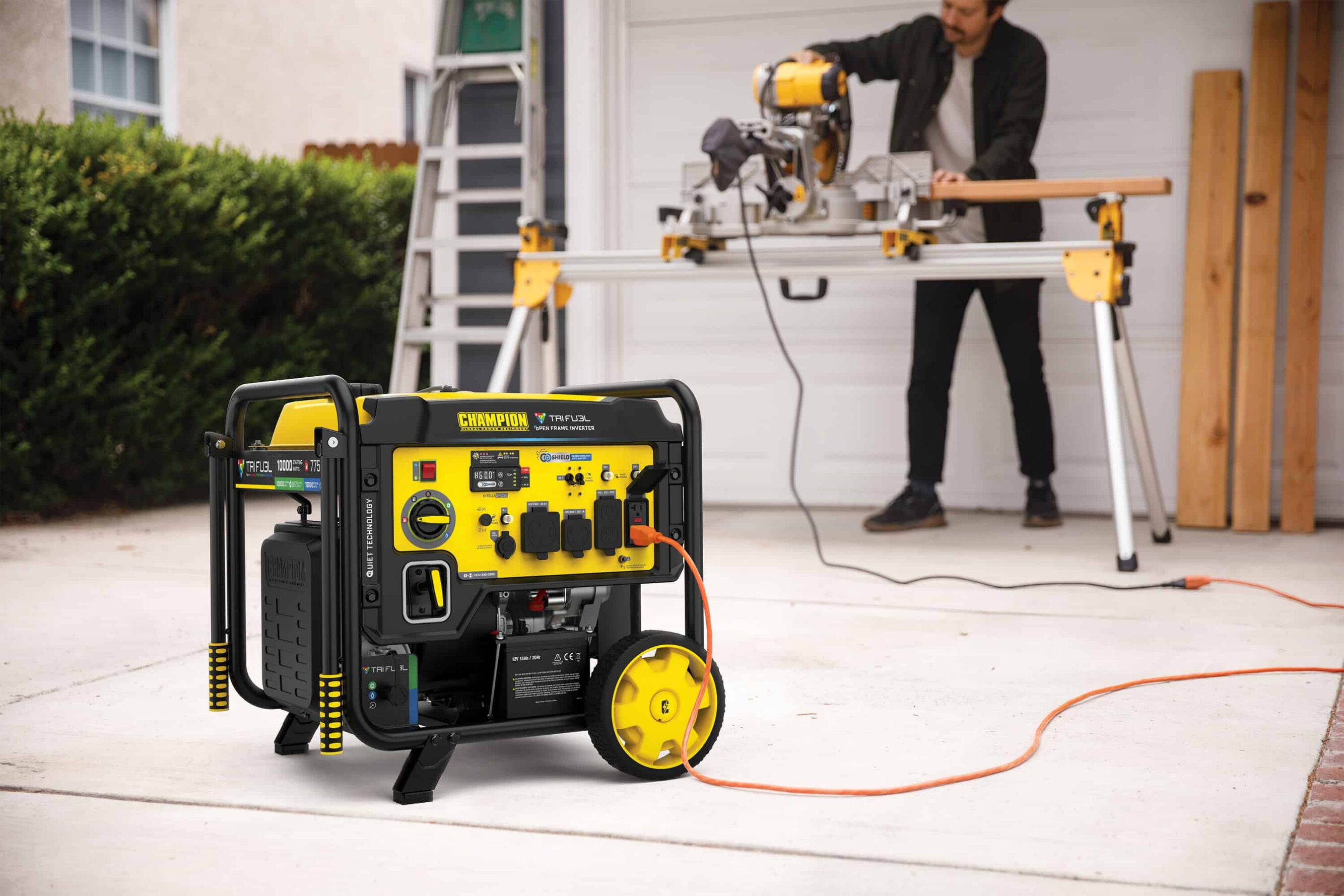

- Tools and outdoor projects
Standout features
- Tri-fuel flexibility
- Clean inverter power
- Tri Fuel, CO Shield®
- Recoil, Electric start
- 3 Year Warranty
