Champion · Portable generator
201543
14,000 starting watts and 11,000 running watts with gasoline operation · 8.5 h. · 76 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 14,000 starting watts
14,000W starting
Manufacturer runtime
8.5 h.
Operating volume
76 dB(A)
Energy source
Gasoline
8.5 gal. fuel capacity
238 lb.
Unit weight
29.2 in. × 28.6 in. × 26.5 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric, Wireless Remote, StartLINK
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric, Wireless Remote, StartLINK
Power system
Conventional alternator
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.

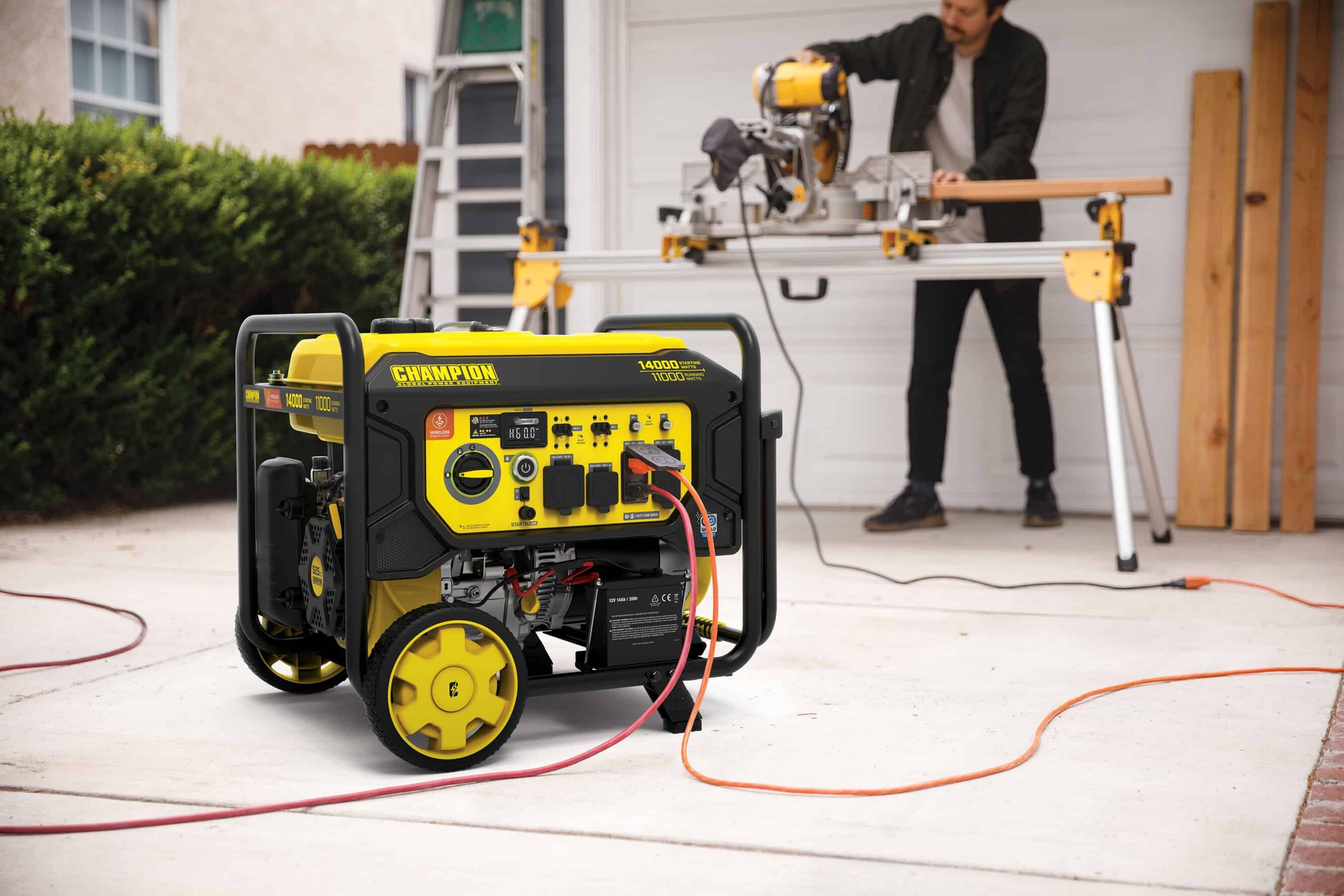

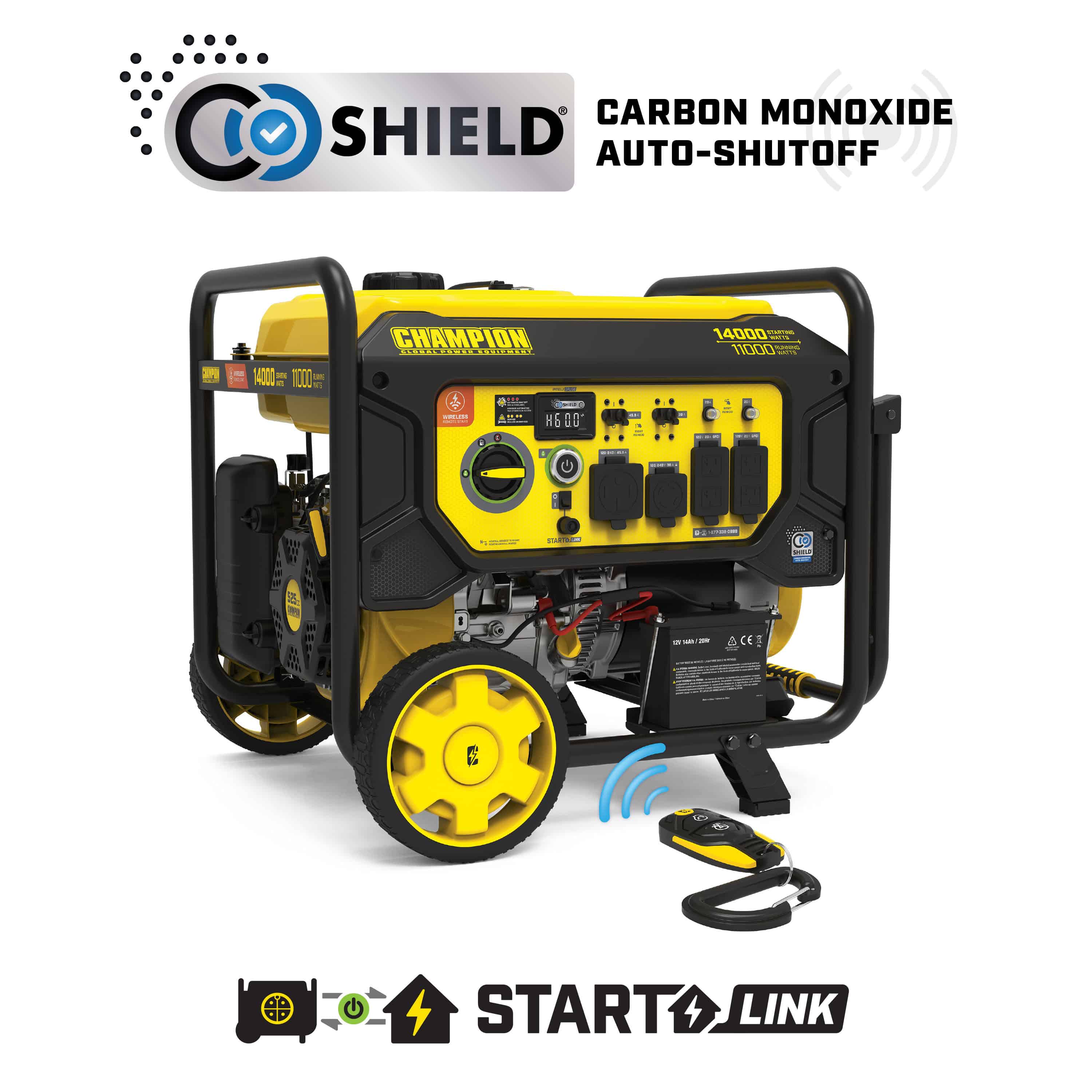

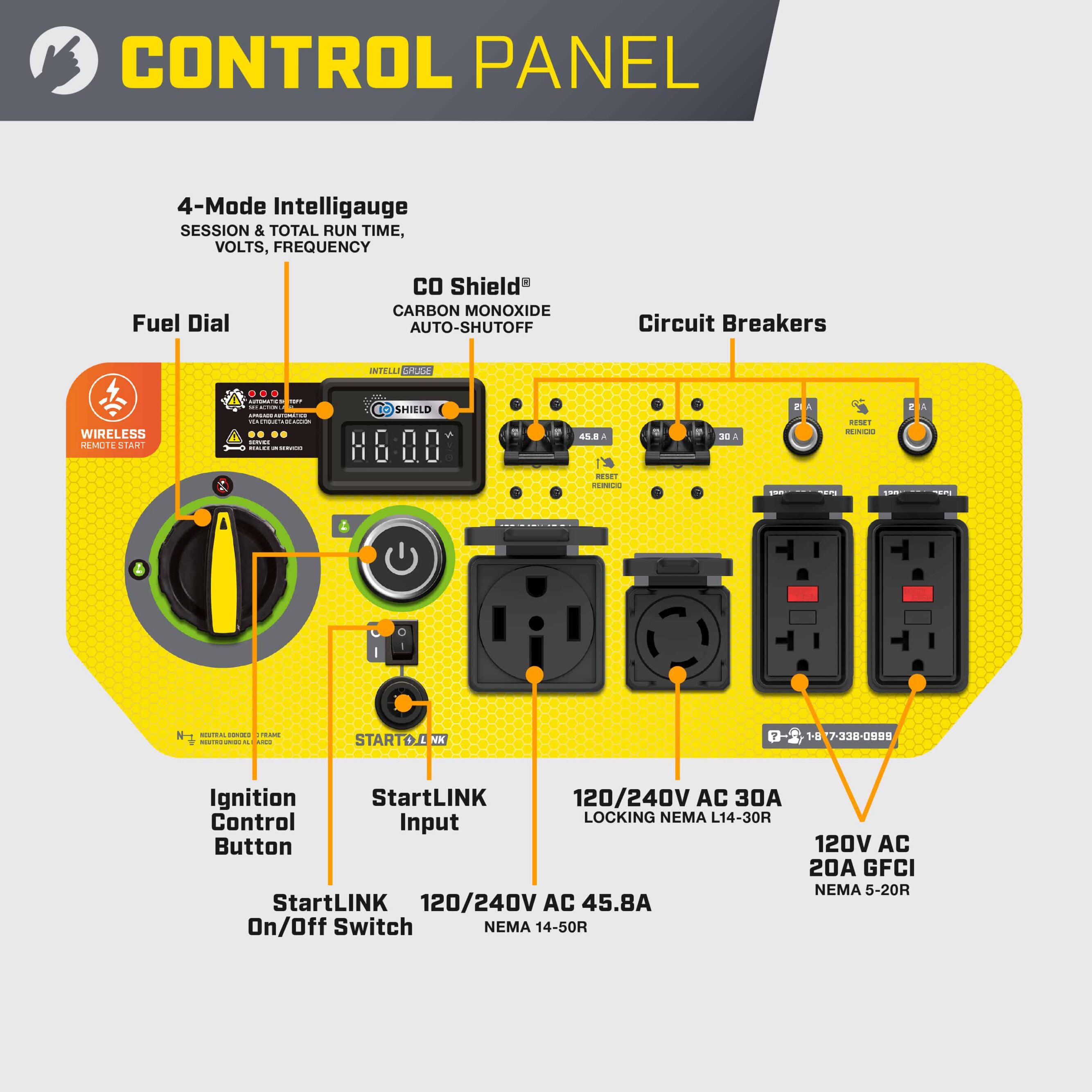

Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

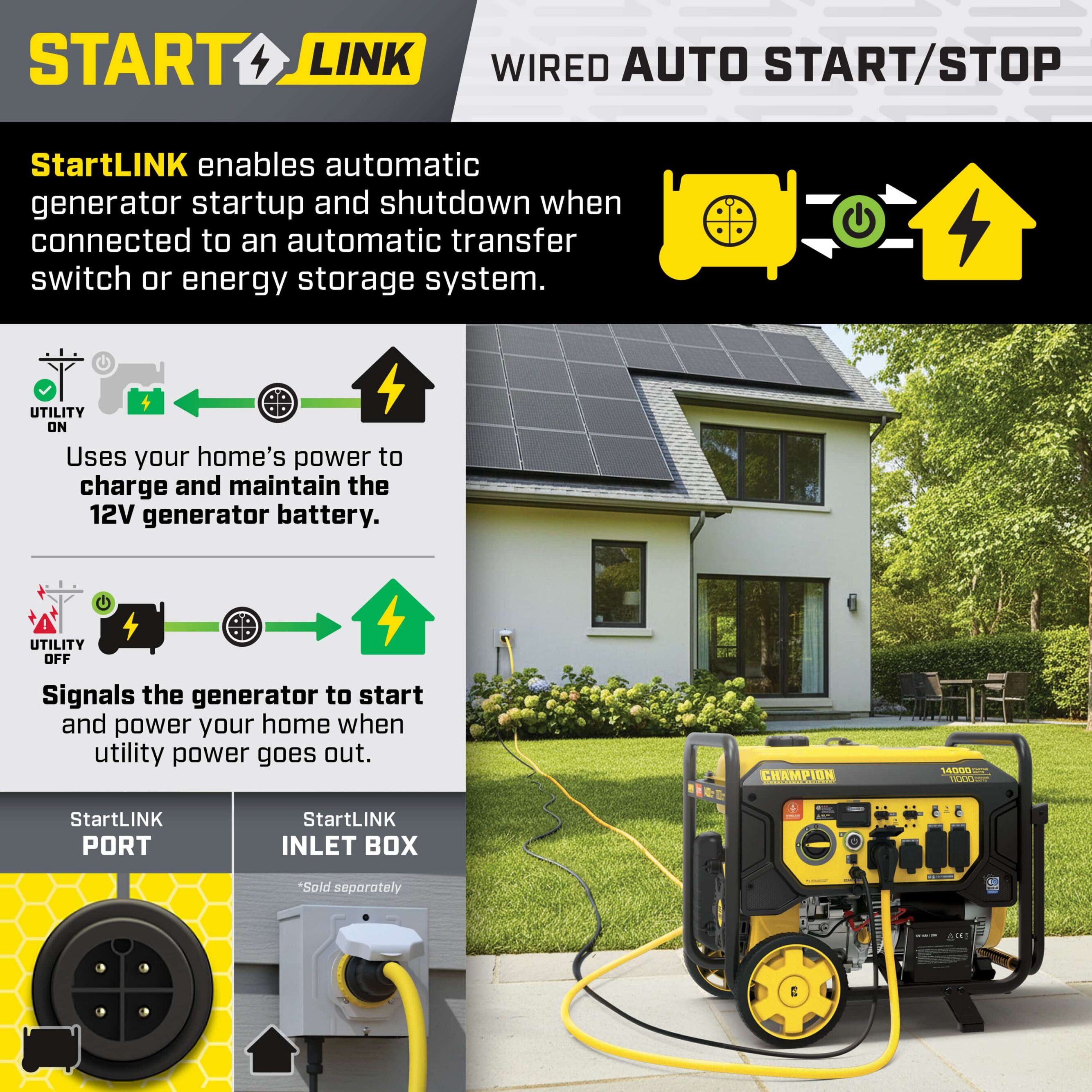

Features High Starting Power 14,000 starting watts handle heavy motor starts so refrigerators, sump pumps, and large tools come online smoothly without tripping breakers or stalling under load. Wireless Remote Start Enjoy the simplicity and convenience of starting your generator from up to 80 ft. away using the wireless remote key fob, or the push-button electric start when near the unit. StartLINK Auto start/stop via wired connection from your generator to an Energy Storage System or Automatic Transfer Switch, automating operation and keeping your battery charged with 120V AC. Power Monitoring Intelligauge display, volt guard surge protection, and covered outlets help you monitor voltage and protect connected gear while keeping cords organized and secure. Champion Support Backed by a 3 yr. limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country. Description The Champion Power Equipment Champion 11,000-Watt Wireless Remote Start Home Backup Portable Generator with StartLINK and CO Shield® delivers 14,000 starting watts and 11,000 running watts. · The Champion 525cc OHV engine provides strong starting po
Specifications
- Portable Generator Technology
- CO Shield®, StartLINK
- Gasoline Starting Watts
- 14000W
- Gasoline Running Watts
- 11000W
- Gasoline Starting Amps at 120V
- 116.7A
- Gasoline Starting Amps at 240V
- 58.3A
- Gasoline Running Amps at 120V
- 91.7A
- Gasoline Running Amps at 240V
- 45.8A
- Volts
- 120/240
- Frequency
- 60Hz
- AC Receptacles
- (2) 120V 20A GFCI duplex (5-20R), (1) 120/240V 30A Locking (L14-30R), (1) 120/240V 45.8A (14-50R)
- DC Operation
- No
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 8.5 h.
- Noise Level
- 76 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- Yes
- Start Type
- Recoil, Electric, Wireless Remote, StartLINK
- Engine Brand
- Champion
- Engine Size
- 525cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 8.5 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 1.4 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 9.5 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 29.2 in.
- Width
- 28.6 in.
- Height
- 26.5 in.
- Weight
- 238 lb.
Best-fit uses
- Whole-home essentials
- Major appliances and pumps
- Emergency backup
Standout features
- CO Shield®, StartLINK
- Recoil, Electric, Wireless Remote, StartLINK start
- 3 Year Warranty
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
