Champion · Portable generator
201547
9,375 starting watts and 7,500 running watts with gasoline operation · 10 h. · 74 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 9,375 starting watts
9,375W starting
Manufacturer runtime
10 h.
Operating volume
74 dB(A)
Energy source
Gasoline
7.7 gal. fuel capacity
204 lb.
Unit weight
29.3 in. × 27.7 in. × 25.9 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric
Power system
Conventional alternator
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

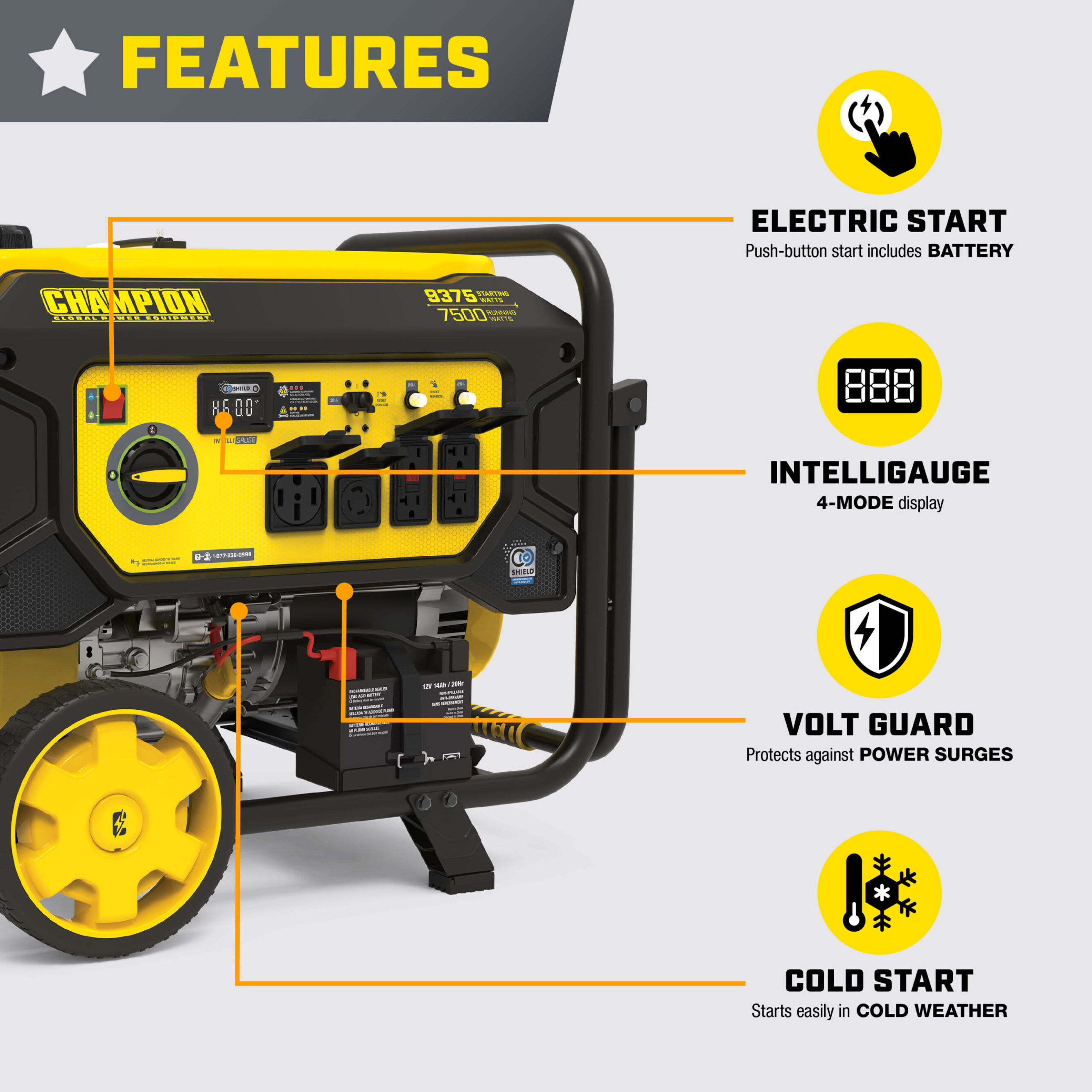

Features Ultra-Powerful At 9375 starting watts and 7500 running watts, enjoy up to 10 hours of run time on a full tank of gasoline with a noise level of 74 dBA from 23 feet Electric Start Trust the reliable 420cc Champion engine with its battery-included electric start featuring a reliable toggle switch, plus built-in Cold Start Technology for easy starts in cold weather Covered Outlets Two 120V 20A GFCI household duplex outlets, a120/240V 30A locking outlet and a 120/240V 31A outlet (14-50R) Intelligauge Keep track of voltage, hertz and run-time hours to easily monitor power output and track maintenance intervals, plus features CO Shield® carbon monoxide auto shutoff system Champion Support Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts Description The Champion Power Equipment 201547 7500-Watt Portable Generator with CO Shield® is designed with your safety and convenience in mind. A cost-effective solution that delivers power and peace of mind, this generator will provide all the backup power you need for power outages and emergencies. For projects, the 420cc Champion single-cylinder OHV engine has what it takes to handle the multiple
Specifications
- Portable Generator Technology
- CO Shield®
- Gasoline Starting Watts
- 9375W
- Gasoline Running Watts
- 7500W
- Gasoline Starting Amps at 120V
- 78.1A
- Gasoline Starting Amps at 240V
- 39.1A
- Gasoline Running Amps at 120V
- 62.5A
- Gasoline Running Amps at 240V
- 31.3A
- Volts
- 120/240
- Frequency
- 60Hz

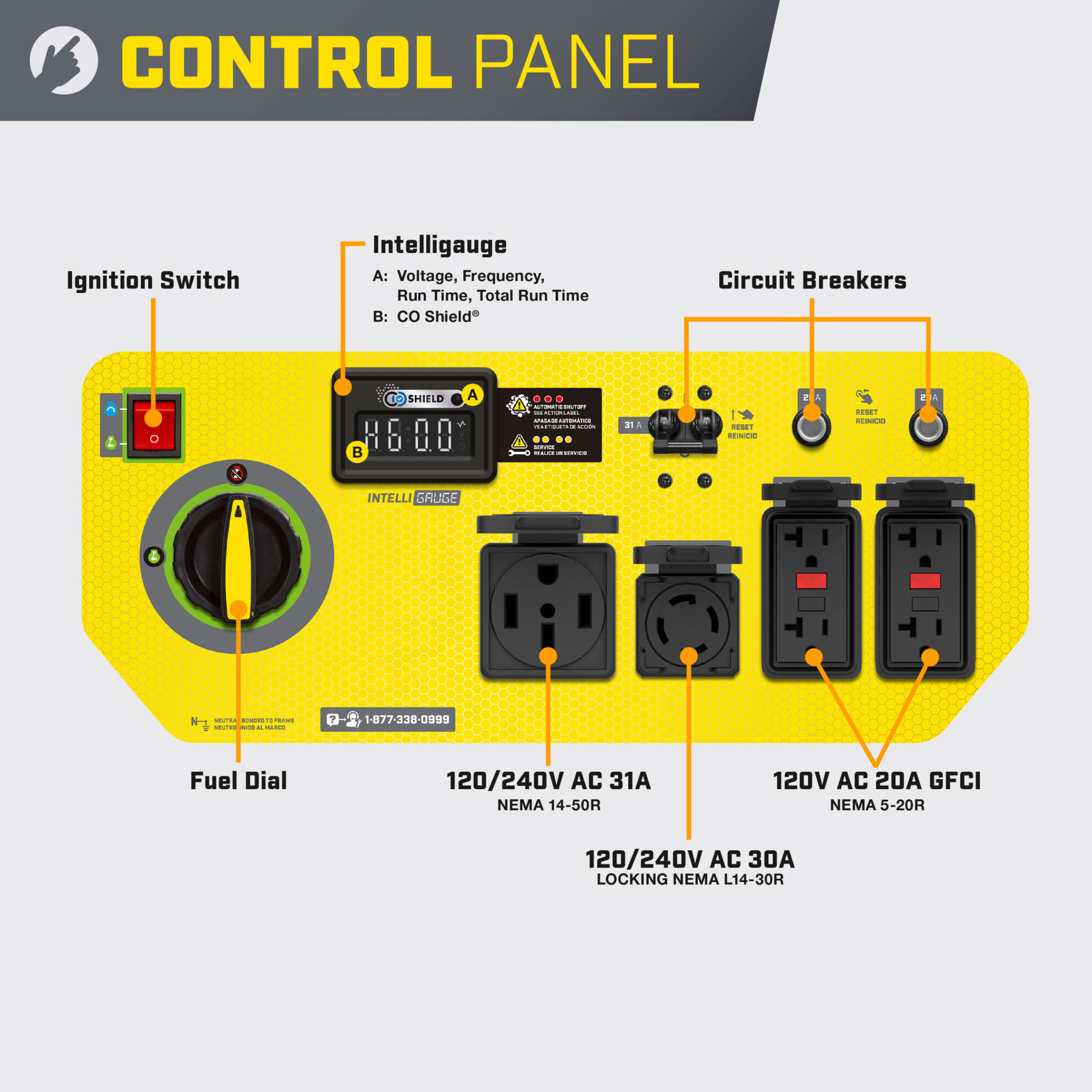

- AC Receptacles
- (1) 120/240V 31A (14-50R), (1) 120/240V 30A Locking (L14-30R), (2) 120V 20A Duplex GFCI (5-20R)
- DC Operation
- No
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 10 h.
- Noise Level
- 74 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- Yes
- Start Type
- Recoil, Electric
- Engine Brand
- Champion
- Engine Size
- 420cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 7.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 1.2 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 9.5 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 29.3 in.
- Width
- 27.7 in.
- Height
- 25.9 in.
- Weight
- 204 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- CO Shield®
- Recoil, Electric start
- 3 Year Warranty
