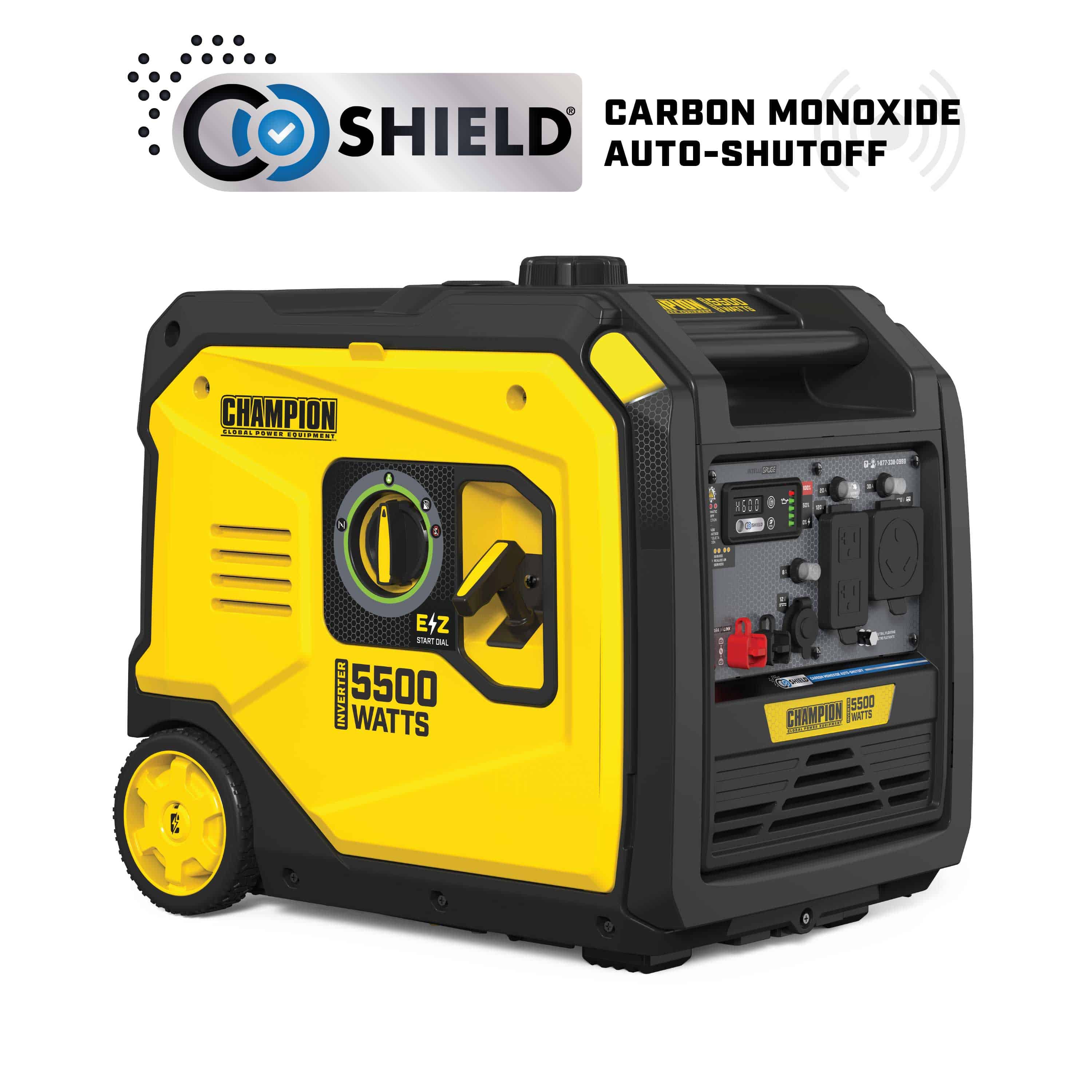

Champion · Inverter generator
201560
5,500 starting watts and 4,000 running watts with gasoline operation · 11 h. · 65 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 5,500 starting watts
5,500W starting
Manufacturer runtime
11 h.
Operating volume
65 dB(A)
Energy source
Gasoline
2.03 gal. fuel capacity
73.4 lb.
Unit weight
21.4 in. × 15.5 in. × 19.5 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil
Power system
Inverter output
Protection
CO Shield® · Low-oil shutdown
Electrical
120 · 60Hz
Connection details are included in the full specification table below.
Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview

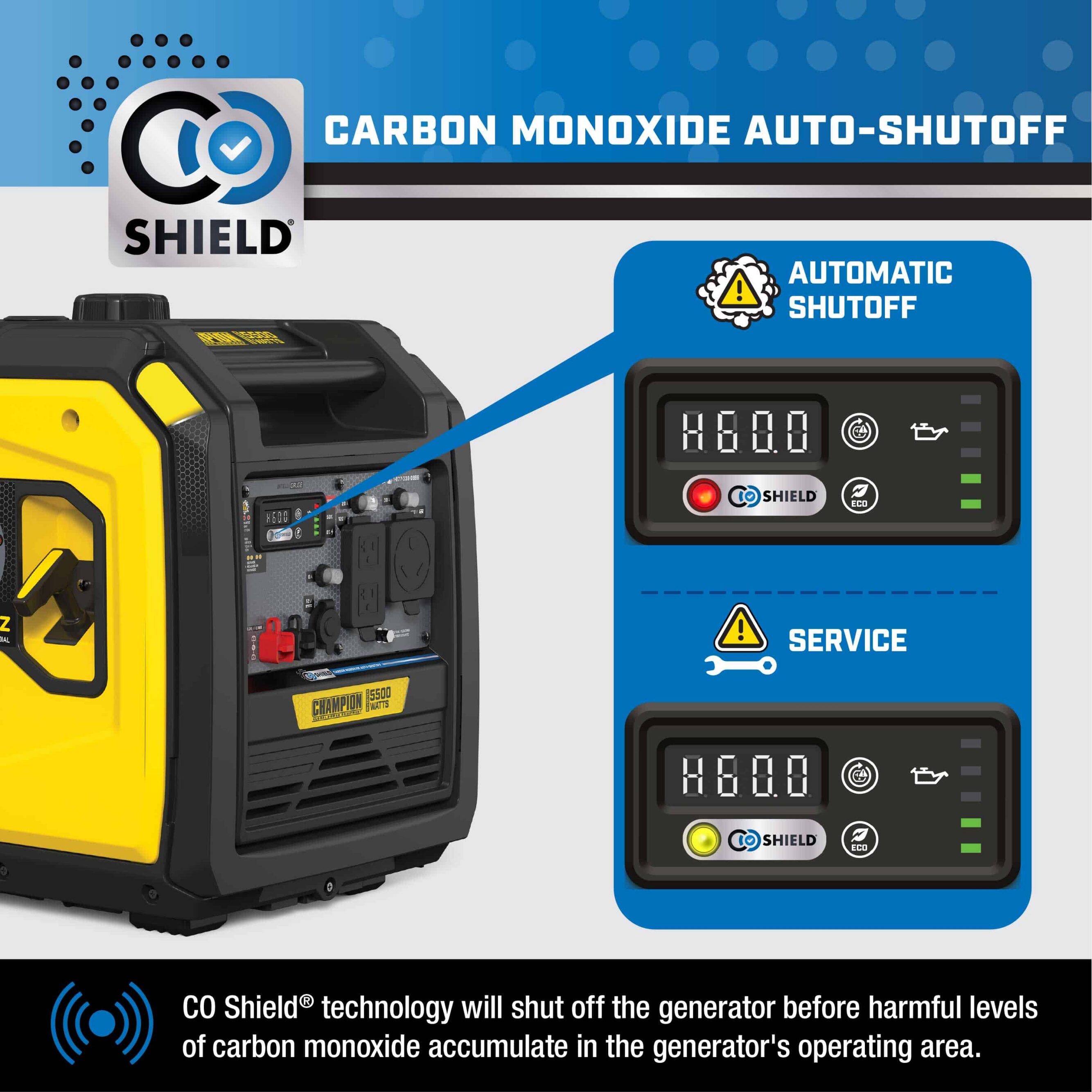

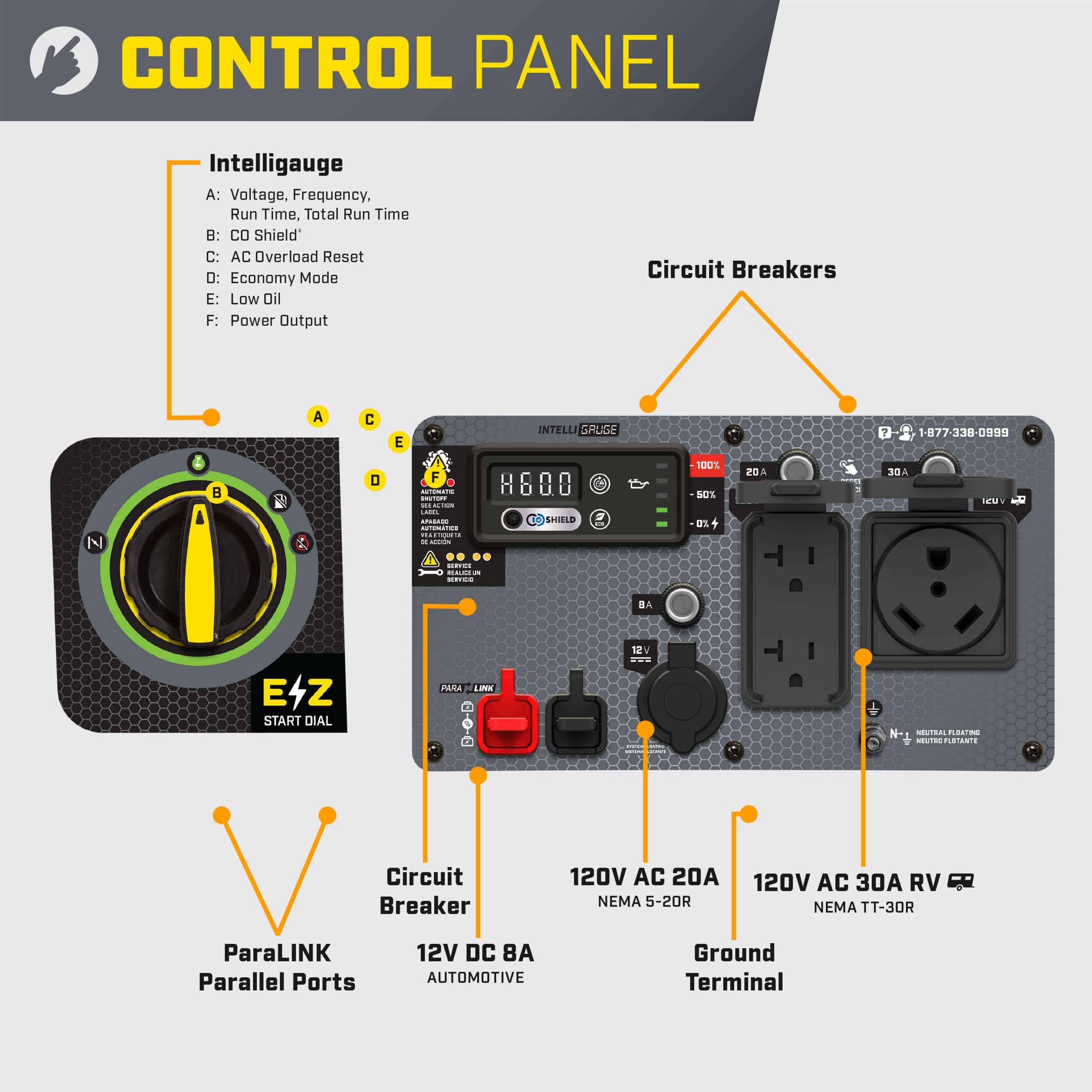

Features Powerful and Quiet 5500 starting watts, 4000 running watts, and ultra-quiet 65 dB(A) operation make it perfect for camping, RVs, or backup power, with up to 11 hours run time on a full tank Easy Monitoring and Operation Intelligauge 5-mode display tracks voltage, frequency, and hours. Includes an EZ Start Dial, Economy Mode, and CO Shield® Carbon Monoxide Auto-Shutoff for safety Clean Power for Sensitive Electronics The 181cc OHV engine delivers stable, clean power that protects sensitive electronics while running quietly enough for campsites, tailgates, and neighborhoods Portable Never-flat tires and a fold-away handlebar make makes transport easy between storage, RV sites, and jobsites while keeping setup simple Champion Support Backed by a 3 yr. limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country Description The Champion Power Equipment Ultra Quiet 5500-Watt Inverter Generator with CO Shield® delivers portable power for RVs, camping, and backup use around the home, providing clean power for sensitive electronics. With 5500 starting watts and 4000 running watts, this inverter generator de
Specifications
- Portable Generator Technology
- CO Shield®, ParaLINK®
- Gasoline Starting Watts
- 5500W
- Gasoline Running Watts
- 4000W
- Gasoline Starting Amps at 120V
- 45.8A
- Gasoline Running Amps at 120V
- 33.3A
- Volts
- 120
- Frequency
- 60Hz
- AC Receptacles
- (1) 5-20R 20A duplex (NEMA 5-20R), (1) TT-30R 30A (NEMA TT-30R), Parallel
- DC Operation
- Yes
- DC Receptacles
- (1) 12V 8A Automotive
- GFCI Receptacles
- No
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/4 Load
- 11 h.
- Noise Level
- 65 dB(A)
- Inverter
- Enclosed
- Parallel Capability
- Yes
- Voltmeter
- Intelligauge with Power Meter
- Battery
- No
- Start Type
- Recoil
- Engine Brand
- Champion
- Engine Size
- 181cc
- Engine Type
- 4-stroke
- Engine Speed
- Variable
- Fuel Type
- Gasoline
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 2.03 gal.
- Gasoline Tank Material
- Plastic
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.6 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 5.5 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 21.4 in.
- Width
- 15.5 in.
- Height
- 19.5 in.
- Weight
- 73.4 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Clean inverter power
- CO Shield®, ParaLINK®
- Recoil start
- Parallel capable
- 3 Year Warranty
