Champion · Portable generator
201602
6,250 starting watts and 5,000 running watts with gasoline, propane, natural gas operation · 12 h. · 74 dB(A).
Price varies by retailer
Affiliate-ready field · no official direct price published
Visual spec gallery
The important numbers, at a glance.
Up to 6,250 starting watts
6,250W starting
5,625W starting
5,075W starting
Manufacturer runtime
12 h.
Operating volume
74 dB(A)
Energy source
Gasoline, Propane (LPG), Natural Gas (NG)
7.7 gal. fuel capacity
152 lb.
Unit weight
28.1 in. × 27.1 in. × 25 in.
Length × width × height
- Warranty
- 3 Year Warranty
- Starting
- Recoil, Electric
- Status
- Listed in Champion U.S. catalog
Starting system
Recoil, Electric
Power system
Conventional alternator
Protection
CO Shield® · Low-oil shutdown
Electrical
120/240 · 60Hz
Connection details are included in the full specification table below.

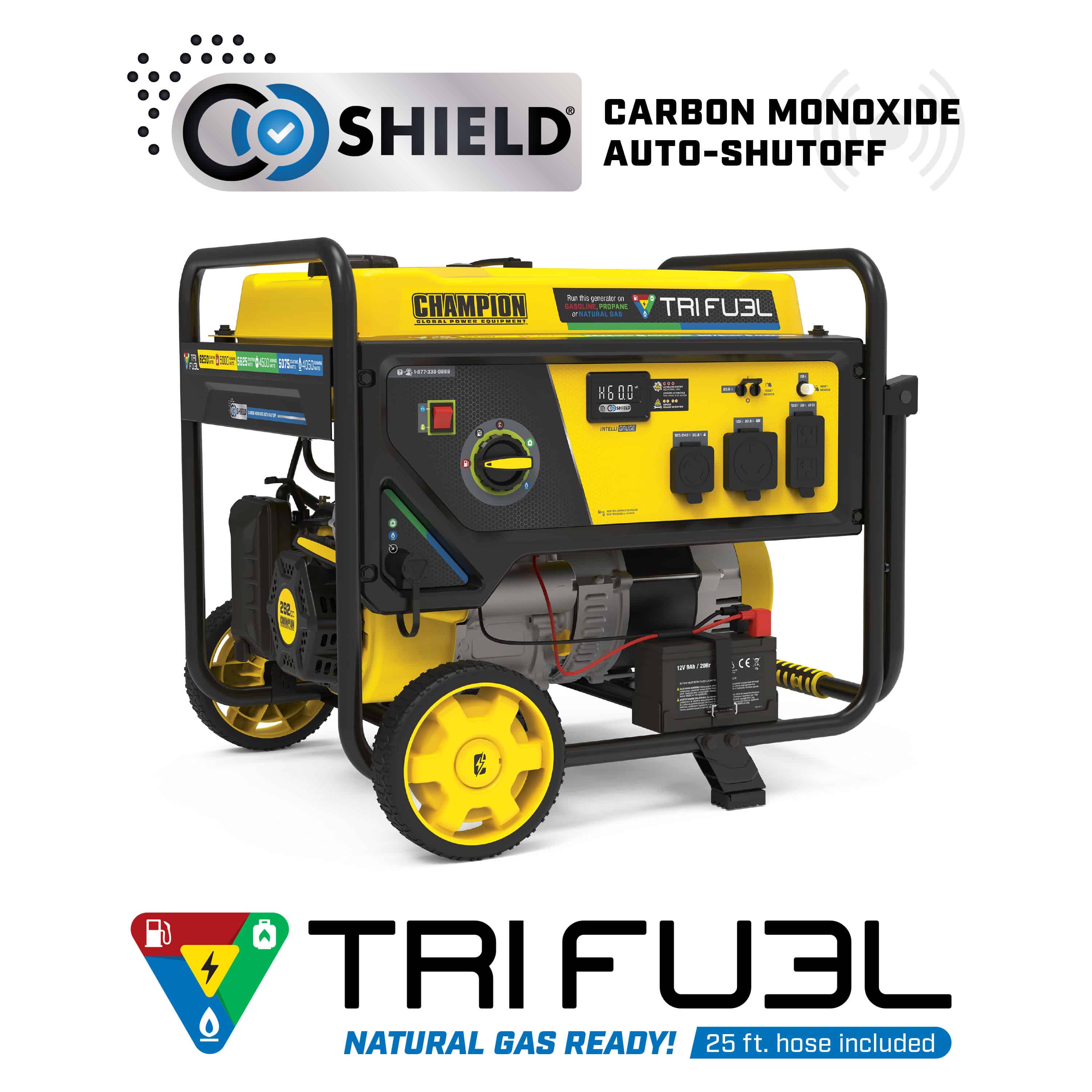

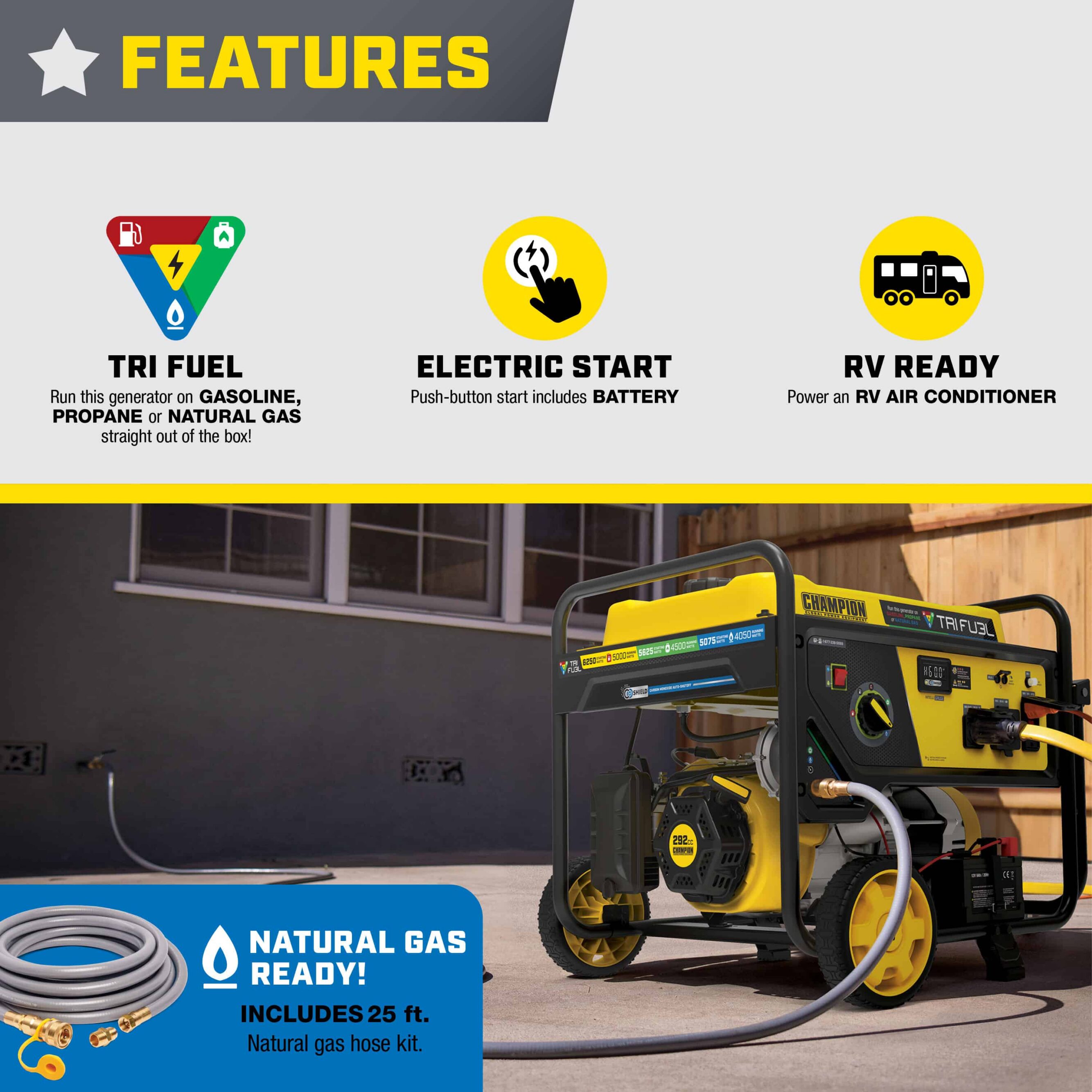

Official product gallery
Product views and Champion infographics.
These manufacturer images may include output comparisons, controls, dimensions, included equipment, and common use cases. Scroll sideways to view the complete official set available for this model.
Complete specifications
Every official field, organized.
The technical fields below come from Champion’s current U.S. model page. Product photos and infographics come from its official gallery. Confirm current documentation and retailer details before purchase.
Manufacturer overview
Features Tri Fuel Operates on natural gas, propane, or gasoline, with hoses included for natural gas (25 ft.) and propane (6.6 ft.) so it’s ready to run on any fuel right out of the box. Electric Start Power up the 292cc Champion engine with the handy push-button electric start (battery included). Powerful Gasoline: 6250 starting watts and 5000 running watts, propane: 5625 starting watts and 4500 running watts, natural gas: 5075 starting watts and 4050 running watts. RV Ready A dedicated TT-30R outlet delivers 20.8 amps, giving RV owners dependable power for cooling, charging, daily onboard demands, and everyday campsite loads. Champion Support Backed by a 3 yr. limited warranty, FREE lifetime technical support from dedicated experts, and access to a network of service centers across the country. Description Champions 5000-Watt Electric Start Tri Fuel RV Ready Portable Generator with CO Shield® is your dependable power source for home essentials backup, camping, and events. · The Champion 292cc OHV engine delivers 6250 starting watts and 5000 running watts for up to 12 hours at 50% load on gasoline. On propane, you’ll get 5625 starting watts and 4500 running watts with a 20 lb. tan
Specifications
- Portable Generator Technology
- Tri Fuel, CO Shield®
- Gasoline Starting Watts
- 6250W
- Gasoline Running Watts
- 5000W
- Propane Starting Watts
- 5625W
- Propane Running Watts
- 4500W
- Natural Gas Starting Watts
- 5075W
- Natural Gas Running Watts
- 4050W
- Gasoline Starting Amps at 120V
- 52.1A
- Gasoline Starting Amps at 240V
- 26A
- Gasoline Running Amps at 120V
- 41.7A
- Gasoline Running Amps at 240V
- 20.8A
- Propane Starting Amps at 120V
- 46.9A
- Propane Starting Amps at 240V
- 23.4A
- Propane Running Amps at 120V
- 37.5A
- Propane Running Amps at 240V
- 18.8A
- Natural Gas Starting Amps at 120V
- 42.3A
- Natural Gas Starting Amps at 240V
- 21.1A
- Natural Gas Running Amps at 120V
- 33.8A
- Natural Gas Running Amps at 240V
- 16.9A
- Volts
- 120/240
- Frequency
- 60Hz
- AC Receptacles
- (1) 120V 20A GFCI duplex (5-20R) , (1) 120V 20.8A RV (TT-30R), (1) 120/240V 20.8 (14-30R)
- DC Operation
- No
- GFCI Receptacles
- Yes
- Covered Receptacles
- Yes
- Gasoline Run Time at 1/2 Load
- 12 h.
- Propane Run Time at 1/2 Load
- 6.5 h.
- Noise Level
- 74 dB(A)
- Inverter
- No
- Voltmeter
- Intelligauge
- Automatic Voltage Regulation
- Yes
- Battery
- Yes
- Start Type
- Recoil, Electric
- Engine Brand
- Champion
- Engine Size
- 292cc
- Engine Type
- 4-stroke
- Engine Speed
- 3600
- Fuel Type
- Gasoline, Propane (LPG), Natural Gas (NG)
- Fuel Gauge
- Mechanical
- Gasoline Capacity
- 7.7 gal.
- Gasoline Tank Material
- Steel
- Engine Oil Type
- 10W-30
- Engine Oil Capacity
- 0.7 qt.
- Engine Oil Included
- Yes
- Low Oil Shut-Off
- Yes
- Wheels
- Yes
- Wheel Type
- Solid
- Wheel Diameter
- 8 in.
- PGMA Compliant
- G300-2023
- EPA Certified
- Yes
Measurements
- Length
- 28.1 in.
- Width
- 27.1 in.
- Height
- 25 in.
- Weight
- 152 lb.
Best-fit uses
- Home essentials
- RV power
- Tools and outdoor projects
Standout features
- Tri-fuel flexibility
- Tri Fuel, CO Shield®
- Recoil, Electric start
- 3 Year Warranty
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
