DEWALT · Inverter generator
DXGNI2200
Compact inverter power with CO-Protect and economy mode
Visual spec gallery
Core specifications, simplified.
2,200 starting watts
Plan around continuous load plus the largest motor-starting surge. The finder already applies sizing headroom.
Manufacturer runtime
Up to 11 hours at 25% load
Engine
DEWALT 80cc OHV, 4-stroke
Fuel tank
1.0 gal
49 lb
Unit weight
21.3 × 10.8 × 17.7 in
L × W × H
- Starting system
- Recoil
- Current price
- See dealer offers
Starting
Recoil
Power system
Inverter output
CO protection
CO-Protect automatic shutdown
Low-oil protection
Automatic shutdown
Parallel ports allow two compatible units to be connected with the proper kit.
Official product gallery
Three manufacturer views for every model.

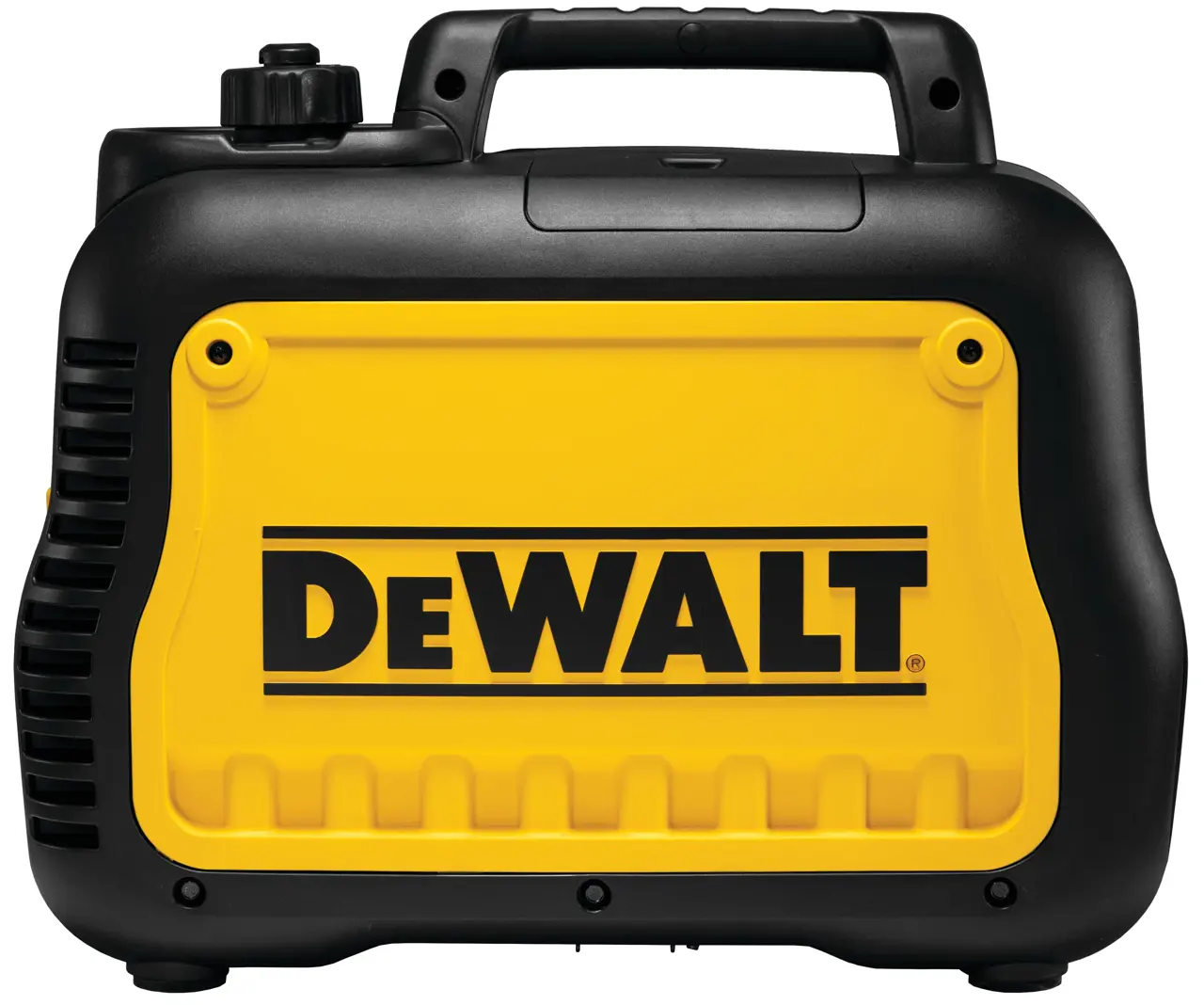

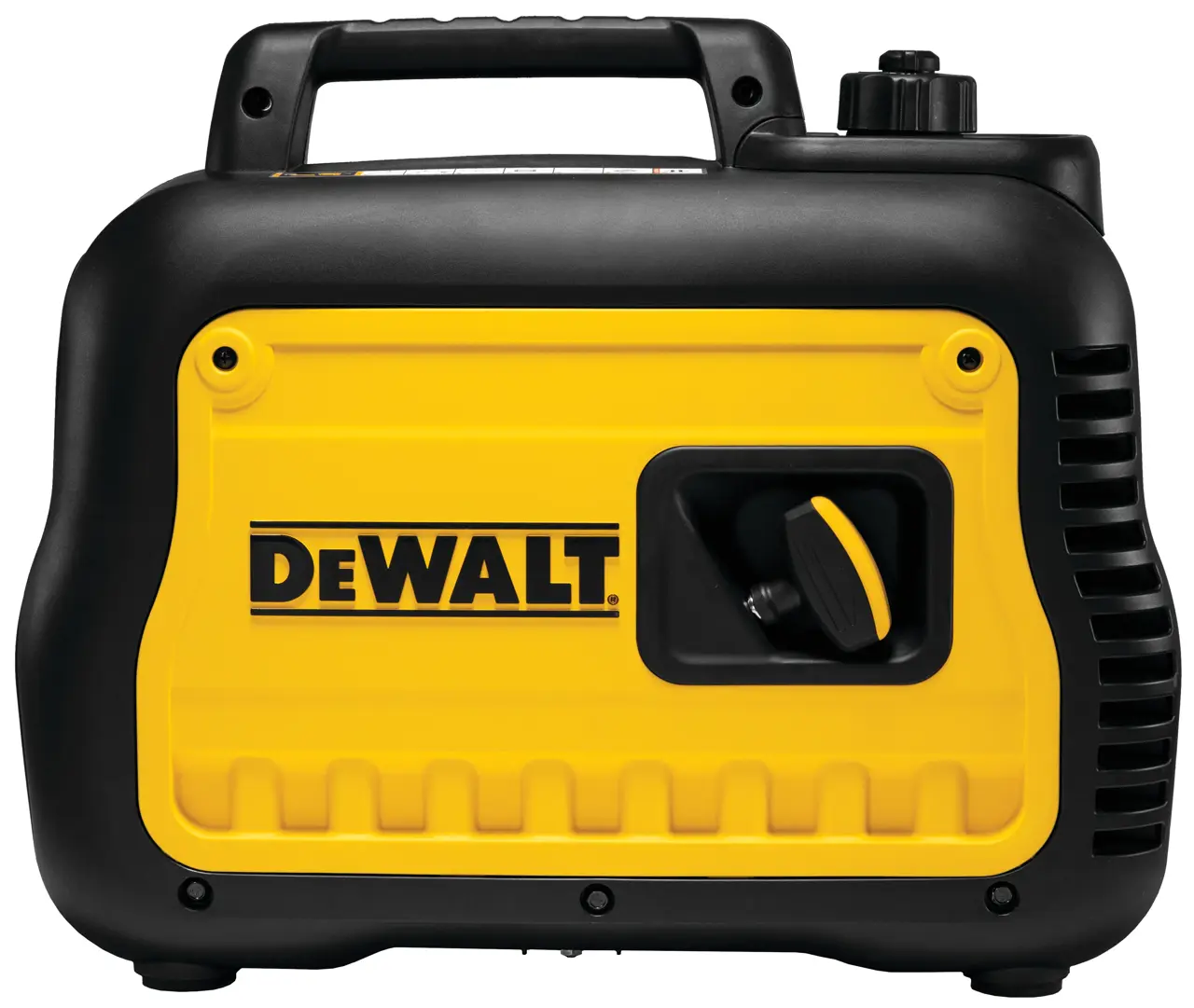

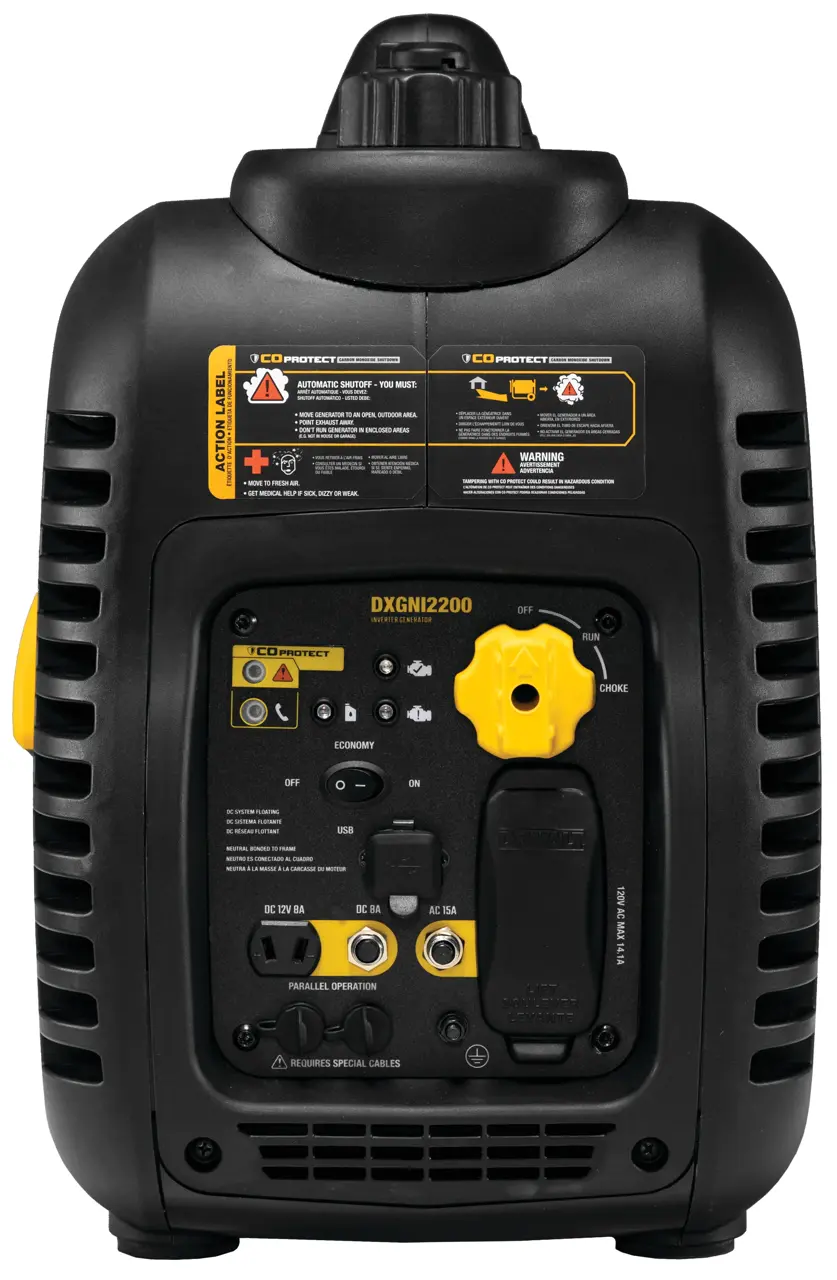

These DEWALT images show the generator, control panel, frame, wheels, handle, and connection layout from multiple angles.
Complete specifications
Product-page facts plus manual detail.
DEWALT’s current U.S. product page provides the overview, feature list, and gallery. Official manuals supply the detailed electrical, engine, runtime, and physical ratings where available.
Manufacturer overview
The 2200 watt portable generator is powered by an 80cc OHV engine with auto throttle and low-oil shutdown. CO-Protect automatically shuts down the generator if carbon monoxide levels become unsafe or rapidly increase. Its covered outlets, integrated handle, and compact design support portable use, while the 1-gallon tank provides up to 11 hours at 25% load.
Electrical output
- Running / starting power
- 1,700W / 2,200W
- AC output
- 120V, 60 Hz, single phase
- Running / peak current
- 14.2A / 18.3A at 120V
- Power system
- Inverter; parallel capable
Engine, fuel & runtime
- Engine
- 80cc OHV 4-stroke gasoline engine
- Starting system
- Recoil with integrated off/run/choke control
- Fuel tank
- 1.0 gallon
- Manufacturer runtime
- Up to 11 hours at 25% load
Size, outlets & protection
- Dimensions
- 21.3 × 10.8 × 17.7 in
- Weight
- 49 lb
- Outlets
- (1) 120V 20A GFCI duplex; (1) 12V DC 8A; (1) USB; parallel ports
- Protection
- CO-Protect, low-oil shutdown, overload indication, covered outlets
Official feature details
CO-Protect technology
Stops the engine when carbon-monoxide levels become unsafe or rise rapidly.
Economy mode
Automatically adjusts engine speed to save fuel and reduce sound emissions.
Simplified startup
An integrated off/run/choke knob consolidates the startup procedure.
Jobsite-ready outlets
Covered outlets add protection from the environment.
Best-fit uses
- Camping & recreation
- Tailgating
- Sensitive electronics
- Light emergency backup
Standout features
- Inverter output
- CO-Protect shutdown
- Economy mode
- Parallel capable
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
