DEWALT · Portable generator
DXGNR4000
Compact open-frame jobsite power with CO-Protect
Visual spec gallery
Core specifications, simplified.
5,000 starting watts
Plan around continuous load plus the largest motor-starting surge. The finder already applies sizing headroom.
Manufacturer runtime
Up to 10 hours at 50% load
Engine
DEWALT 223cc OHV
Fuel tank
3.4 gal
120 lb
Unit weight
27.7 × 23.0 × 21.4 in
L × W × H
- Starting system
- Recoil
- Current price
- See dealer offers
Starting
Recoil
Power system
120V AC
CO protection
CO-Protect automatic shutdown
Low-oil protection
Automatic shutdown
2 manufacturer-listed connection groups are summarized below.

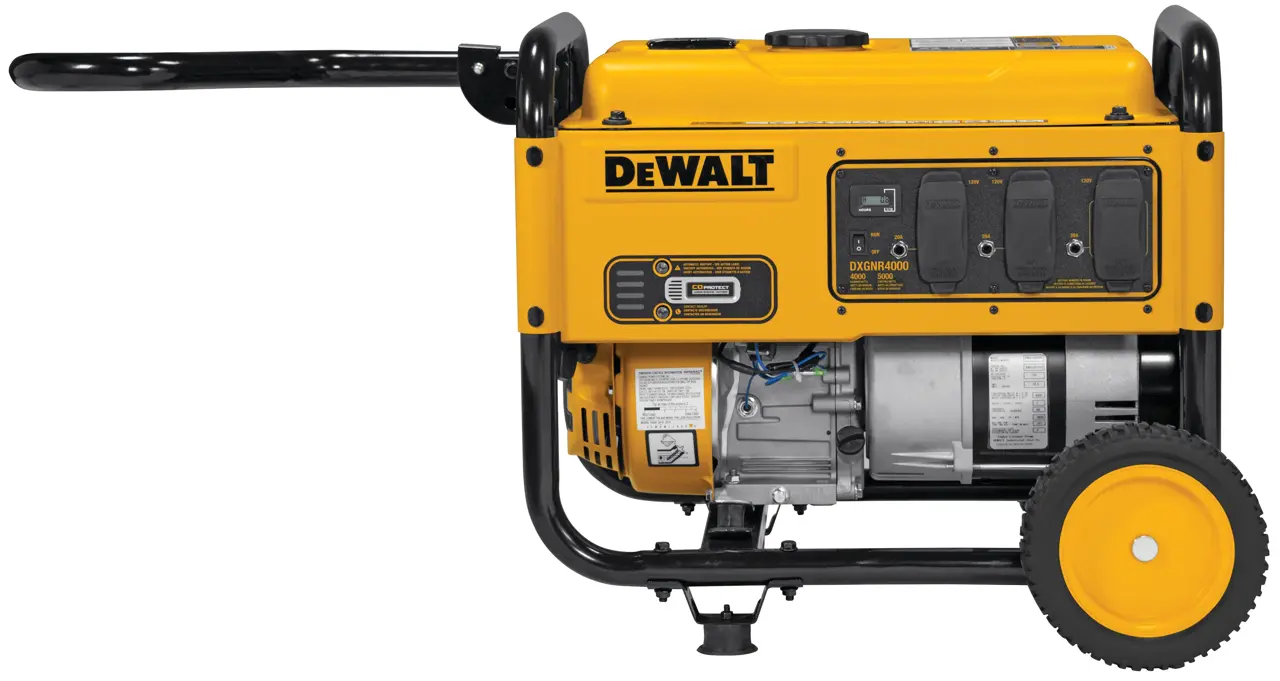

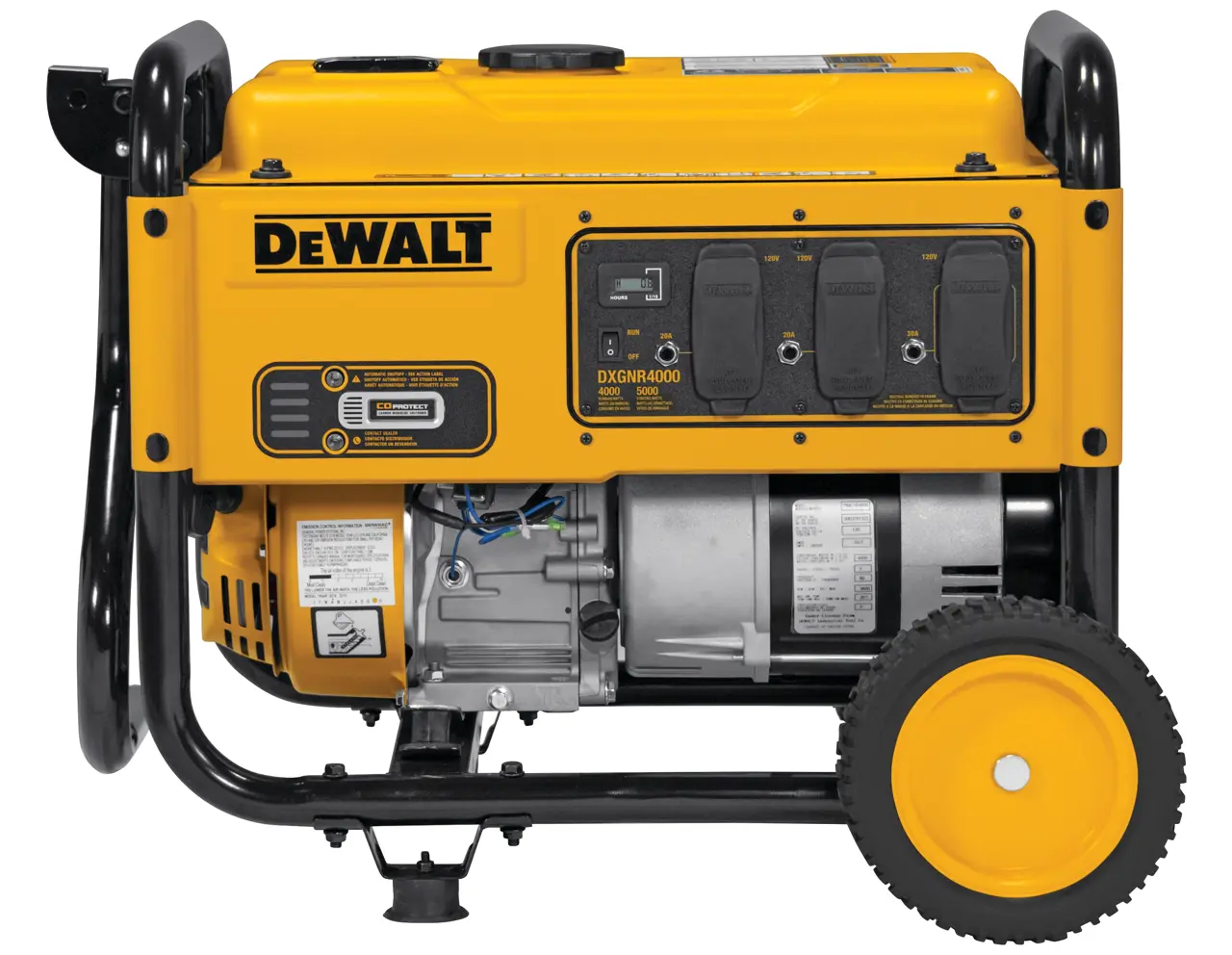

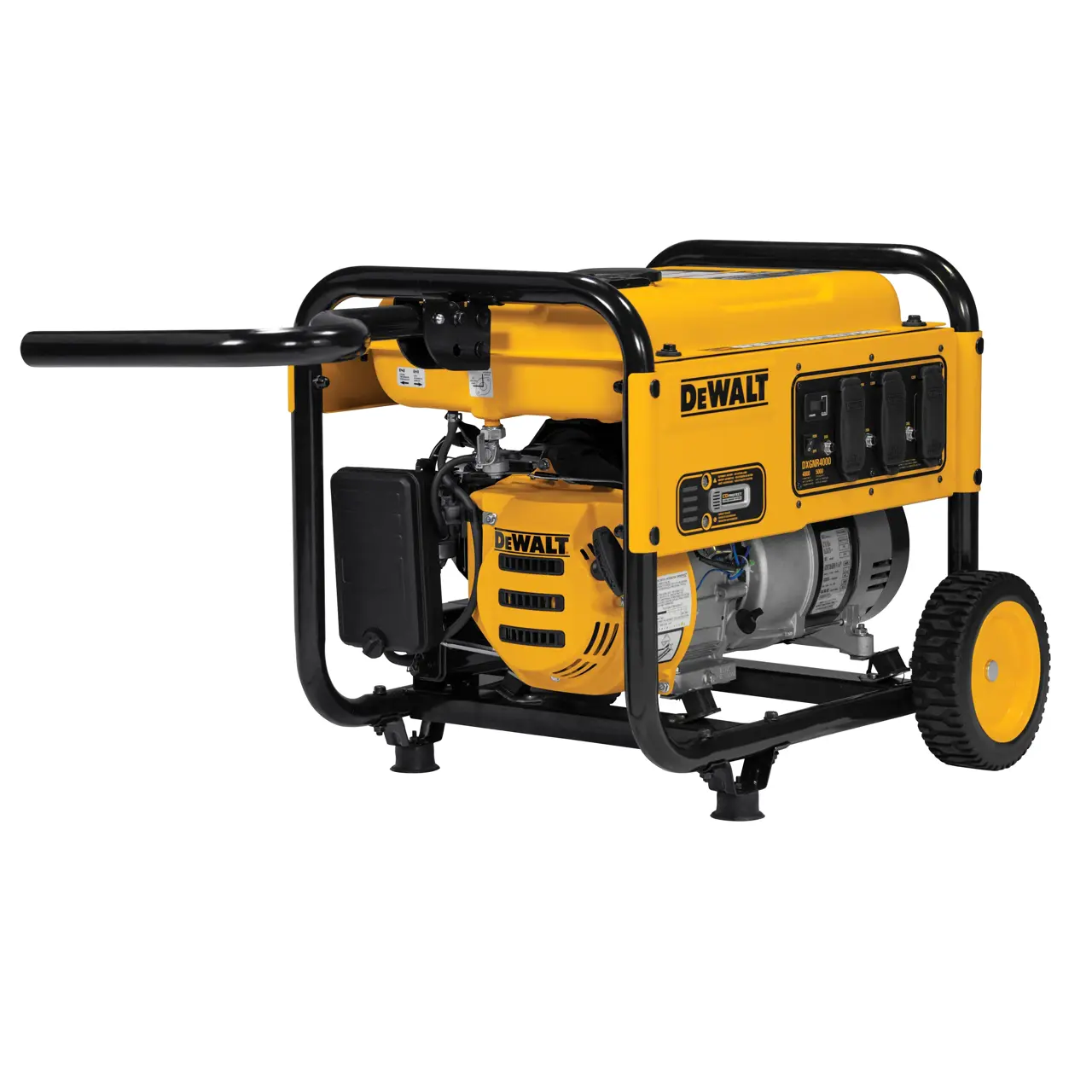

Official product gallery
Three manufacturer views for every model.
These DEWALT images show the generator, control panel, frame, wheels, handle, and connection layout from multiple angles.
Complete specifications
Product-page facts plus manual detail.
DEWALT’s current U.S. product page provides the overview, feature list, and gallery. Official manuals supply the detailed electrical, engine, runtime, and physical ratings where available.
Manufacturer overview
The 4000 watt portable gas generator is powered by a 223cc engine with low-oil shutdown. CO-Protect automatically shuts down the generator if carbon monoxide levels become unsafe or rapidly increase. Covered outlets, heavy-duty wheels, a fold-down handle, and a 1 1/4-inch steel tube frame prepare it for demanding transport and storage.
Electrical output
- Rated / surge power
- 4.0 kW / 5.0 kVA
- Voltage / frequency
- 120V AC / 60 Hz at 3,600 RPM
- Rated current
- 33.3A at 120V
- Phase
- Single phase
Engine, fuel & runtime
- Engine displacement
- 223cc
- Fuel / oil capacity
- 3.4 gal gasoline / 0.54 qt oil
- Runtime
- 10 hours at 50% load
- Spark plug
- F6TC; 0.020–0.028 in gap
Physical & connection details
- Dimensions
- 27.7 × 23.0 × 21.4 in
- Unit weight
- 120 lb
- Starting system
- Recoil
- Outlets
- 120V 20A GFCI duplex (5-20R); 120V 30A locking (L5-30R)
- Protection
- CO-Protect, low-oil shutdown, circuit breakers, covered outlets
Official feature details
CO-Protect technology
Automatically shuts down the generator when carbon-monoxide readings become unsafe.
Durable mobility
Heavy-duty wheels and a fold-down locking handle simplify transport and compact storage.
Protected control panel
Covered outlets help shield connections from rugged jobsite conditions.
Steel tube cradle
The 1 1/4-inch frame helps protect the generator in demanding environments.
Best-fit uses
- Jobsites
- Home essentials
- Tools & equipment
- Event power
Standout features
- CO-Protect shutdown
- Covered outlets
- Hour meter
- Heavy-duty wheels
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
