DEWALT · Portable generator
DXGNR5700
Commercial jobsite power with idle control and electric start
Visual spec gallery
Core specifications, simplified.
7,125 starting watts
Plan around continuous load plus the largest motor-starting surge. The finder already applies sizing headroom.
Manufacturer runtime
Up to 10.5 hours at 50% load
Engine
Premium DEWALT 389cc OHV
Fuel tank
6.7 gal
163 lb
Unit weight
27.25 × 27.4 × 28.5 in
L × W × H
- Starting system
- Electric / Recoil backup
- Current price
- See dealer offers
Starting
Electric / Recoil backup
Power system
120/240V AC
CO protection
Not listed by manufacturer
Low-oil protection
Automatic shutdown
2 manufacturer-listed connection groups are summarized below.

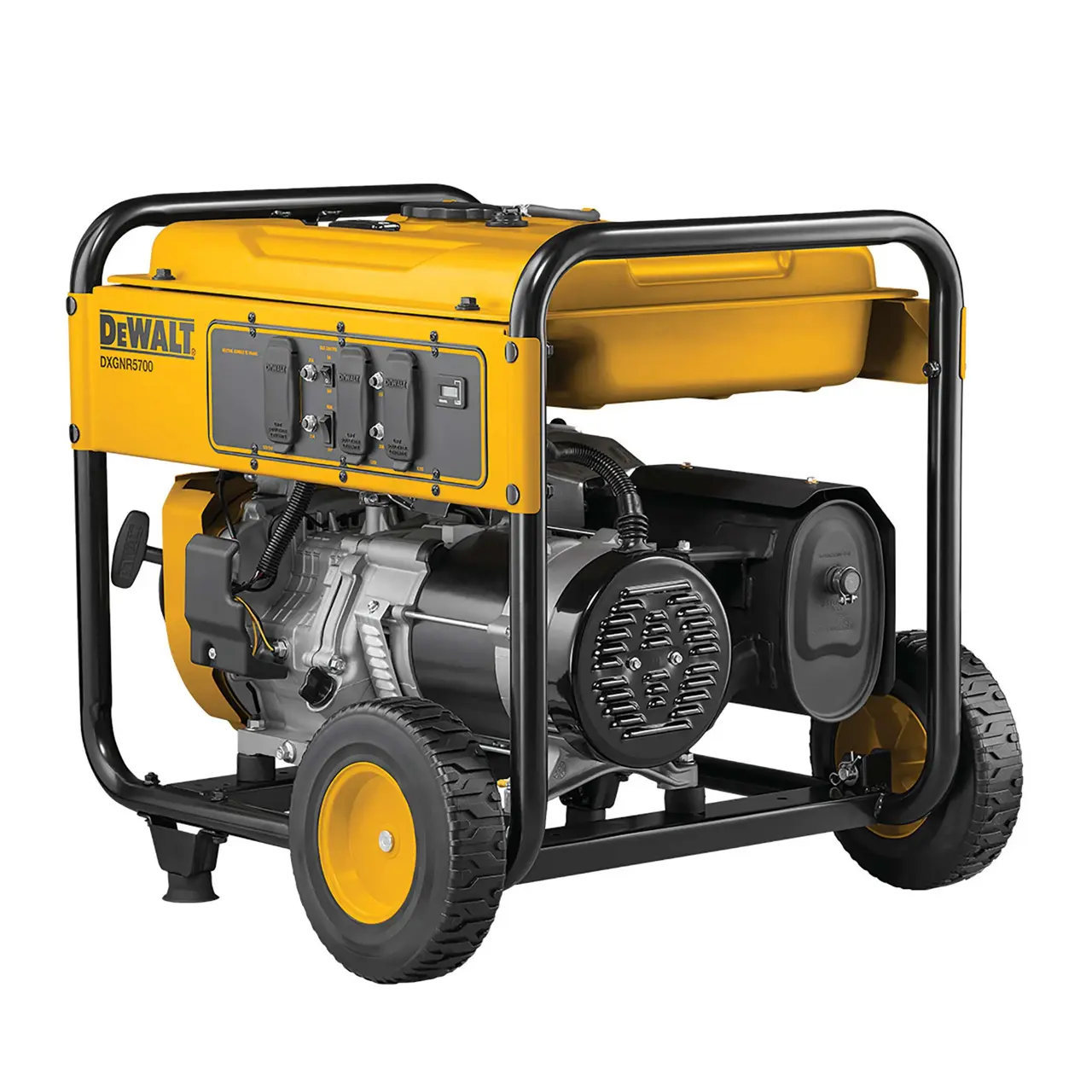

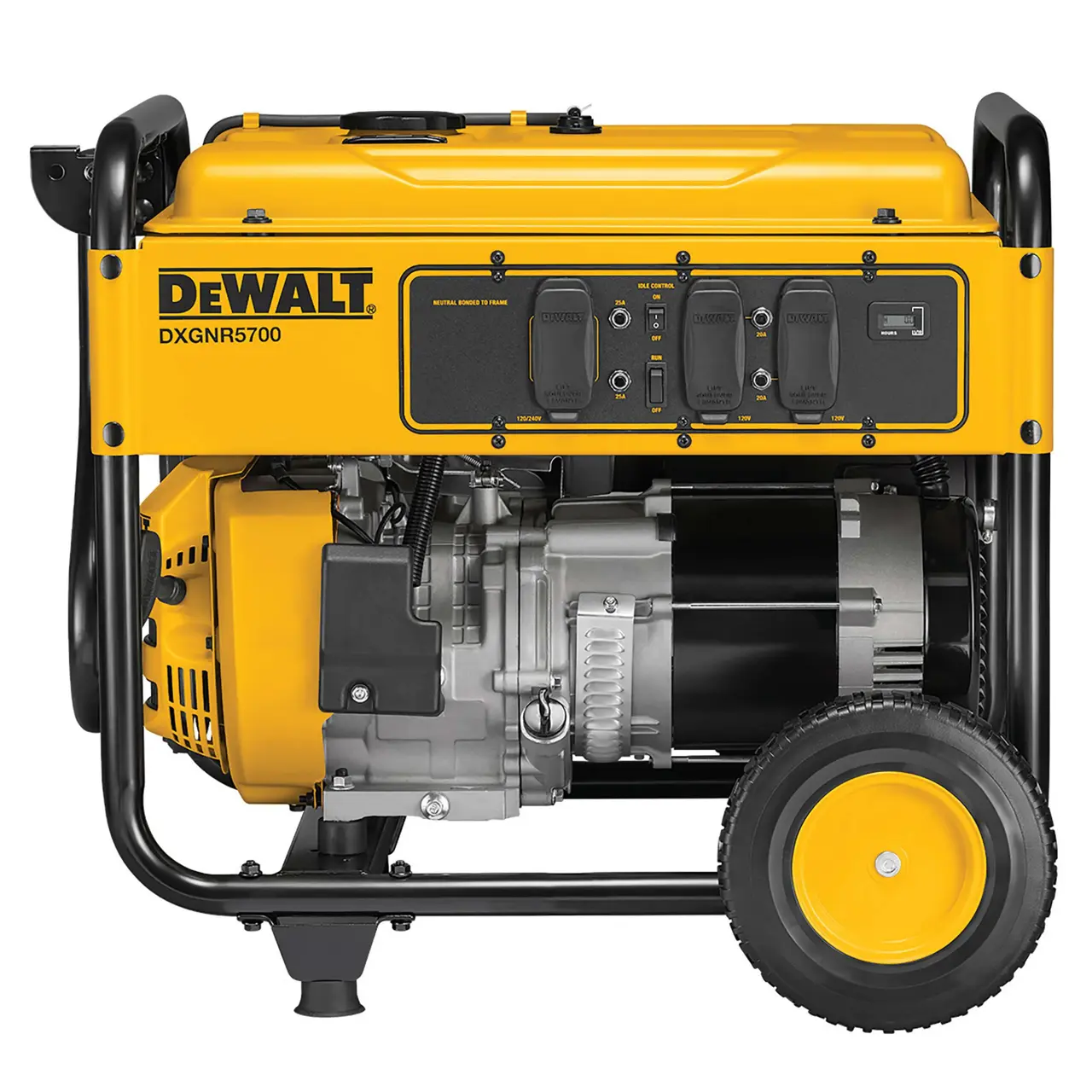

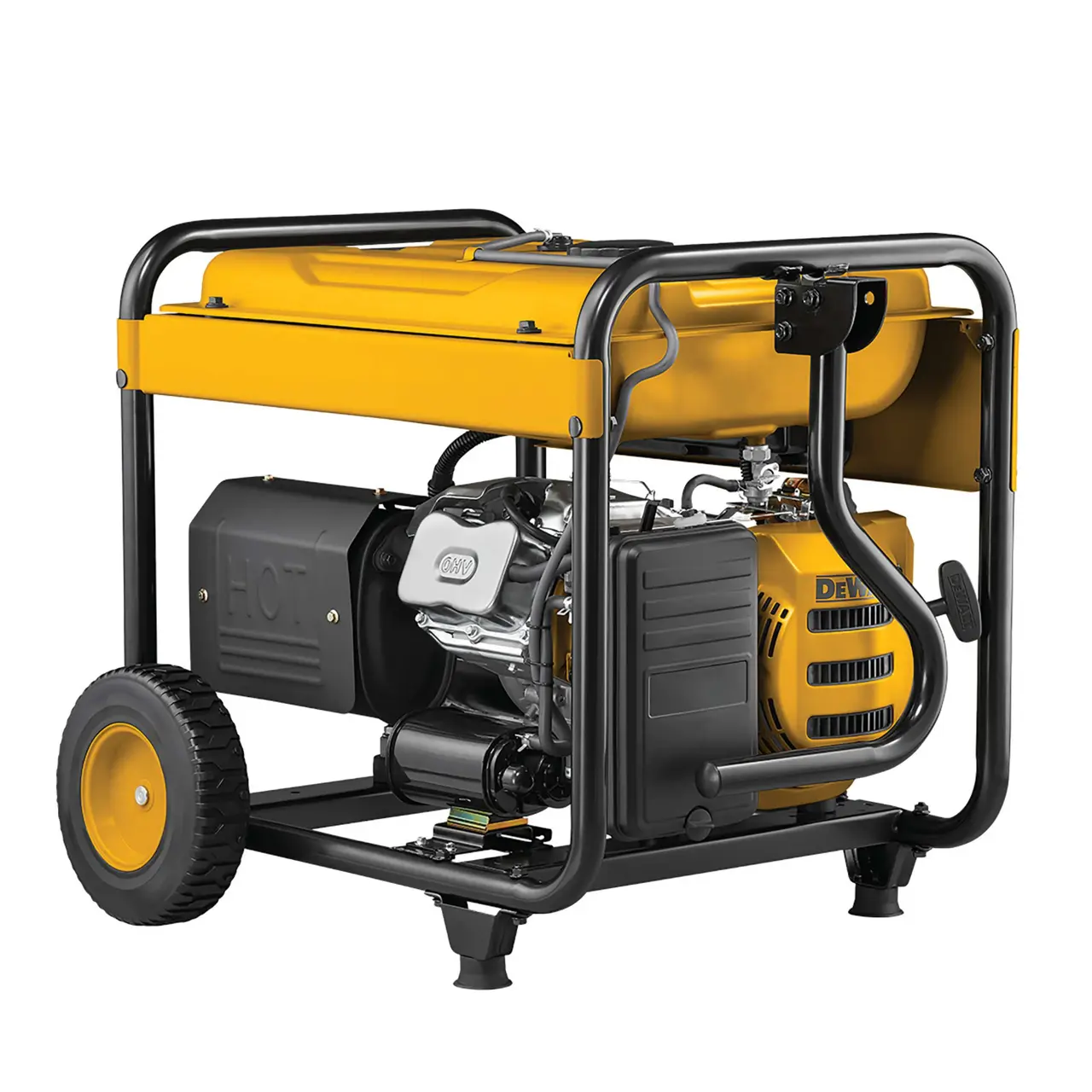

Official product gallery
Three manufacturer views for every model.
These DEWALT images show the generator, control panel, frame, wheels, handle, and connection layout from multiple angles.
Complete specifications
Product-page facts plus manual detail.
DEWALT’s current U.S. product page provides the overview, feature list, and gallery. Official manuals supply the detailed electrical, engine, runtime, and physical ratings where available.
Manufacturer overview
The DXGNR5700 is designed for professional use around a premium 389cc DEWALT engine with electric start and low-oil shutdown. Idle control conserves fuel and reduces jobsite noise, while GFCI-protected outlets, never-flat wheels, and a hardened steel tube frame support demanding work environments.
Electrical output
- Rated / surge power
- 5.7 kW / 7.125 kW
- Voltage / frequency
- 120/240V AC / 60 Hz at 3,600 RPM
- Rated current
- 23.75A at 240V / 47.5A at 120V
- Phase
- Single phase
Engine, fuel & runtime
- Engine displacement
- 389cc
- Fuel tank
- 6.7 gallons
- Runtime
- 10.5 hours at 50% load
- Operating controls
- Electric start, recoil backup, idle control, hour meter
Physical & connection details
- Dimensions
- 27.25 × 27.4 × 28.5 in
- Unit weight
- 163 lb
- Outlets
- (2) 120V 20A GFCI duplex; (1) 120/240V 30A L14-30R
- Protection
- Low-oil shutdown, covered outlets, circuit breakers
Official feature details
Premium 389cc engine
Provides long-life power for demanding commercial applications.
Idle control
Conserves fuel and reduces noise when full output is not required.
Commercial control panel
GFCI-protected, covered outlets support jobsite compliance and rugged use.
Jobsite frame and wheels
A hardened 1 1/4-inch tube cradle and never-flat wheels add strength and mobility.
Best-fit uses
- Commercial jobsites
- High-draw tools
- Home essentials
- Event power
Standout features
- Idle control
- Electric start
- GFCI-protected outlets
- Never-flat wheels
Compare it with your actual load.
Run your essentials through our independent wattage calculator before buying.
