DJI · Power station · Power 500

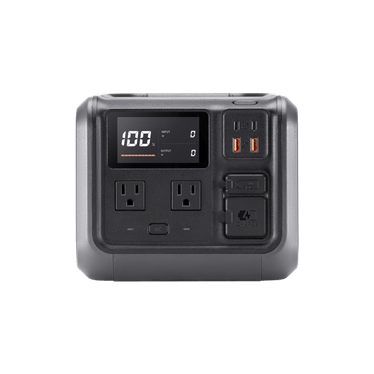

Power 500
Power 500 combines 512Wh of LFP storage with 1,000W rated output and up to 2,000W peak output.
1,000W rated512WhRechargeable LiFePO4 batteryListed available
Check DJI price Official listed price $499.00
Infographic gallery
Output, stored energy, charging, and portability.
1,000W rated output
Battery1,000W / 2,000W
The comparison uses DJI’s published rated and peak, surge, or maximum output figures.
Listed capacity
512Wh
Published runtime guidance
Runtime varies with connected load and operating conditions
16.1 lb (Approx. 7.3 kg)
Listed weight
305×207×177 mm (L×W×H)
Dimensions
- Battery or engine
- LiFePO4 battery and pure sine-wave inverter
- Warranty
- See the official manufacturer warranty
Charging or integration
AC, vehicle, and compatible solar charging
Backup transfer
UPS mode supported; see official model-specific transfer-time guidance
Noise
Ultra-quiet battery operation; charging noise varies by mode
Official product gallery
Product views and factory feature graphics.
The current official image set for Power 500 includes product views, connection diagrams, feature explanations, and compatible system configurations where DJI publishes them.
Complete specifications
The complete factory data available for comparison.
These pages retain DJI's model-specific output, charging, battery, port, continuity, dimensions, environmental, engine, fuel, app-control, and warranty fields where published.
Follow charging, storage, and installation guidance. Whole-home connections and transfer equipment should be installed according to DJI instructions and applicable electrical codes.
Comparison summary
- Battery output
- 1,000W rated / 2,000W peak, surge, or starting
- Stored energy
- 512Wh
- Energy source
- Rechargeable LiFePO4 battery
- Dimensions
- 305×207×177 mm (L×W×H)
- Listed weight
- 16.1 lb (Approx. 7.3 kg)
- Price and availability
- $499.00 official listed price; available from DJI
Factory output & connection specifications
- Battery capacity
- 512Wh
- AC output
- 1,000W rated / 2,000W peak
- Capacity
- 512 Wh
- Number of Ports
- AC Output × 2. USB-C × 2. USB-A × 2. SDC Lite × 1. AC Input × 1
- AC Output
- DYM500L: AC 100-120 V, 50/60 Hz, max continuous output: 1000 W. DYM500H: AC 220-240 V, 50/60 Hz, max continuous output: 1000 W. . Max continuous output power is available when the product's battery level is above 20%. AC output data varies by country and region.
- AC Output (Bypass Mode)
- DYM500L: AC 100-120 V, max 1000 W. DYM500H: AC 220-240 V, max 1000 W
- USB-A Output
- 5 V, 3 A. 9 V, 2 A. 12 V, 2 A. Max output power per channel: 24 W
- USB–C Output
- 5 V, 5 A. 9 V, 5 A. 12 V, 5 A. 15 V, 5 A. 20 V, 5 A. Max output power per channel: 100 W (device being charged should support PD 3.0 protocol)
- SDC Lite Output
- SDC Lite: 9-27 V, max output power: 240 W
- AC Input
- DYM500L: AC 100-120 V, 540 W* (recharging), 1000 W (Bypass mode). DYM500H: AC 220-240 V, 540 W* (recharging), 1000 W (Bypass mode). . * To achieve the maximum grid recharging power of 540 W, the battery level of the power station must be at least 60%, and the ambient temperature should be between 20° to 35° C (68° to 95° F).
- SDC Lite Input
- DC 22.4-29.2 V, max 300 W, 10 A
- USB–C Input
- DC 5-20 V, max 100 W (the charger should support PD 3.0 protocol). Supports simultaneous power input with two USB-C ports at a max 200 W.
- Power Supply Temperature
- -10° to 45° C (14° to 113° F)
Factory charging & battery specifications
- Cell Chemistry
- LFP (lithium ferrophosphate)
- Cycle Life
- Maintains over 70% capacity after 4000 cycles. . Measured at 25℃/77°F room temperature, being recharged in the 270W Standard Recharge Mode, and at an output power of 500 W.
- Recharging Temperature
- 0° to 45° C (32° to 113° F)
Factory dimensions & operating specifications
- Net Weight
- Approx. 7.3 kg
- Dimensions
- 305×207×177 mm (L×W×H)
- Storage Temperature
- -10° to 45° C (14° to 113° F)
Additional factory specifications
- Model
- DYM500L/DYM500H
- Max Operating Altitude
- 3000 m
Official feature details
System capability
Power 500 combines 512Wh of LFP storage with 1,000W rated output and up to 2,000W peak output.
Power delivery
AC Output × 2. USB-C × 2. USB-A × 2. SDC Lite × 1. AC Input × 1
Charging and fueling
LFP (lithium ferrophosphate)
Battery and durability
Maintains over 70% capacity after 4000 cycles. . Measured at 25℃/77°F room temperature, being recharged in the 270W Standard Recharge Mode, and at an output power of 500 W.
Safety and controls
DYM500L: AC 100-120 V, 540 W* (recharging), 1000 W (Bypass mode). DYM500H: AC 220-240 V, 540 W* (recharging), 1000 W (Bypass mode). . * To achieve the maximum grid recharging power of 540 W, the battery level of the power station must be at least 60%, and the ambient temperature should be between 20° to 35° C (68° to 95° F).
Best-fit uses
- Camping and travel
- Mobile electronics
- Light emergency power
Standout features
- 1,000W maximum rated output
- 2,000W maximum peak, surge, or starting output
- 512Wh listed capacity
- Power station
Match capacity and output to your actual loads.
Use the independent calculator before choosing a battery system or generator.
Starter Fit Score
70/ 100
Good fit
For a 3,000W target and a $1,500 budget.
Below your running-watt target
Why it scored this way
A score you can inspect and change.
This personal score is separate from the model’s class score. It measures fit against your priorities and gives neutral partial credit when price or noise data is missing.
Budget fit
20/20$499 is within your budget.
Fuel fit
15/15Rechargeable LiFePO4 battery works with your flexible fuel preference.
Portability
10/1016.1 lb against your medium portability priority.
Noise fit
10/10Battery operation strongly matches your quietness preference.
Use-case fit
5.5/10Home-backup fit rewards adequate output and fuel flexibility.
Find My Generator score
47/ 100
Best for specific needs
Compared with 97 compact power stations in the current catalog.
Power45
Running and peak output versus the class
Endurance32
Stored energy versus the class
Portability63
Lower weight scores higher
Fuel flexibility85
Rechargeable, indoor-safe operation
Value19
Output or stored energy per listed dollar
Class comparison
See what each spec really means.
A number is more useful with context. Each row shows this model beside its class median and translates the difference into a percentile.
SpecificationThis modelClass medianClass standing
Running output
Higher than 45% of its class
This model · 1,000W
Median · 1,350W
Higher than 45% of its class
Peak output
Higher than 45% of its class
This model · 2,000W
Median · 2,400W
Higher than 45% of its class
Stored energy
Higher than 32% of its class
This model · 512Wh
Median · 1,008Wh
Higher than 32% of its class
Product weight
Lighter than 63% of its class
This model · 16.1 lb
Median · 24.9 lb
Lighter than 63% of its class
How the score works: Scores use published specs and are relative to comparable products in this catalog. Missing specs are excluded and remaining weights are normalized. Runtime is the longest manufacturer-published figure and may use a different load or fuel than another model.
Ownership resources
Accessories, manuals, and documents.
Start with the exact DJI Power 500 model or item number. Accessory families can look alike while using different connectors, electrical limits, engines, or mounting points.
Compatible accessories
Match by model and connection.
Verify exact fit
Solar charging equipment
Shop DJI solar panels, charging leads, and adapters intended for its portable-power ecosystem.
Match the connector, solar input voltage, current limit, and maximum input published for Power 500.
View official accessory optionsVerify exact fit
Charging cables and adapters
Find vehicle, wall, USB, and model-specific charging accessories from DJI.
Confirm the exact input port and electrical limits for Power 500 before ordering.
View official accessory optionsVerify exact fit
Case, cart, or protective cover
Protective and mobility accessories can make storage and transport easier.
Check the listed dimensions and model fit for Power 500; do not block cooling inlets or exhaust fans during operation.
View official accessory optionsManuals & PDFs
Official product materials.
Compatibility note: Links lead to manufacturer or official retailer resources. Confirm the full model or item number, connector type, voltage, amperage, and published compatibility list before buying. Installation involving a home panel, inlet, transfer switch, or fuel plumbing should be handled as required by local code.
